Specifications
concentrating table machine1.Compact structure
2.High separating efficiency
3.Easy operation
4.CE&ISO

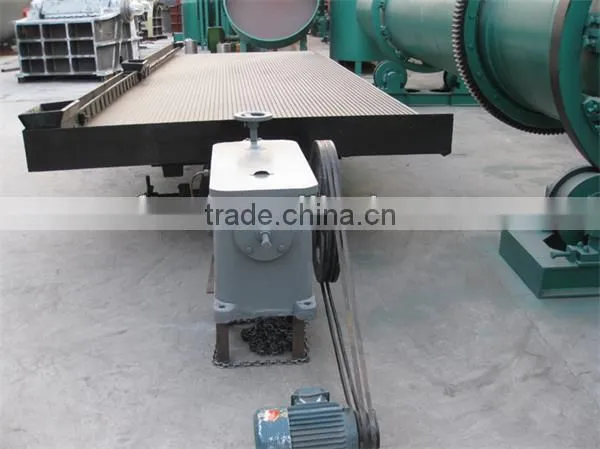

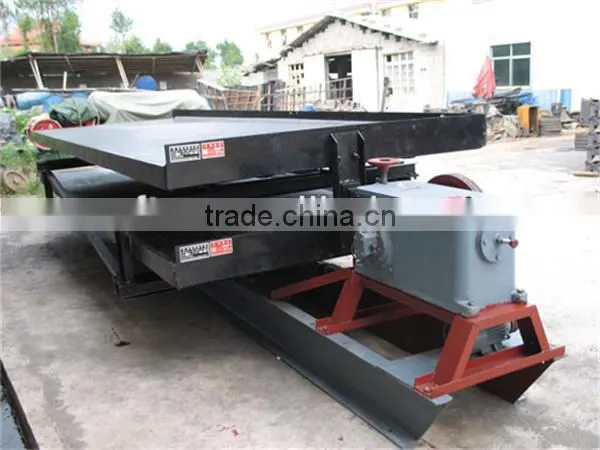

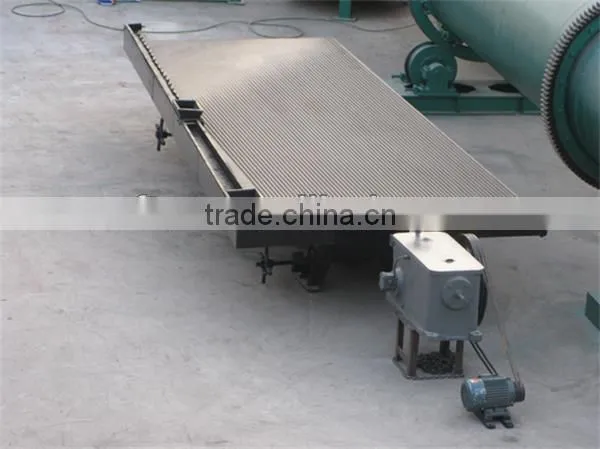

Metal ore gravity concentrating table machine
Introduction of Metal ore gravity concentrating table machine
Concentrator table is a gravity dressing machine used for separating fine particles such as tin, tungsten, gold and silver, lead, zinc, tantalum, niobium, iron, manganese, titanium, ferrotitanium and coal. Our company has a long history in the production of concentrator table and we constantly make innovations and develop concentrator table with singlecurvelet bed on the basis of the original concentrator table with vertical bed to the concentrator table with doublecurvelet bed, thus greatly improving the processing capacity and concentration ratio of the concentrator table.
Working principle of Metal ore gravity concentrating table machine
Concentrator table beneficiation refers to that on a slant table, relying on the combined effect of the reciprocating asymmetry motion of the mechanical slabstone and the lamella slant water flow, different proportion and granularity mineral grains along the direction of movement, become loose, layered and zoned on the table forming a fanshaped shed, thus separating the minerals based on density,finally is divided to concentrate, middlings and tailings.
Features and Advantages of Metal ore gravity concentrating table machine
Concentrator table has high rich ore ratio, high classification efficiency, safeguards easily, easy to adjust stroke. When change cross fall and stroke can still maintain the surface of bed movement balance, the spring is arranged in the box body, compact structure, and can obtain the final ore concentrate and the final tailings.
Technical Data of Metal ore gravity concentrating table machine

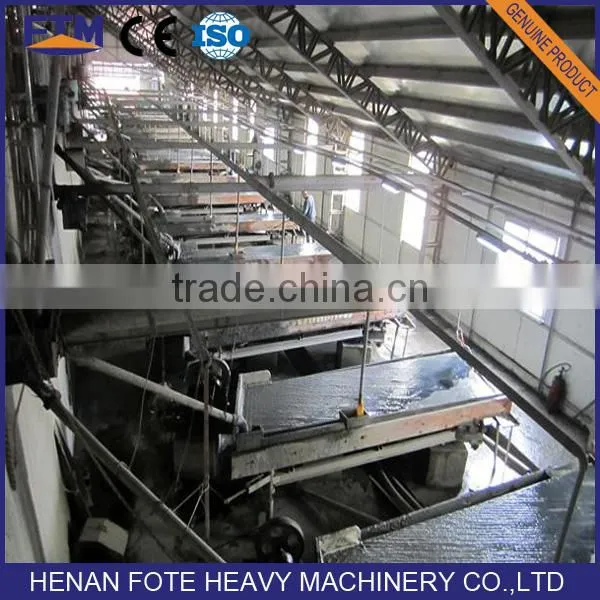

Processing Line of Metal ore gravity concentrating table machine
Our service
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Company Profile
Henan Fote Heavy Machinery Co., Ltd covers an area of 100,000 square meters which includes 60,000 square meters of heavy duty workshops. We have more than 200 sets of large and medium sized metal processing equipments. The Maximum lifting capacity is 300 tons.
