Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Good Quality Mineral Processing Flotation Cell

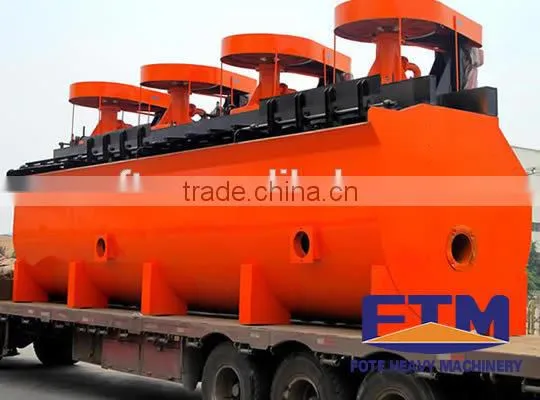

Good Quality Mineral Processing Flotation Cell

Name: Good Quality Mineral Processing Flotation Cell
Brand: Fote
SKU: 138870957

Good Quality Mineral Processing Flotation Cell thumbnail-1

Good Quality Mineral Processing Flotation Cell photo-1

US$ 714 - 4,833 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Flotation Separator

Production Capacity:

0.2-8m3/min

Contact Supplier Request Quote Chat Now

Henan Fote Heavy Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qngdao port or Lian Yungang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Flotation Separator

Production Capacity 0.2-8m3/min

Place of Origin Henan, China

Brand Name Fote

Model Number SF series

Voltage 380V

Power(W) according to models

Dimension(L*W*H) refer to specification

Weight 468-4486 kg

Certification CE, ISO, CCC

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

mineral processing flotation cell
1. good quality
2. competitive price
3. easy to operate
4. simple structure

Mineral processing flotation cell

1. Introduction

Flotation cells equipment is applicable for the extraction of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum and the separation of ferrous metals and non-metals. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral absorbs on bubbles, floats on the surface of slurry and then is scraped out, other minerals still stay.

2. Working principles

Flotation cell equipment is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electro motor.

When the flotation cells equipment works

1) The impeller of the flotation cells is driven by the spinning engine triangle to form the centrifugal formation and produce the negative pressure.

2) On one hand, large of inhaled air is mixed with the pulp;

3) On the other hand, the stirred pulp is mixed with the drug to fine the bubble, to make a certain mineral bond on the bubble. Adjust the height of the disc to control the liquid surface and the useful bubble will be scraped out.

3. Advantages

1) Excellent air-absorption capacity;

2) Low energy consumption;

3) Optimized design, the mineral slurry loops reasonably in cells without any auxiliary equipment;

4) Self-control functions;

5) Special designed impeller can produce upper and lower circulation of mineral slurry respectively.

4. Technical data

Model		SF0.37	SF0.7	SF1.2	SF2.8	SF4	SF8
Trough capacity(m³)		0.37	0.7	1.2	2.8	4	8
Impeller diameter(mm)		300	350	450	550	650	T60
Production capacity (m³/min)		0.2-0.4	0.3-0.9	0.6-1.2	1.5-3.5	0.5-4	4-8
Impeller rotation speed (r/min)		352	400	312	268	238	191
Motor	Model	Y90L-4	Y100L2-4	Y132M2-6	Y160L-6	Y180L-6	Y250M-8
		Y90S-4	Y90S-4	Y90S-4	Y90S-4	Y90L-4	Y100L-6
	Power (kw)	1.5	3	5.5	11	15	30
		1.1	1.1	1.1	1.1	1.5	1.5
Dimensions (mm)		700×700×750	900×820×950	1100×1100×1100	1700×1600×1150	1850×2050×1200	2200×2900×1400
Single trough weight(kg)		468	600	1373	2338	2660	4486

5. Our services

Sales service: Fote Machinery completes equipment inspection with customers, and assists construction scheme and detailed process for customers.

Aftersales service: Fote Machinery sends technical personnel to the scene for guiding equipment installation, debugging and training operators.

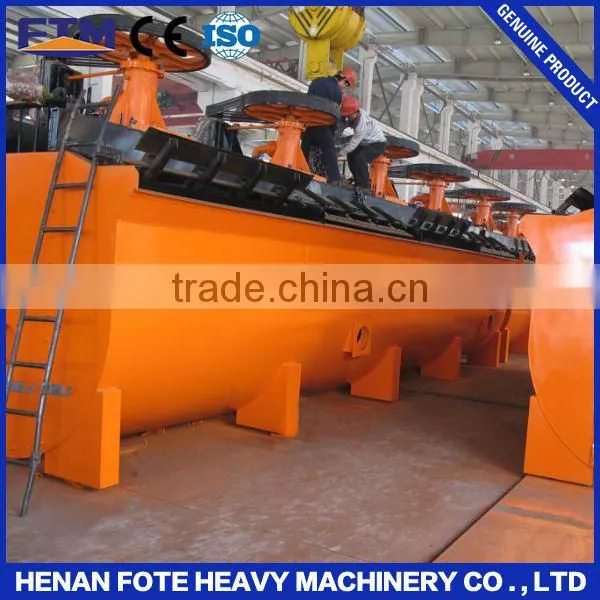

Company production capacity

Company Information

Henan Fote Machinery Co., Ltd is a large-sized company specialized in manufacturing mining machinery and general machinery. We have been engaged in machinery manufacturing for over 20 years.
