Help CenterHot Sale Mining Flotaion Cell Separator in Copper Ore Plant
Related Products
-
High Efficiency Froth Flotation Separator for Copper Silver Gold OreUS$ 500 - 4,833MOQ: 1 Set -
Hot Sale Copper Ore Floatation CellUS$ 500 - 48,330MOQ: 1 Set
-
Hot Sale Forth Flotation CellUS$ 500 - 48,330MOQ: 1 Set
-
Good Quality Flotation TankUS$ 500 - 48,330MOQ: 1 Set
-
Good Quality Gold Floatation MachineUS$ 714 - 48,330MOQ: 1 Set
Specifications
mining flotaion cell separator in copper ore plant1. good quality
2. competitive price
3. easy to operate
4. simple structu

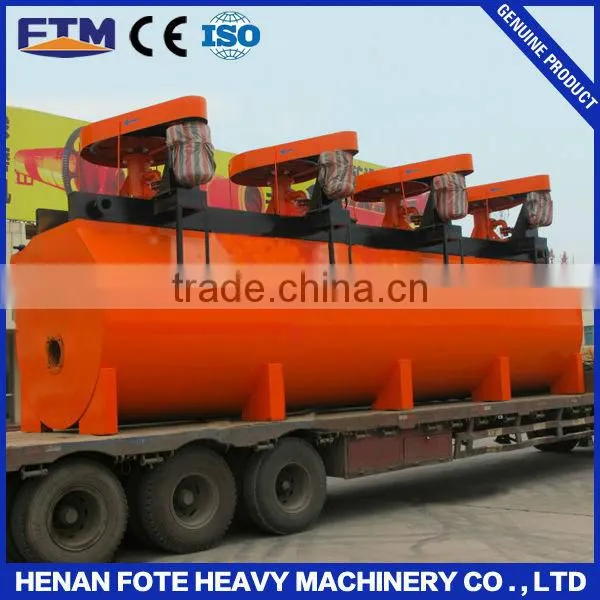

Hot sale mining flotaion cell separator in copper ore plant
1. Introduction of flotation cell separator
Flotation cell machine is applicable for the extraction of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and aluminum and the separation of ferrous metals and non-metals. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral absorbs on bubbles, floats on the surface of slurry and then is scraped out, other minerals still stay.
2. Working principles of flotation cell separator
Flotation cell machine is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electro motor.
When the flotation cell machine works
1) The impeller of the flotation cells is driven by the spinning engine triangle to form the centrifugal formation and produce the negative pressure.
2) On one hand, large of inhaled air is mixed with the pulp;
3) On the other hand, the stirred pulp is mixed with the drug to fine the bubble, to make a certain mineral bond on the bubble. Adjust the height of the disc to control the liquid surface and the useful bubble will be scraped out.
3. Advantages of flotation cell separator
1) Excellent air-absorption capacity;
2) Low energy consumption;
3) Optimized design, the mineral slurry loops reasonably in cells without any auxiliary equipment;
4) Self-control functions;
5) Special designed impeller can produce upper and lower circulation of mineral slurry respectively.
4. Technical data of flotation cell separator
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
Trough capacity(m³) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
|
Impeller diameter(mm) |
300 |
350 |
450 |
550 |
650 |
T60 |
|
Production capacity (m³/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
|
Impeller rotation speed (r/min) |
352 |
400 |
312 |
268 |
238 |
191 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y250M-8 |
|
|
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y100L-6 |
|
Power (kw) |
1.5 |
3 |
5.5 |
11 |
15 |
30 |
|
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
|
Dimensions (mm) |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
2200×2900×1400 |
|
Single trough weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
4486 |
|
5. Our services
Sales service: Fote Machinery completes equipment inspection with customers, and assists
construction scheme and detailed process for customers.
Aftersales service: Fote Machinery sends technical personnel to the scene for guiding equipment installation, debugging
and training operators.
6. FAQ
1) What guarantee do you provide?
If the quality is not consistent with the description as we said or promised before you place order, we promise you 100% refund.
2) How about price?
We have our own factory and can give you the lowest price, besides, we have a policy that " for saving time and absolutely honest business attitude, we quote as low as possible, discount can be given according to quantity"

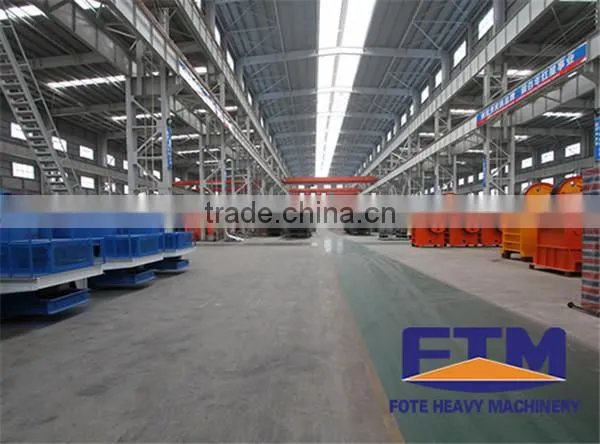

Company production capacity
Company Information
Henan Fote Machinery Co., Ltd is a large-sized company specialized in manufacturing mining machinery and general machinery. We have been engaged in machinery manufacturing for over 20 years.
