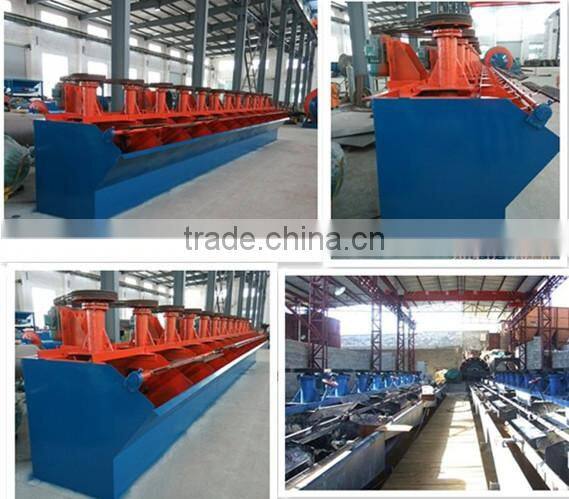

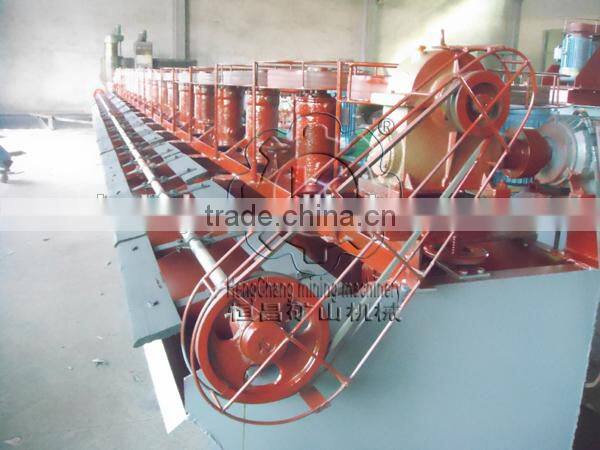

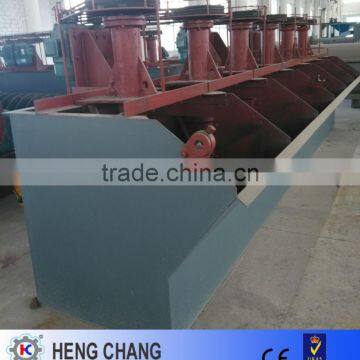

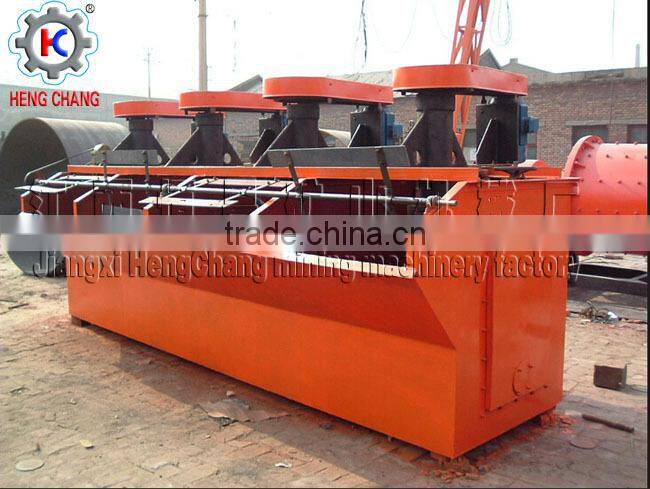

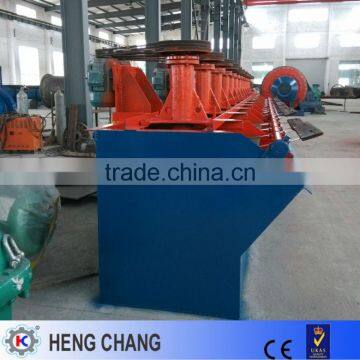

Gold ore mining processing equipment
1.Description of gold ore mining processing equipment
2.Features of gold ore mining processing equipment
1.Excellent air-absorption capacity
2.Low energy consumption
3.Optimized design, the mineral slurry loops reasonably in cells without auxiliary equipment
4.Self-control functions
5.Special designed impeller which can produce upper ans lower circulation of mineral slurry respectively.
3.Main Technical Parameters of Model SF gold ore mining processing equipment
Model of gold flotation machine |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
|
Tank Volume |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
|
Impeller Dia |
300 |
350 |
450 |
550 |
650 |
|
Capacity |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
|
Impeller Rotate Speed |
352 |
400 |
312 |
268 |
238 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power |
1.5 |
3 |
5.5 |
11 |
15 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Overall Dimension |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
|
Unit Weight |
468 |
600 |
1373 |
2338 |
2660
|
|
Main Technical Parameters of XJK Series gold ore mining processing equipment
Model of gold flotation machine |
XJK-0.35(3A) |
XJK-0.62(4A) |
XJK-1.1(5A) |
XJK-2.8(6A) |
XJK-5.8(7A) |
||
Effective Volume(m3) |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
||
Capacity(m3/min) |
0.18~0.4 |
0.3~0.9 |
0.6~1.6 |
1.5~3.5 |
3~7 |
||
Rotate Speed(r/min) |
470 |
400 |
330 |
280 |
240 |
||
Impeller Dia (mm) |
300 |
350 |
500 |
600 |
750 |
||
Motor |
Model |
Rotator |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y200L2-6(Y225M-6) |
Scraper |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(Kw) |
Impeller Motor |
1.5 |
3 |
5.5 |
11 |
22(30) |
|
Scraper Motor |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Weight(t/Single Tank) |
0.43 |
0.86 |
1.38 |
2.33 |
3.533 |
||

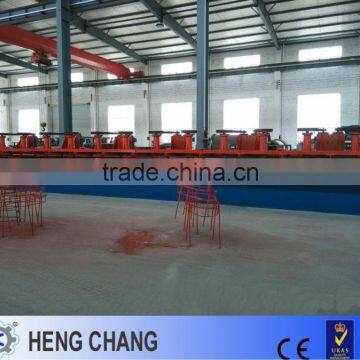

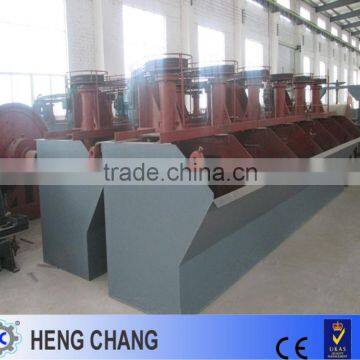

Flotation Machine In Workshop
About Us
Our company was established in 1995,the registered capital of 1000000,more than 100 staff,research engineer 18 people,technical workers 60,after sale service team of more than
People ,has advanced machine tool equipment,testing equipment,the company covers an area of 20000 square and won several awards for businedd excellence,it is county of key enterprises,the company many times by as the contract and trustworthy enterprise ,after sale service advanced unit,is the metallurgical industry backbone enterprises od processing machinery.
Our New Factory
Our Honour:
FAQ
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide mineral processing flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.
