Galena lead ore flotation machine Flow Chart

The Galena lead ore flotation machine is the latest design to use the circular tank concept and combines the   benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize floatation performance for all roughing, cleaning and scavenging duties. The machine can be used to separate nonferrous metal,ferrous metal,noble metal, nonmetallic mine,chemical material and recycle mine.

Detailed Product Description

Galena lead ore flotation machine is widely used for roughing, concentrating and recovering flotation of nonferrous metals that include copper, lead, zinc, nickel and molybdenum, ferrous metal, It can also be used for separating nonmetallic minerals, like coal and fluorite.

XJK series of Galena lead ore flotation machine can effectively make the low-grade ores become high-grade concentrates, especially for disseminated, complex ores,dealing with them can get better separation efficiency.

Galena lead ore flotation machine Features:

1. large air-absorption capacity
2. low energy consumption
3. less reagents consumption
4. easy to maintenance and can be designed according to the users.
5. Every cell owns three functions: air absorption, slurry absorption, and flotation separation,and the cells form a flotation separation loop by itself without any auxiliary equipment, and is allocated horizontally,which favors the change of flow.
6. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.

Structure and working principle

XJK series of Galena lead ore flotation machine consists of flotation cells,impeller,belt pulley,inlet pipe, strobe,covering plate,standpipe,draw bar,etc.

When the Galena lead ore flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed.The liquid surface can be adjusted with the height of adjustment flash board, so that the useful foams are scraped with squeegee.

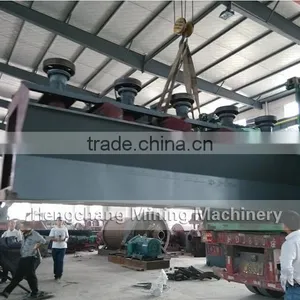

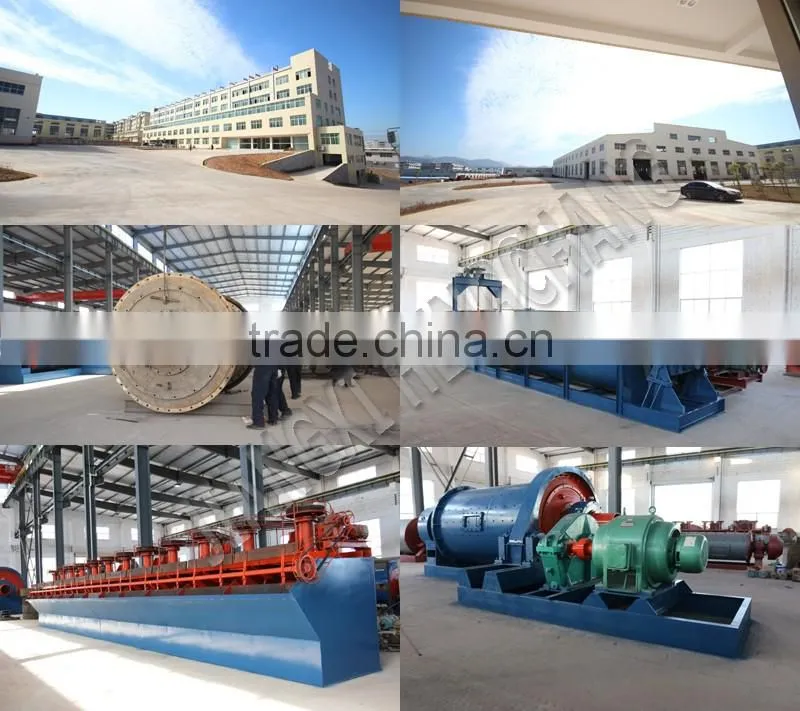

Our Factory View

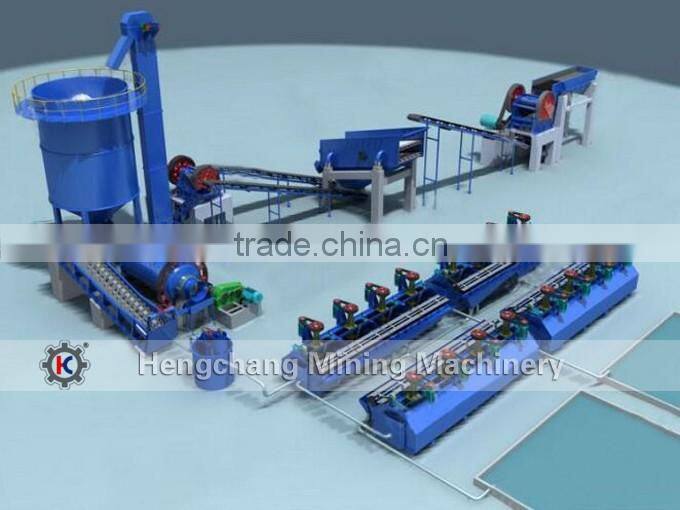

Galena lead ore flotation machine Flow Chart for reference

we are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,

1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?
