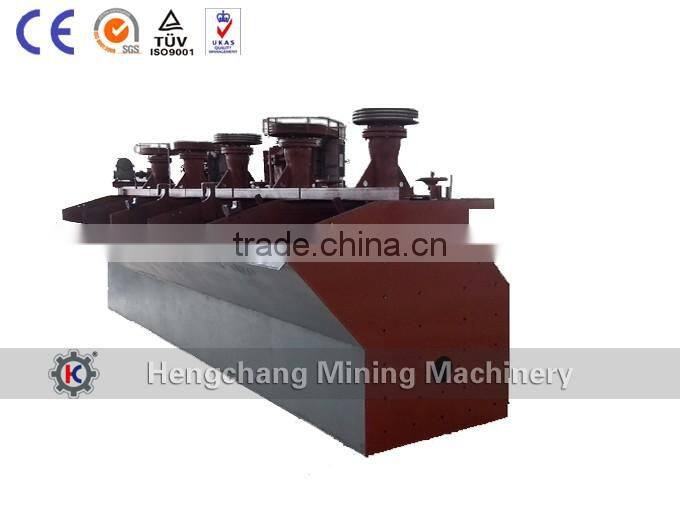

Energy saving mineral processing Froth gold flotation machine
1.Description of gold flotation machine
2. Features of gold flotation machine
1.Excellent air-absorption capacity
2.Low energy consumption
3.Optimized design, the mineral slurry loops reasonably in cells without auxiliary equipment
4.Self-control functions
5.Special designed impeller which can produce upper ans lower circulation of mineral slurry respectively.
3. Main Technical Parameters of Model SF gold flotation machine
Model of gold flotation machine |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
|
Tank Volume |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
|
Impeller Dia |
300 |
350 |
450 |
550 |
650 |
|
Capacity |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
|
Impeller Rotate Speed |
352 |
400 |
312 |
268 |
238 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power |
1.5 |
3 |
5.5 |
11 |
15 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Overall Dimension |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
|
Unit Weight |
468 |
600 |
1373 |
2338 |
2660
|
|
Main Technical Parameters of XJK Series gold flotation machine
Model of gold flotation machine |
XJK-0.35(3A) |
XJK-0.62(4A) |
XJK-1.1(5A) |
XJK-2.8(6A) |
XJK-5.8(7A) |
||
Effective Volume(m3) |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
||
Capacity(m3/min) |
0.18~0.4 |
0.3~0.9 |
0.6~1.6 |
1.5~3.5 |
3~7 |
||
Rotate Speed(r/min) |
470 |
400 |
330 |
280 |
240 |
||
Impeller Dia (mm) |
300 |
350 |
500 |
600 |
750 |
||
Motor |
Model |
Rotator |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y200L2-6(Y225M-6) |
Scraper |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(Kw) |
Impeller Motor |
1.5 |
3 |
5.5 |
11 |
22(30) |
|
Scraper Motor |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Weight(t/Single Tank) |
0.43 |
0.86 |
1.38 |
2.33 |
3.533 |
||

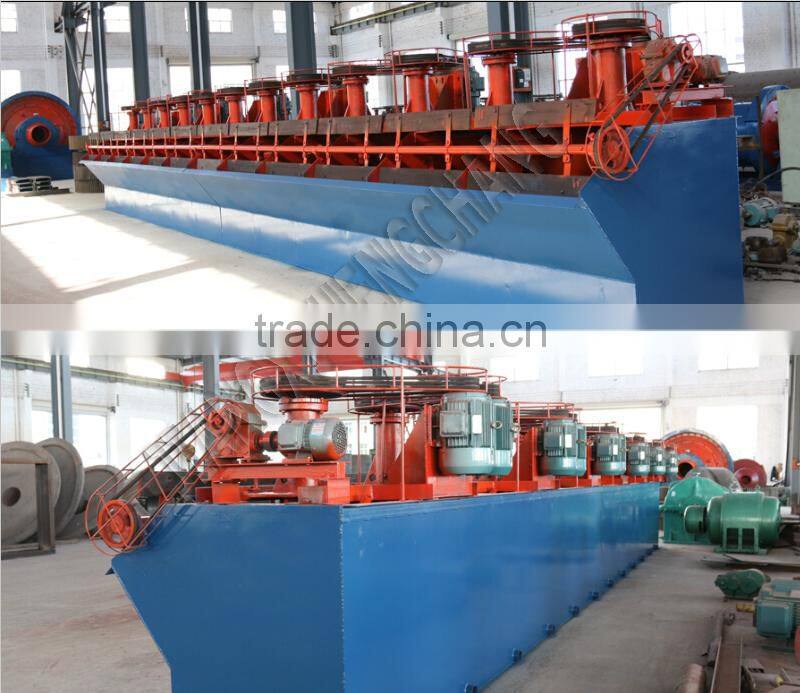

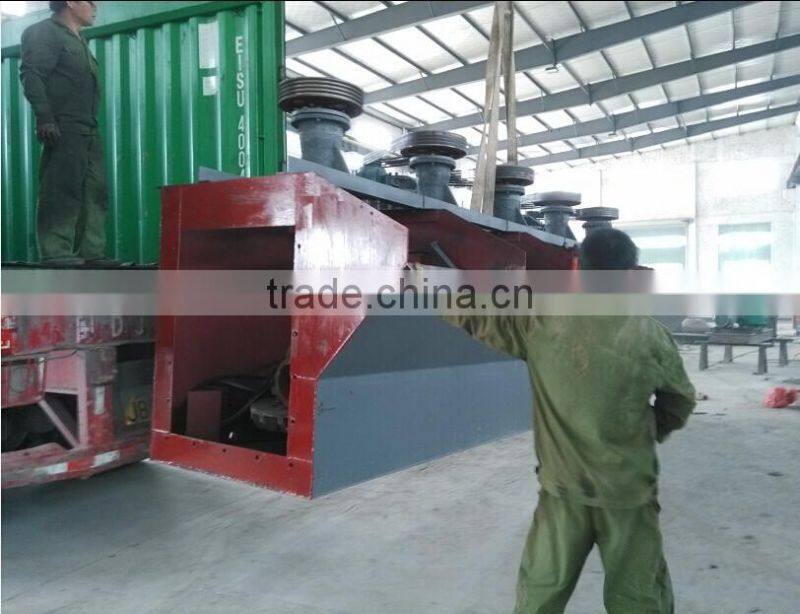

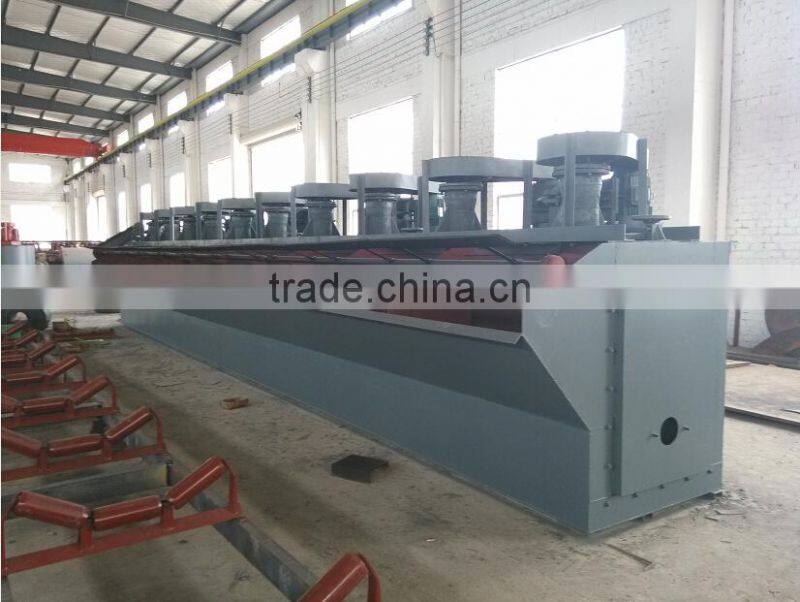

Flotation Machine In Workshop

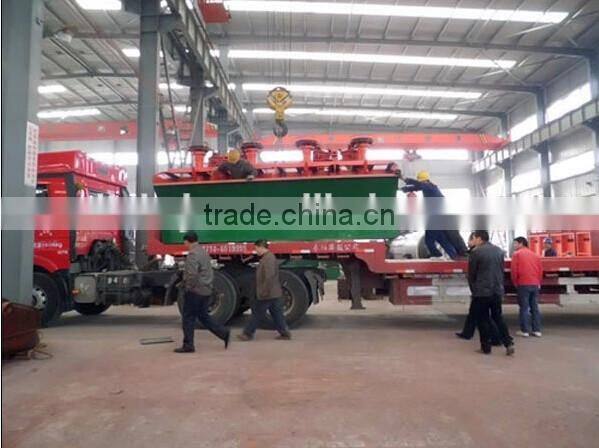

Our Factory View
Our Honour:
we are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?
Request for Quotation
Of course, free live-chat is available and you can get help immediately.Or you can send me email .
You can get the price list and we will contact you within one business day.
