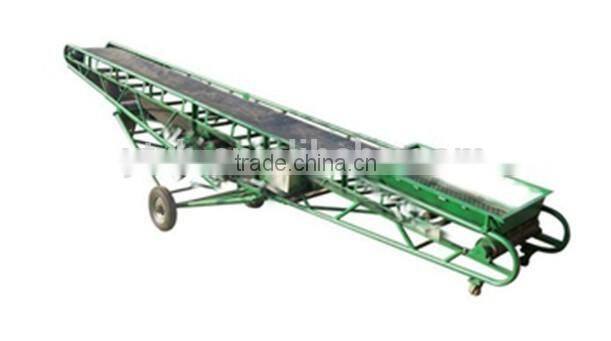

High Quality PY Movable Belt Conveyer
US$ 1,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vibrating Conveyor
Material:
Other, Carbon steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ISO 9001 & CE Certified Air Cushion Belt ConveyorUS$ 1,000 - 500,000MOQ: 1 Set -
High Capacity Reversible Belt ConveyorUS$ 1,000 - 500,000MOQ: 1 Set
-
Belt Conveyor/reversible Belt Conveyor/belt Conveyor With HopperUS$ 1,000 - 50,000MOQ: 1 Set
-
High Frequency Screw ConveyorNegotiableMOQ: 1 Set
-
Bucket Elevator for Simple CrushingUS$ 1,000 - 500,000MOQ: 1 Set
Condition
New
Type
Vibrating Conveyor
Material
Other, Carbon steel
Material Feature
Heat Resistant
Structure
Belt Conveyor
Load Capacity
depends on the type
Place of Origin
Shandong, China
Brand Name
Xinhai
Model Number
PY
Voltage
depend on the model
Power(W)
depend on the model
Dimension(L*W*H)
depend on the model
Certification
ISO 9001, CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
belt conveyer1.Stable operation;safe and reliable
2.Long service life
3.low maintenance cost
4.low power consumption
High Quality PY Movable Belt Conveyer
Advantages
Product advantages
1.Stable operation; safe and reliable; low power consumption
2.Long service life; low maintenance cost
3.Easy to install; high work efficiency
Product Feature
PY mobile belt conveyor — Product feature
Compact structure; reliable performance; durable and economical; easy to transport
Application
PY mobile belt conveyor — Product application
It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder. The bulk density should be 0.5~2.5t/m2. It can be also used in conveying articles.
Work Principle
PY mobile belt conveyor — Product principle
Belt conveyor consists of two endpoint-rollers and a closed conveying belt that attached to it. The roller that drives the conveyor is called drive roller (transmission roller); the other one that only used for changing the direction of the conveyor is called redirection roller. The drive roller is drove by the reduce driver, and the conveyor is drove by the friction that produced by the roller and conveyor. The drive roller is installed at the discharging end, in order to increase the traction force and easy to drive. The materials come into the feed opening, then arrive at the conveyor, and discharged by the conveyor.
Technical Parameters
PY mobile belt conveyor — Technology parameter
| model | PY50 | PY50 | PY50 | PY80 | PY80 | PY65 | PY65 | PY65 |
| belt width (mm) | 500 | 500 | 500 | 800 | 800 | 650 | 650 | 650 |
| Belt speed (m/s) | 1.2 | 1.2 | 1.2 | 1.6 | 1.6 | 1.2 | 1.2 | 1.2 |
| Max slope angle (°) | 19 | 19 | 19 | 20 | 7 | 19 | 19 | 19 |
| Conveying capacity (m3/h) | 80 | 80 | 80 | 262 | 296 | 135 | 135 | 135 |
| Conveying distance (m) | 10 | 15 | 20 | 15 | 20 | 10 | 15 | 20 |
| Max transportation height (m) | 3.73 | 5.44 | 7.09 | 5.1 | 2.4 | 3.73 | 5.44 | 7.09 |
| Min transportation height(m) | 0.5 | 1.27 | 1.27 | 2.9 | 0 | 0.5 | 1.27 | 1.27 |
| Motor model | Y100L2-4 | Y112M-4 | Y132S-4 | Y132M-4 | Y132M-4 | Y112M-4 | Y132S-4 | Y132M-4 |
| Motor power (kw) | 3 | 4 | 5.5 | 7.5 | 7.5 | 4 | 5.5 | 7.5 |
| weight (kg) | 847 | 1123 | 1540 | 2700 | 3100 | 1189 | 1950 | 2300 |
About Xinhai
Group Introduction
Xinhai Group founded in 1993 has grown into the industry group involving mineral processing, wearable rubber, mining investment and LFC Machinery after twenty years development. We have been always committed to providing customers with professional, perfect, efficient equipment and solutions. The whole solution we provide for you with the core of reliable & efficient mineral processing schemes and environmental-protection & energy-saving tailings dry stacking, makes us stand up in every EPC bid.
Our company has many other products for you reference as following:
1.Crushing Machinery
2.Grinding Machinery
3.Screening Machinery
4.Flotation Machinery
5.Magnetic Equipment
6.Thickening Equioment
7.Filtration Equipment
8.Gravity Separation Equipment
……
Warmly welcome to visit our factory and company any time you like it!
