Home > Products > Transportation Equipment > Belt Conveyor/reversible belt conveyor/belt conveyor with hopper

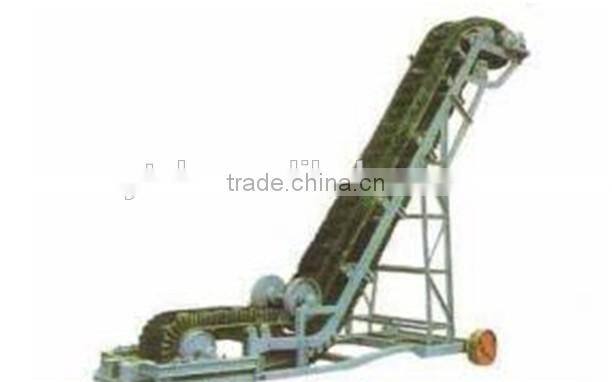

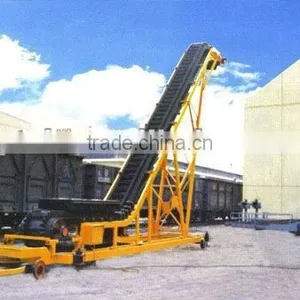

Belt Conveyor/reversible belt conveyor/belt conveyor with hopper

Name: Belt Conveyor/reversible belt conveyor/belt conveyor with hopper
Brand: Xinhai
Availability: InStock

FOB Price

US$ 1,000 - 50,000 / Set

1 Set(Min. Order)

Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, belt conveyor
Material	Other, Carbon steel	Material Feature	Oil Resistant
Structure	Belt Conveyor	Load Capacity	depends on the type
Place of Origin	Shandong, China	Brand Name	Xinhai
Model Number	DJ	Voltage	depend on the model
Power(W)	depend on the model	Dimension(LWH)	depend on the model
Certification	ISO 9001, CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Belt Conveyor
Large conveying capacity
Widely applied,long operating life
Convenient operation
high conveying efficiency

Belt Conveyor/reversible belt conveyor/belt conveyor with hopper

Advantages

Belt Conveyor—Product advantages

1.Large conveying capacity, high conveying efficiency

2.Reasonable price, reliable quality

3.Convenient operation

4.Widely applied

5.Long operating life

Product Feature

Belt conveyor— Product feature

Using corrugate belt instead of normal belt is the most distinguishing character of this conveyor. It has large conveying angle, and the conveying obliquity is 0° -90°, it takes mall area, saves the investment and civil charges.

Application

Belt conveyor— Product application

It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.

Work Principle

Belt conveyor — Product principle

Its structure and work principle are the same with general belt conveyor. Therefore, its main parts can be also used in general belt conveyor.

Technical Parameters

Belt conveyor — Technology parameter

item	Width of the belt (mm)	Height of guard side (mm)	Conveying inclination angel 30°	Conveying inclination angel 45°	Conveying inclination angel 60°	Conveying inclination angel 90°
model	Width of the belt (mm)	Height of guard side (mm)	Conveying amount(m³/h)	Conveying amount (m³/h)	Conveying amount (m³/h)	Conveying amount (m³/h)
DJ50-8	500	80	46	35	25	13
DJ50-12	500	120	71	57	40	21
DJ65-12	650	120	104	83	58	31
DJ65-16	650	160	120	97	69	37
DJ80-12	800	120	128	102	72	38
DJ80-16		160	157	127	90	48
DJ80-20		200	195	157	112	60
DJ80-24		240	235	195	142	76
DJ100-12	1000	120	172	137	96	51
DJ100-16		160	216	157	124	66
DJ100-20		200	267	216	153	82
DJ100-24		240	327	271	197	106
DJ120-16	1200	160	275	222	158	85
DJ120-20		200	331	267	190	102
DJ120-24		240	419	347	253	136
DJ120-30		300	466	384	278	149
DJ140-20	1400	200	395	318	226	121
DL140-24		240	500	414	302	162
DJ140-30		300	564	465	337	180
DJ140-40		400	794	680	524	281
