Specifications
Belt Conveyor1.Large conveying capacity
2.Convenient operation
3.Widely applied
4.Long service life

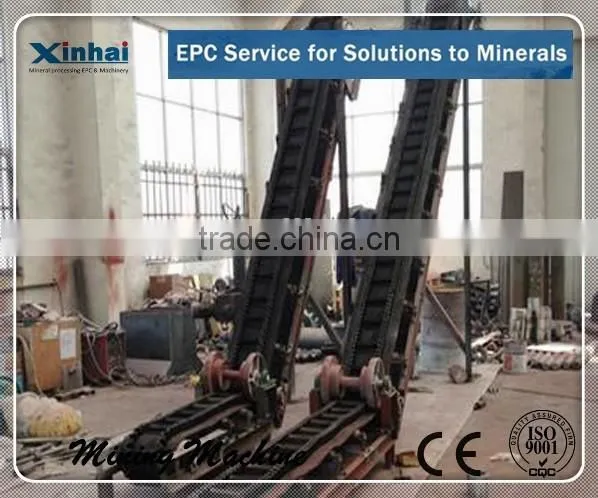

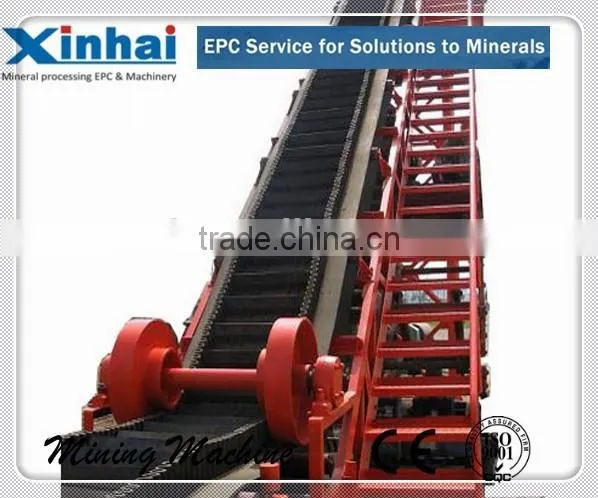

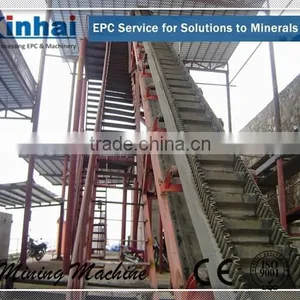

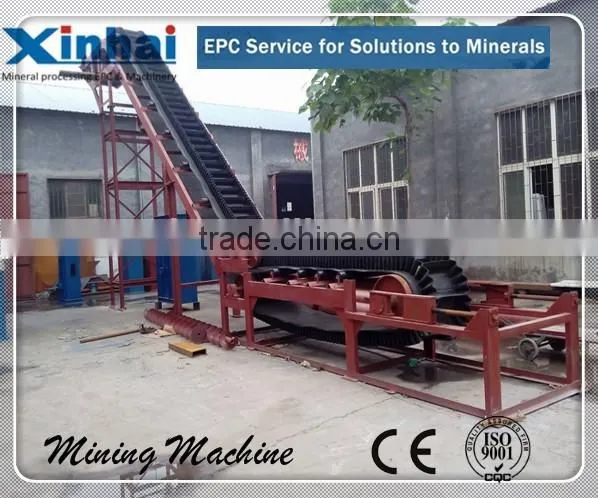

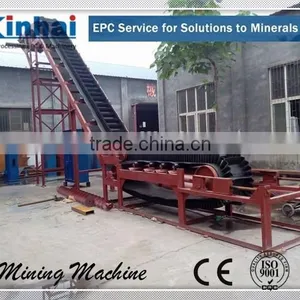

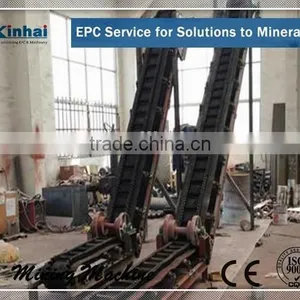

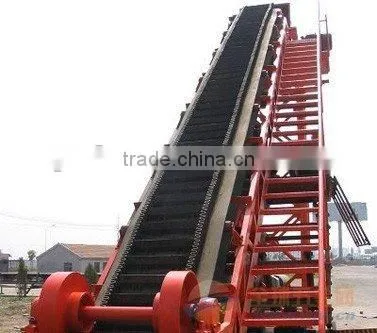

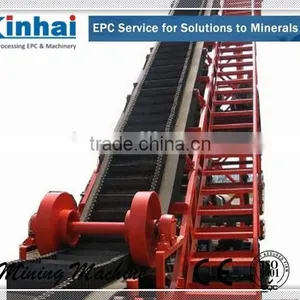

1.Belt Conveyor with high inclination angle and waved guard side
Product advantages
1.Large conveying capacity, high conveying efficiency
2.Reasonable price, reliable quality
3.Convenient operation
4.Widely applied
5.Long operating life

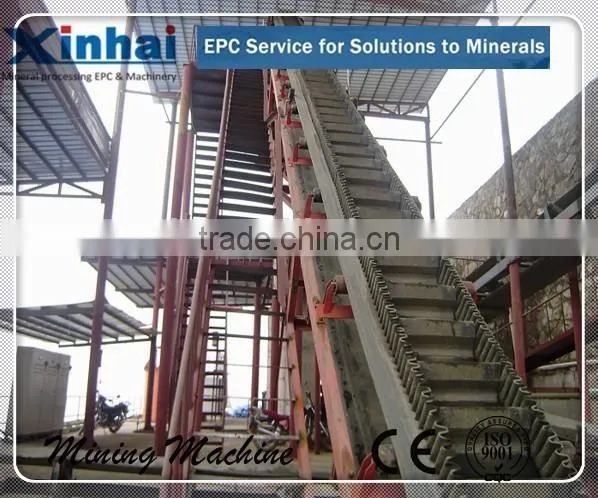

Belt conveyor with High inclination angle and waved guard side — Product feature
Using corrugate belt instead of normal belt is the most distinguishing character of this conveyor. It has large conveying angle, and the conveying obliquity is 0° -90°, it takes mall area, saves the investment and civil charges.
Belt conveyor with High inclination angle and waved guard side — Product application
It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.
Belt conveyor with High inclination angle and waved guard side — Product principle
Its structure and work principle are the same with general belt conveyor. Therefore, its main parts can be also used in general belt conveyor.
Belt conveyor with High inclination angle and waved guard side — Technology parameter
| item | Width of the belt (mm) |
Height of guard side (mm) |
Conveying inclination angel 30° | Conveying inclination angel 45° | Conveying inclination angel 60° | Conveying inclination angel 90° |
| model | Conveying amount(m³/h) | Conveying amount (m³/h) | Conveying amount (m³/h) | Conveying amount (m³/h) | ||
| DJ50-8 | 500 | 80 | 46 | 35 | 25 | 13 |
| DJ50-12 | 120 | 71 | 57 | 40 | 21 | |
| DJ65-12 | 650 | 120 | 104 | 83 | 58 | 31 |
| DJ65-16 | 160 | 120 | 97 | 69 | 37 | |
| DJ80-12 | 800 | 120 | 128 | 102 | 72 | 38 |
| DJ80-16 | 160 | 157 | 127 | 90 | 48 | |
| DJ80-20 | 200 | 195 | 157 | 112 | 60 | |
| DJ80-24 | 240 | 235 | 195 | 142 | 76 | |
| DJ100-12 | 1000 | 120 | 172 | 137 | 96 | 51 |
| DJ100-16 | 160 | 216 | 157 | 124 | 66 | |
| DJ100-20 | 200 | 267 | 216 | 153 | 82 | |
| DJ100-24 | 240 | 327 | 271 | 197 | 106 | |
| DJ120-16 | 1200 | 160 | 275 | 222 | 158 | 85 |
| DJ120-20 | 200 | 331 | 267 | 190 | 102 | |
| DJ120-24 | 240 | 419 | 347 | 253 | 136 | |
| DJ120-30 | 300 | 466 | 384 | 278 | 149 | |
| DJ140-20 | 1400 | 200 | 395 | 318 | 226 | 121 |
| DL140-24 | 240 | 500 | 414 | 302 | 162 | |
| DJ140-30 | 300 | 564 | 465 | 337 | 180 | |
| DJ140-40 | 400 | 794 | 680 | 524 | 281 |
2. reversible belt conveyor
Product advantages
1.High capacity
2.Low energy consumption
3.Convenient operation
4.Widely applied
5.Long operating life
Reversible belt conveyor — Product feature
Reversible belt conveyor can be drove by both sides, so that two-way operation can be realized.
Reversible belt conveyor — Product application
It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.
Reversible belt conveyor — Product principle
Its structure and work principle are the same with general belt conveyor. Therefore, its main parts can be also used in general belt conveyor.
Reversible belt conveyor — Technology parameter
Width of conveyor |
Bulk density |
Length of conveyor |
Belt speed |
Running speed |
gauge |
Type of rail |
No. of belt layers |
Diameter of the electric roller |
L×W×H |
W at every 3m increased |
500 |
≤2.5 |
6~60 |
2.5 |
0.294 |
900 |
18 |
Decided by the customer |
500 |
(3265+L)×1300×1080 |
367 |
650 |
1060 |
(3265+L)×1490×1080 |
378 |
|||||||
800 |
1440 |
(3265+L)×1670×1210 |
439 |
|||||||
1000 |
1640 |
630 |
(4000+L)×1870×1240 |
598 |
||||||
1200 |
1850 |
(4000+L)×2080×1400 |
698 |
|||||||
1400 |
2050 |
800 |
(4000+L)×2280×1500 |
754 |
