Home > Products > Transportation Equipment > ISO 9001 & CE flexible screw conveyor/screw conveyor price

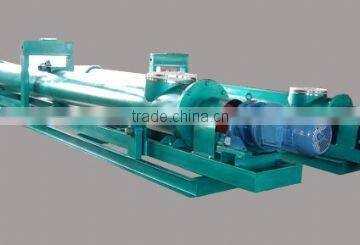

ISO 9001 & CE flexible screw conveyor/screw conveyor price
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Other, Carbon steel | Material Feature | Fire Resistant | |
| Structure | Conveyor System | Load Capacity | depends on the type | |
| Place of Origin | Shandong, China | Brand Name | Xinhai | |
| Model Number | GX | Voltage | depend on the model | |
| Power(W) | depend on the model | Dimension(L*W*H) | depend on the model | |
| Certification | ISO 9001, CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Screw conveyer price1.High efficiency and power saving
2.Reliable quality;reasonable design
3.High capacity of sion-resistin
ISO 9001 & CE flexible screw conveyor/screw conveyor price
Screw conveyor price—Product advantages
1.High efficiency and power saving; long service life
2.Reliable quality; reasonable design
3.High capacity of abrasion-resisting and anti-winding; large torsional distance
Screw conveyor price— Product feature
It is with simple structure, small cross sectional dimension, good sealing performance, low cost and easy operation. It is convenient to feed and discharge during operation, and the conveying direction can be opposite. Materials can be mixed, agitated, heated and cooled during conveying. Besides, material flow can be adjusted by loading/unloading value.
Screw conveyor price— Product application
The screw conveyor is suitable for transporting all kinds of powder, particles and small lumps, such as coal, gravel, sand, cement, cereal, etc.
Screw conveyor price— Product principle
It is composed of driving device, enclosed tank and screw. Materials in the tank are transported with the help of screw rotation.
Parameter of screw conveyer
Model | GX15 | GX20 | GX25 | GX30 | GX40 | GX50 | GX60 |
(mm) Screw diameter | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
(t/h) Transport capacity for magnesium powder | 4.5 | 8.5 | 16.5 | 23.3 | 54 | 89 | 139 |
(t/h) Transport capacity for cement | 4.1 | 7.9 | 15.6 | 21.2 | 51 | 85 | 134 |
(t/h) Transport capacity for sodium carbonate | 3 | 6.7 | 10.7 | 18 | 35.5 | 70 | 97 |
(mm) Width X height | 272×314 | 342×384 | 392×464 | 468×555 | 572×685 | 706×823 | 806×973 |
(mm) Shortest layout of inlet | 190 | 220 | 270 | 300 | 350 | 450 | 550 |
(mm) Dimensions of square opening of inlet | 170 | 220 | 270 | 320 | 420 | 528 | 628 |
(mm) Height of inlet | 75 | 100 | 120 | 140 | 160 | 160 | 180 |
(mm) Dimensions of square opening of outlet | 176 | 226 | 276 | 328 | 428 | 536 | 636 |
(mm) Height of outlet | 135 | 165 | 195 | 225 | 280 | 340 | 430 |
Group Introduction
Xinhai Group founded in 1993 has grown into the industry group involving mineral processing, wearable rubber, mining investment and LFC Machinery after twenty years development. We have been always committed to providing customers with professional, perfect, efficient equipment and solutions. The whole solution we provide for you with the core of reliable & efficient mineral processing schemes and environmental-protection & energy-saving tailings dry stacking, makes us stand up in every EPC bid.
Our company has many other products for you reference as following:
1.Crushing Machinery
2.Grinding Machinery
3.Screening Machinery
4.Flotation Machinery
5.Magnetic Equipment
6.Thickening Equipment
7.Filtration Equipment
8.Gravity Separation Equipment
......
Warmly welcome to visit our factory and company any time you like it !
Contact Us
- Shandong Xinhai Mining Technology & Equipment Inc.
- Contact nameFeifei Liu Chat Now
- Phone0086-535-6999907,6302098
- AddressNo.188 Xinhai Street,Fushan District, Yantai, Shandong
