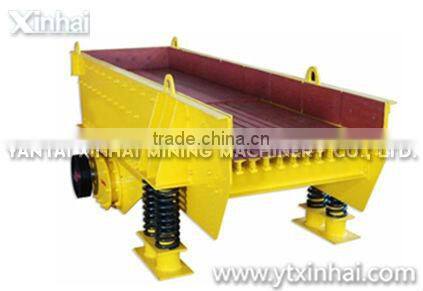

Help CenterHigh Intensity ZSW Vibrating Grizzly Feeder
Related Products
-
High Intensity ZSW Electromagnetic Vibrating FeederNegotiableMOQ: 1 Set -
High Intensity ZSW Vibrating FeederNegotiableMOQ: 1 Set
-
Vibrating Hopper Feeder MachineUS$ 5,000 - 60,000MOQ: 1 Set
-
Vibrating Grizzly FeederUS$ 5,000 - 60,000MOQ: 1 Set
-
Electromagnetic Vibrating Feeder for Sale / Mining MachineUS$ 5,000 - 60,000MOQ: 1 Set
Specifications
vibrating grizzly feeder1.Stable vibration
2.reliable operation
3.Uniform feeding
4.stable working performance
Electromagnetic Vibrating Feeder, Vibrating Grizzly Feeder
Product advantages
1.Stable vibration and reliable operation
2.Uniform feeding; stable working performance
3.Compact structure; high intensity; impact and abrasion resistant
ZSW vibrating feeder — Product feature
Stable vibration and stable working performance
Special paling design, in order to prevent stuck of the materials
The clearance of the paling is adjustable
It is configured with relatively more abrasion-resistant parts.
In order to protect the abrasion-resistant parts from being wore by fine materials, fine minerals are separated to improve output.
Variable frequency adjustable speed motor is available. By virtue of changing frequency, it can change the output, control the feeding quantity and resolve the problem of frequently starting motor.
ZSW vibrating feeder — Product application
It is mainly used to evenly and continuously feed materials to conveyor, bucket elevator, crusher, ball mill etc. It can be also adopted to realize the automatic production process.
This machine is not suitable to convey wet and sticky materials.
ZSW vibrating feeder — Product principle
ZSW vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through the driving of motor, the two eccentric shafts start to rotate to produce linear huge power which forces the feeder to vibrate. Via the vibration, the materials will slip and sling on the funnel and subsequently move forward. When the materials pass the screening, smaller parts will fall down. As a result, the further crushing is skipped and screening effects are achieved.
ZSW vibrating feeder — Technology parameter
model |
Tank dimensions |
Max feed particle size |
Feed capacity |
Rotating speed of eccentric shaft |
Motor power |
weight |
ZSW-380×95 |
3800×960 |
500 |
96-160 |
500-714 |
11 |
4082 |
ZSW-420×110 |
4200×1100 |
580 |
120-240 |
500-800 |
15 |
4740 |
ZSW-490×96 |
4900×960 |
500 |
5351 |
|||
ZSW-490×110 |
4900×1100 |
630 |
120-280 |
5352 |
||
ZSW-590×110 |
5900×1100 |
350 |
750 |
22 |
6130 |
|
ZSW-600×130 |
6000×1300 |
750 |
400-560 |
500-800 |
7800 |
