Branch Shredder/Industrial Shredder / Wood Pallet Shredder

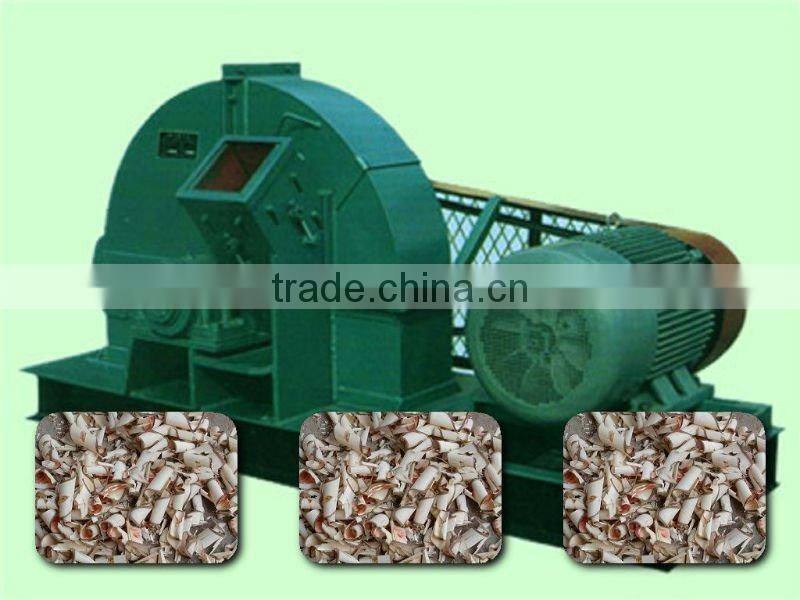

Branch Shredder/Industrial Shredder / Wood Pallet Shredder photo-1

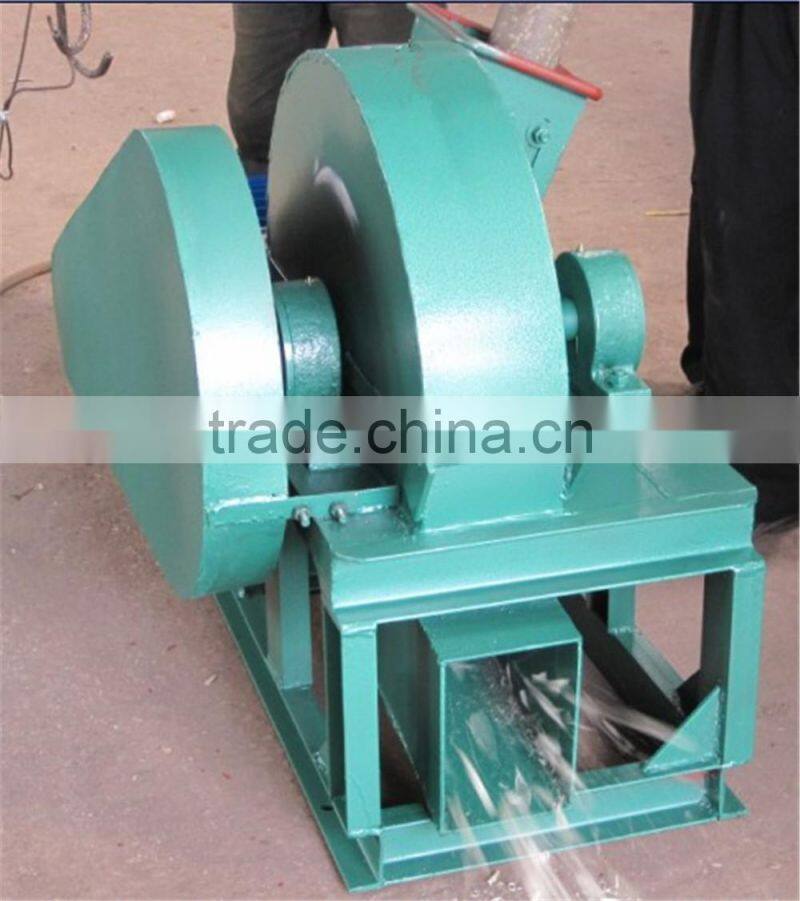

Branch Shredder/Industrial Shredder / Wood Pallet Shredder photo-2
US$ 850 - 1,350 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Henan, China
Brand Name:
Jingying
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Jingying
Model Number 420-1000
Voltage 380V/220V, 380v
Power(W) 15kw-22KW
Dimension(L*W*H) 1200*500*800mm
Weight 650kg, as the machine type
Certification ISO
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Branch Shredder/Industrial Shredder / Wood Pallet Shredder



Introduction of small wood crusher



 The wood crusher produced by our company is a kind of newly-developed wood crushing equipment for raw wood, which is an innovation on the basis of traditional crusher-making theories both home and abroad. It is composed of machine body, knife chipping part, chips re-crushing part and sieving part, etc. It combines both chipping and crushing in one machine, can make sawdust in one passage, no need to use wood chipper for pre-processing of wood logs.







Advantages of small wood crusher:



 1. To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.



2. Low investment and energy consumption,



3. High output



4. High-quality finished products



5. Easy to operate and miantain



Branch Shredder/Industrial Shredder / Wood Pallet Shredder



Product Description

 Timber by feed port into, when wood according to contact to peel and cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, cut cut pieces of wood in the peel and cut indoor by cutting knife plate wind leaf produced by the high speed flow send out.



Branch Shredder/Industrial Shredder / Wood Pallet Shredder



Machine Parameters



Model

Blade (pc )

Feeding size (mm )

Cutter Dia. ( mm )

Blade size (mm )

Capacity ( T/h )

Spindle speed ( r/min )

Power (kw )

Physical size(mm)

420

3

150*150

420

150*70*8

0.6-1.5

600

7.5

1200*500*800

600

3

180*150

600

200*100*10

1.5-3

600

15

1500*570*1050

700

3

190*200

650

230*120*12

2-6

600

18.5

1500*680*1100

800

4

200*200

735

230*120*12

3-8

550

30

1850*730*1240

950

4

230*250

830

250*120*12

5-10

550

37

1900*820*1800

1150

4-6

300*300

1150

340*150*14

8-13

600

75

2560*1150*1800



Branch Shredder/Industrial Shredder / Wood Pallet Shredder

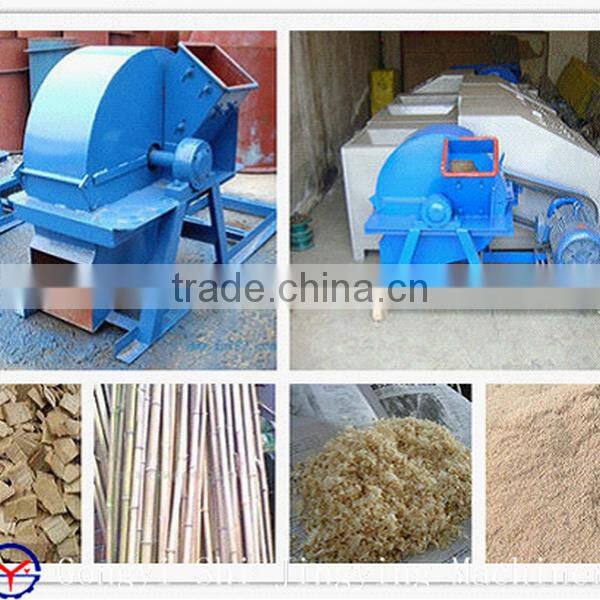

Finished Products



Branch Shredder/Industrial Shredder / Wood Pallet Shredder
