Home > Products > Drying Machine > wood drying machine/maize drying machine/sawdust dryer machine

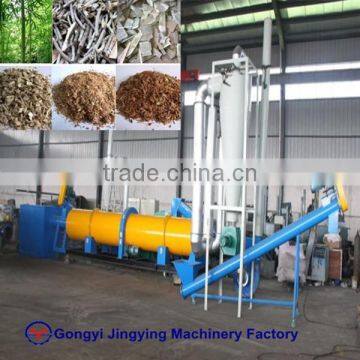

wood drying machine/maize drying machine/sawdust dryer machine

FOB Price

USD $4,599 - $200,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Rotary Drying Equipment, maize drying machine
Place of Origin	Henan, China	Brand Name	JY, JY
Model Number	600-3000	Power(W)	3-75kw
Dimension(LWH)	6006000-300025000	Weight	3-105t, 2.9-104.9T
Certification	CE,ISO, CE.ISO.SGS,ISO9001:2008	Warranty	1 year

Product Description

wood drying machine/maize drying machine/sawdust dryer machine

Product Description

The rotary dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary dryer has a better adaptability and can dry various materials with a simple and reliable operation.

Machine Parameters

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.

Raw Material Request

The indirect heat transfer dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.

Detailed Images

The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.

Performance Characteristics of Rotary Dryer:This series drier is used for drying materials with humidity or granularity in
the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.

Technology Data

Model (mm)	Obliquity(%)	Rotation speed (r/min)	Feeding temperature (degree)	Power (kw)	Capacity(t/h)	Weight (t)
600x6000	3-5	3-8	<=700	3	0.5-1.5	2.9
800x8000	3-5	3-8	<=700	4	0.8-2.0	3.5
800x10000	3-5	3-8	<=700	4	0.8-2.5	4.5
1000x10000	3-5	3-8	<=700	5.5	1.0-3.5	5.6
1200x10000	3-5	3-8	<=700	7.5	1.8-5	14.5
1200x12000	3-5	3-8	<=700	11	2-6	14.8
1500x12000	3-5	2-6	<=800	15	3.5-9	17.8
1800x12000	3-5	2-6	<=800	18	5-12	25
2200x12000	3-5	1.5-6	<=800	18.5	6-15	33
2200x18000	3-5	1.5-6	<=800	22	10-18	53.8
2200x20000	3-5	1.5-6	<=800	30	12-20	56
2400x20000	3-5	1.5-5	<=800	37	18-30	60
3000x20000	3-5	1.5-5	<=800	55	25-35	78
3000x25000	3-5	1.5-5	<=800	75	32-40	104.9
