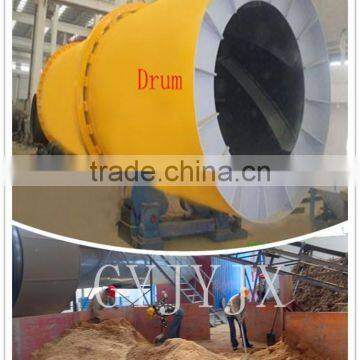

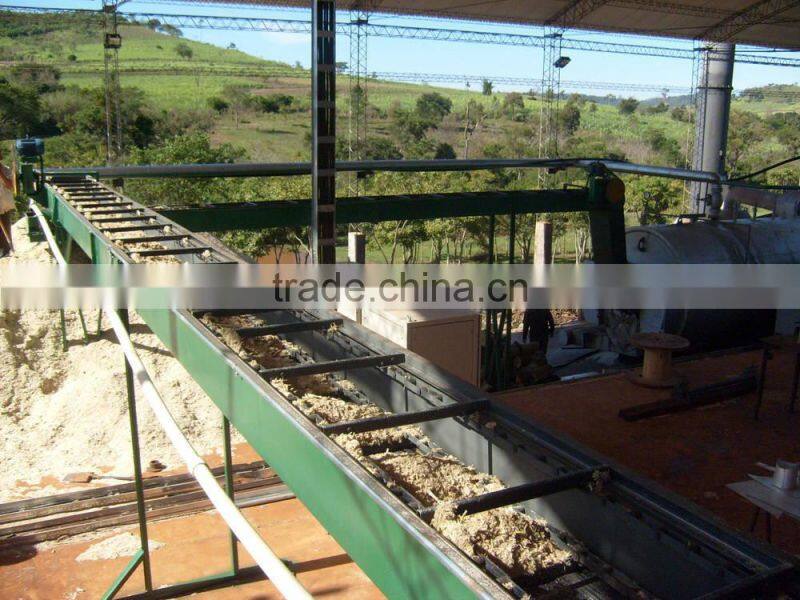

Jingying Machinery wood sawdust rotary drum dryer drying equipment
Rotary Dryer Introduction:
The rotary dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. The rotary dryer has a better adaptability and can dry various materials with a simple and reliable operation.
Features of Rotary Dryer:

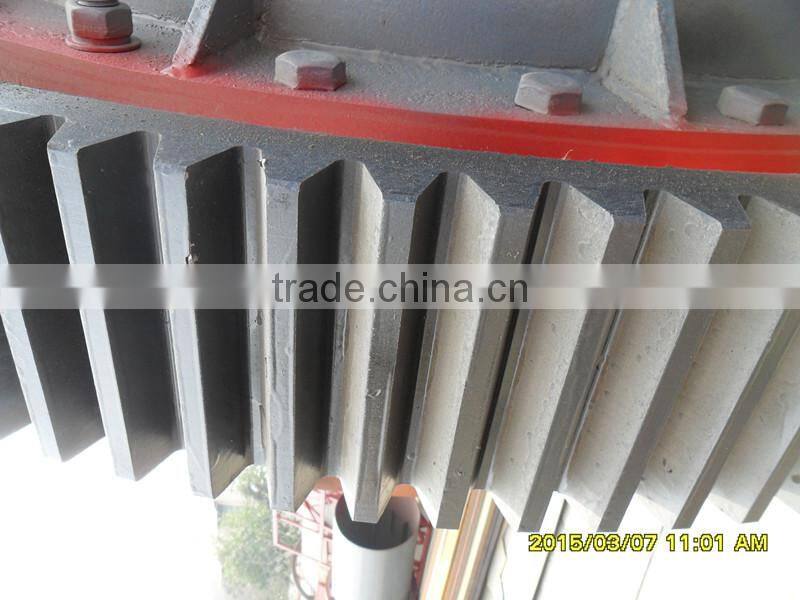

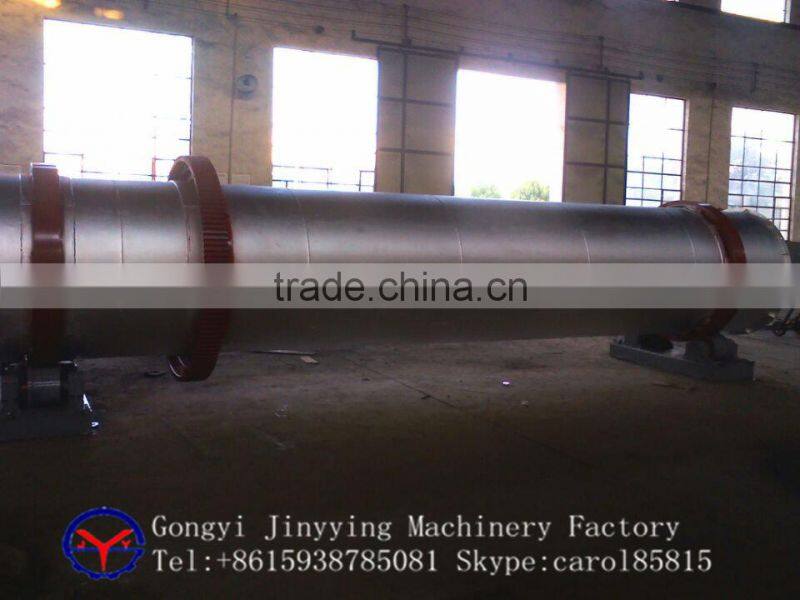

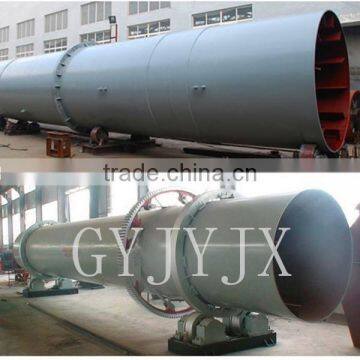

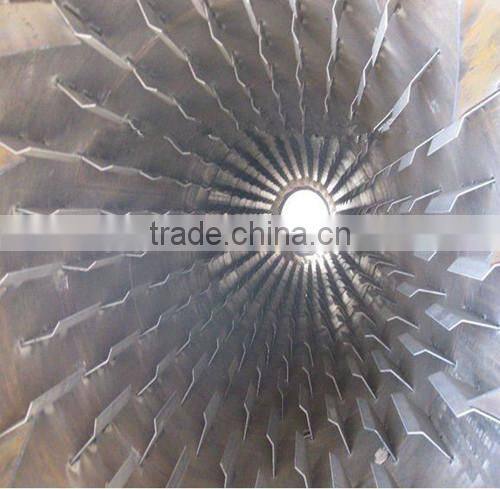

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Rotary Dryer Application & Composition:
The indirect heat transfer dryer made by our company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed of rotary body, lifting blade, driving device, supporting device and sealing ring.
Rotary Dryer Advantages:
The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.
Performance Characteristics of Rotary Dryer:This series drier is used for drying materials with humidity or granularity in
the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
Techinical Parameter of Rotary Dryer:
Model (mm) |
Obliquity(%) |
Rotation speed (r/min) |
Feeding temperature (degree) |
Power (kw) |
Capacity(t/h) |
Weight (t) |
600x6000 |
3-5 |
3-8 |
<=700 |
3 |
0.5-1.5 |
2.9 |
800x8000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.0 |
3.5 |
800x10000 |
3-5 |
3-8 |
<=700 |
4 |
0.8-2.5 |
4.5 |
1000x10000 |
3-5 |
3-8 |
<=700 |
5.5 |
1.0-3.5 |
5.6 |
1200x10000 |
3-5 |
3-8 |
<=700 |
7.5 |
1.8-5 |
14.5 |
1200x12000 |
3-5 |
3-8 |
<=700 |
11 |
2-6 |
14.8 |
1500x12000 |
3-5 |
2-6 |
<=800 |
15 |
3.5-9 |
17.8 |
1800x12000 |
3-5 |
2-6 |
<=800 |
18 |
5-12 |
25 |
2200x12000 |
3-5 |
1.5-6 |
<=800 |
18.5 |
6-15 |
33 |
2200x18000 |
3-5 |
1.5-6 |
<=800 |
22 |
10-18 |
53.8 |
2200x20000 |
3-5 |
1.5-6 |
<=800 |
30 |
12-20 |
56 |
2400x20000 |
3-5 |
1.5-5 |
<=800 |
37 |
18-30 |
60 |
3000x20000 |
3-5 |
1.5-5 |
<=800 |
55 |
25-35 |
78 |
3000x25000 |
3-5 |
1.5-5 |
<=800 |
75 |
32-40 |
104.9 |
Certificate:
Jingying Machinery Manufacturing factory,
being established in 1986, works on designing
and manufacturing complete set of energy
saving machines and recycling equipment.
Our top selling recycling machines are full
auto wood pellet machine,charcoal and coal
briquette machine, metal shredders,
industry crushers and brick producing
Machines.
Welcome you to visit our factory!
