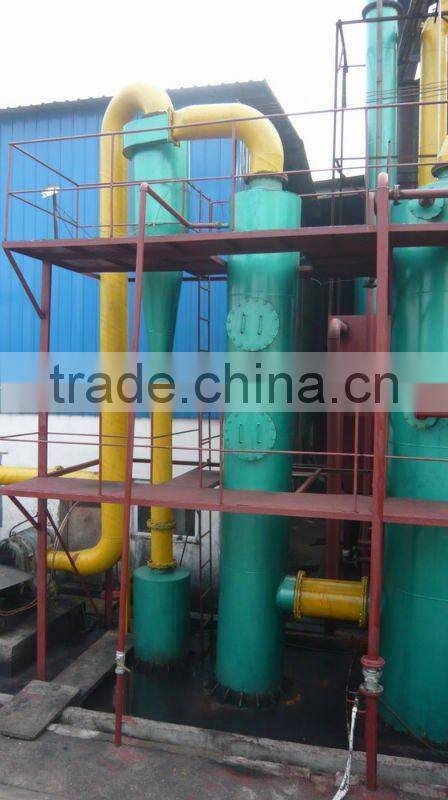

Help Center10mw Biomass Gasification Power Plant
Related Products
-
Small Biomass GasifierUS$ 1 - 100MOQ: 1 Set -
Biomass Fixed Bed GasifierUS$ 1 - 100MOQ: 1 Set
-
Biomass GasifierUS$ 1 - 100MOQ: 1 Set
-
Biomass GasifierUS$ 1 - 100MOQ: 1 Set
-
300Nm3 to 20000Nm3 Biomass Fluidized Bed Gasifier for Boiler and Generator Wheat Straw Gasification Power PlantUS$ 1 - 99,999MOQ: 1 Set
Specifications
High Gasification efficiency, Well automatically operation system, lower maitenance cost . lower operation cost .
Techology Process
Biomass is sent to fluidized bed gasifier continuosly by feeder. With the high temperature(700~800°c) and circulated bed material effect inside gasifer, biomass react with air pushed into furnace from the bottom of gasifier and is gasified into gas similar to coal gas. The calorific value is over1,100kcal/Nm3.
By improved purification technology, the system can effectively collect the tar and ash. The clean gas is sent to inferior fuel gas internal combustion gen-sets to produce electricity.
Available capacity of power plant:200kw to 12MW. Power generation efficiency is over 20%.
Technology Features:
1. The system has broad adaptability of biomass. Biomass whose diameter is below 4cm can all be gasified.
2. Gasification efficiency is high(≥85%), high level of automatic control.
3. Capacity of single gasifier can be over 7MW.
