Concrete Batching Machine, Mini Vibrating Feeder for Small Business

Concrete Batching Machine, Mini Vibrating Feeder for Small Business thumbnail-1
Concrete Batching Machine, Mini Vibrating Feeder for Small Business photo-1
US$ 20 - 60 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
construction,building,brick production
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Henan Sanxiong Heavy Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Lianyun port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application construction,building,brick production
Power Type Electric
Capacity(t/h) 48m3/h,56m3/h,75m3/h
Place of Origin Henan, China
Brand Name YUHU
Model Number PLD800,1200,1600
Power(W) 3*2.2kw,3*4kw,4*5.5kw
Dimension(L*W*H) 9000*220*600,5600*1800*2700,etc
Weight 2450kg,4500kg,5600kg
Certification ISO9001:2000
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Two bin feeder
1.Full Automatic,easy operated
2.Low procurement cost
3.Optional batching box
4.Accurate batching system

Concrete Batching Machine, two bin feeder for small business



Two bin feeder
1.Full Automatic,easy operated
2.Low procurement cost
3.Optional batching box
4.Accurate batching system



Concrete Batching Machine, mini vibrating feeder for small business

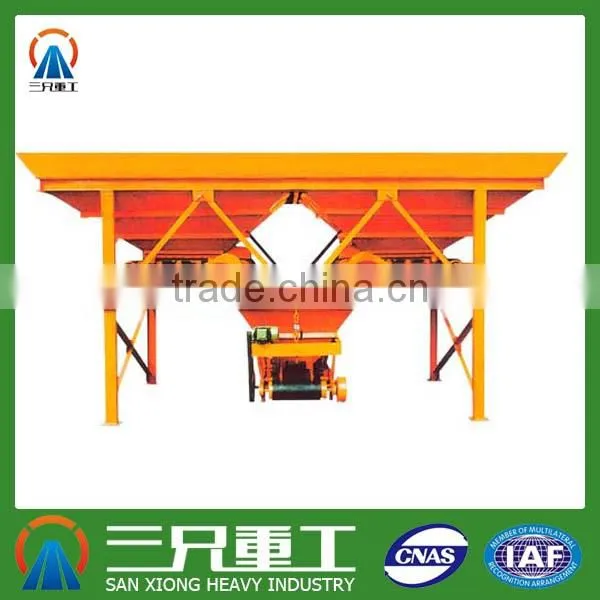

1.The brief introduction of two bin feeder*mini vibrating feeder



a.Two bin feeder consists of feeding mechanism, weighing system and electrical control system, etc.



b.The upper is raw material storage hopper,lower for the  weighing hopper, for unloadig conveyor belt at the bottom



c.The storage hopper used to store with the raw material, storage hopper bottom below faces ingridents conveyor



d.The equipment used in small and medium-sized construction site more, can improve the batching accuracy,reduce  the error,effectively ensure the accuracy of the cement, sand and gravel micture, and use of electronic weighing system, further improve the accuracy of the weighing system



2.The features of the two bn feeder*mini vibrating feeder



1. It can proportion materials by double bin, three bins or more than three warehouse, mostly used in building materials industry.





2. Improve the batching accuracy, reduce the gap.





3. Reduce the purchasing cost, reduce the frequency of wrong method of material usage (more or less).





4. A high degree of automation, adjust automatically after the ingredients, does not need manual operation.





5. The belt conveyor, prevent material falls.





6. The feed mechanism are arranged "one" glyph, convenient material conveying.



Concrete Batching Machine, mini vibrating feeder for small business





3.The technology parameter of the two bin feeder*mini vibrating feeder



Model

PLD800

PLD1200

PLD1600



Weighing hopper

0.8m3

1.2m3

1.6m3

Storage hopper

2×2m3

3×2.2m3

4×5m3

Capacity

48m3/h

56m3/h

75m3/h

Weighing accuracy

±1%

±1%

±2%

Max Capacity

2000kg

3000kg

3000kg

Aggregate species

2

3

3

Filling height

2400mm

3000mm

2900mm

Belt conveyor speed

1.0m/s

1.0m/s

1.6m/s

Power

3×2.2kw

3×4kw

4×5.5kw

Weight

2450kg

4500kg

5600kg

Dimension (L×w×H)

5600×1830×2700

9000×220×600

9900×2000×3200



 4.The working principle of two bin feeder*mini vibrating feeder



Belt conveyor starts out of the material in the storage hopper to setting point ,and belt stops, then under the control instrument control, the configuration of several kinds of materials,

until all materials to be configured, instrument control will start unloading belt ,conveying material into the next stage grinding wheel mixer or blender.





 Concrete Batching Machine, mini vibrating feeder for small business



5.Customer visiting* mini vibrating feeder



Concrete Batching Machine, mini vibrating feeder for small business





Concrete Batching Machine, mini vibrating feeder for small business





If your are interested in our product ,pls feel free to contact us now , talk more details.
