Home > Products > Cable wire recycling machine > Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine
Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine
- 100 Set / Sets per Month
- Qingdao Port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | SUNY | Model Number: | ZY-TMJ200 |
Type: | Other, Scrap Cable Wire Recycle Machine |
Product Description
Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine
Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine
scrap copper cable wire recycle machine series uses the world's leading technology, and its equipment has extremely long life, excellent production structure, high degree of automation to reduce manual operations, high purity of separation, low loss, and all indicators are in line with environmental requirements.
Features of Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine
(1) the whole production line of a high degree of automation, easy operation method. (manual, automatic all but);
(2) choosing don't process with the recovery rate of 99%;
(3) dry crushing function output purity 99% copper;
(4) machinery life for half a permanent, only replace the attachment debilitating
(5) than other countries production machinery more cost-effective and performance is more excellent (can do it again fine wires can also separation).
Raw material of Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine
Wide application, the material of the waste wires can be telephone wire, household electric wire,automatic wire and cables whose diameter should be within 20mm.
Working Flow of Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine
Firstly, the scrap copper cable is crushed by the first crusher into about 10mm, then the mixture will delivered to the second crusher to be recrushed into 3-5mm, Later the copper will be separated from PVC plastic by vibrating machine. Scrap cable wire recycling machine is effective for recycling copper and PVC plastic from scrap wires with a high recycling rate of 99%.
Technical Parameters of Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine
Model | Capacity | Wight | Size | Power |
ZY-TMJ200 | 100-200kg/h | 1.8T | 2.2*2*2.3M | 28kw |
ZY-TMJ300 | 200-300kg/h | 2.5T | 3.2*2*2.3M | 39kw |
ZY-TMJ400 | 300-400kg/h | 3.2T | 4*2.1*2.5M | 45kw |
ZY-TMJ500 | 400-500kg/h | 3.8T | 6.2*5*3.3M | 68kw |
ZY-TMJ800 | 700-800kg/h | 5.5T | 10.4*2.1*3.3M | 75kw |
ZY-TMJ1000 | 800-1000kg/h | 8.2T | 12*4.1*4.5M | 95kw |
Detailed Images of Industrial Scrap Cable Wire Granulator Machine Copper Wire Recycling Machine

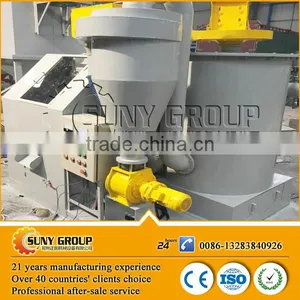

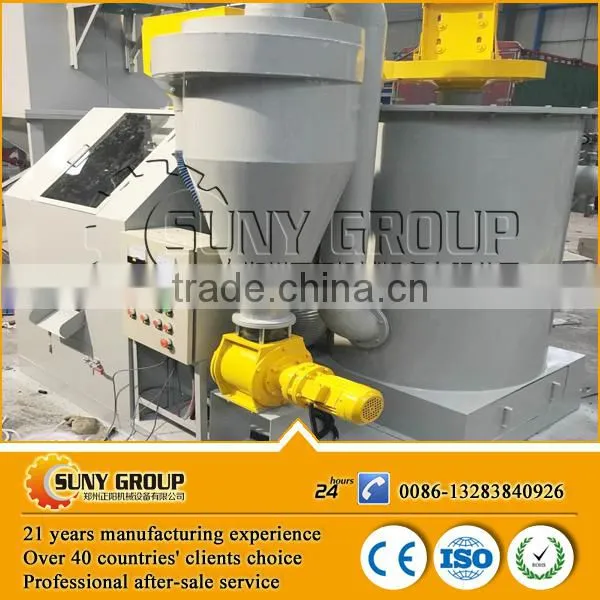

Whole machine picture
Shaq long use
Visiable Design , you can see the separate clearly .
Electronic Control Cabinet
Output sample and dust collector details pictures .
Customers from India, Poland, Mexico, Vietnam , Malysia , Spain etc visiting our factory , test the Scrap Cable Wire Granulator Machine and place order with us .
For Small amount machine, such as the ZY-TMJ200, we choose wooden case packing as export standard to pack the machine, with LCL see freight ,you can trust our packages, the wooden case we choose fix the machine and use plastic material packs to protect the painting .
For Large Qty order or large model machine, such as ZY-TMJ800, we choose FLC, also the machine will be packed with plastic material to protect the painting .
For large size Cables, such as bigger than 20 mm, we have better choice of the cable stripping machine for your reference :
And We are manufacture mainly focuse on the E-waste Recycle, such as the Scrap Computer Board Recycle Machine , Scrap Cable Recycle Machine, Waste Radiator Copper and Aluminum Separator .
Our Factory located in Zhengzhou City Henan Province, for normal capacity New Model Scrap Cable Wire Recycle Machine Electrical Wire Recycle Machine, We have sample machine instore, you can come and test the machine in our factory !
If you can come to us, you can choose: Air plane and High Way Train
Airport: Zhengzhou Airport (Code: CGO)
High-way Train Station: Zhengzhou East Station
We can arrange and pick you up and come to our factory !!!
