Large capacity high output coconut shell charcoal carbonization furnace
Round shape
Square shape
Coconut shell charcoal carbonization furnace description
This one set carbonization furnace including one main furnace,3 inner baskets and hoisting tools.
When the buyer download the raw material into the inner basket,they could use cages for loading.
After the carbonizing time for one inner basket is around 8-10 hours,we could take the inner basket out and let it cool,then put another inner basket inside.
After the temperature get around 300-330℃,we could stop heating and it will produce gas,the gas will return main furnace by pipes,it will self-heating.
Structures of coconut shell charcoal carbonization furnace
Outer stove, inner stove, and fume extraction tube
Outer stove: it includes heating room, furnace body and heat-keeping layer
Inner stove: The raw materials the resistance thermal steel plant and sealing cover.
Fume extraction tube: When during the process of carbonizing, there will be some smoke (can be burning) the smoke can return to the furnace through tube----gas flow carbonization stove.
Features of coconut shell charcoal carbonization furnace
1. The carbonization time of this kind stove is much shorter than that of traditional carbonization stove;
2. It makes full use of the combustible gas generated during the carbonization process, evergy-saving and environmental-friendly;
3. It can match with extra set of inner furnaces, thus can make sure the continuous carbonization, high efficiency;
4. The carbonization temperature can be adjusted according to your real situation.
Application of coconut shell charcoal carbonization furnace
All kinds of wood, wood chips, wood branches, wood sawdust, wood wastes and other kinds of biomass like rice husks, peanut shells, coconut shells, wheat brans, stalks, etc. And, the biomass briquettes like rice husk briquettes, wood briquettes can also be carbonized by our machine!
Materials requirements
Particle size is less than 50 mm, water content <25% of biomass particles can feeding into the type A carbonizing directly, such as: sawdust, rice husk, shell, palm shell, peanut shell, bamboo shavings, shavings etc.;
When you carbonize larger raw materials (Particle size more than 50 mm), such as branches, bark, coconut shell, such as straw, hemp pole, peduncle, need to crush it into less than 50mm pieces firstly; If water content is more than 30%, you can choose type B machine for production.
Working principle of coconut shell charcoal carbonization furnace
The carbonization furnace adopts the high-temperature dry sliding carbonization technology to make the man-made briquette to charcoal briquette. It is equipped with hyperploid high temperature stream cooling system, and the process of cooling can be accelerated to speed up the period of the production. Moreover, the stove adapts the structure of unique air storage chamber to fully reuse the smoke produced during the process of carbonizing. And 60% of the redundant smoke can be used in drying and carbonizing , saving much fuel during the whole process, and increasing the enterprise revenue.

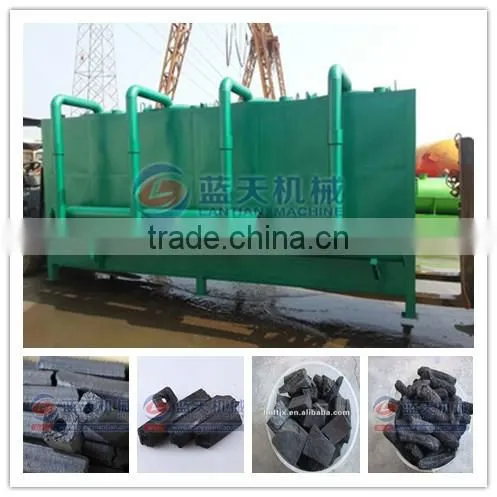

Final products
Technical parameter of coconut shell charcoal carbonization furnace
Types |
Parameters |
||||
|
Output |
Size |
Gross Weight |
Time of Carbonizing |
Time of Cooling |
Air-flow I |
500-600 kg |
4×1.5×2 m |
3500 kg |
4-6 hours |
6-8 hours |
Air-flow II |
1000-1200 kg |
5×1.6×2.2 m |
4500 kg |
6-8 hours |
8-10 hours |
Coconut shell charcoal carbonization furnace shipping
Usually, due to large volume, the carbonization furnace is loaded in 20GP standard container.
FAQ
(1)What is your business model? Trading company or factory?
We are a 30 years factory, all our machines are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.
(2)What is the carbonization rate?
This carbonization rate can reach 99%.
(3)Could you offer complete briquette machine production line?
Yes, we will allocate suitable production line, according to your special requirement, such as crusher, conveyor, dryer, briquette machine, etc.
(4)Where is your factory located? How I get to?
We are located in Gongyi city, Henan province, China, you can come here by air or train.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO
We will pick you up at airport. Welcome to visit our factory.
Our service
Pre-sale:
1. Suggest to client suitable raw material, final product capacity.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
Our company
We are a 30 years factory, has 30 years manufacturing experience and 6 years exporting experience. Our factory are specialized in charcoal machinery, briquette machinery and mining equipment.
Until now we have many customers come from different countries:
Asia countries: Philippines, Vietnam,Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India, Pakistan, Sri Lanka, Kazakhstan, Uzbekistan, etc.
Afghanistan, Iran, Iraq, Jordan, Lebanon, Saudi arabia, Turkey, etc.
Euopean countries: Russia, Spain, Romania, Bulgaria, greece, etc.
African countries: Egypt, Libya, Sultan, Tunisia, Algeria, Kenya, Tanzania, South Africa,etc.
Oceania countries: Australia, New Zealand, etc.
America countries: Mexico, Venezuela, Chile, Brazil, Argentina, etc.
If you have any other questions about the machine, please send the inquiry. Contact with me at any time!
