Home > Products > Construction Plant > aac light sand brick making machine/automatic production line/fly ash brick making machine
aac light sand brick making machine/automatic production line/fly ash brick making machine
- 10 Set / Sets per Month
- Qingdao Shanghai Tianjin Dalian
- T/T Credit Card
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Sand |
Processing: | Brick Production Line | Method: | Autoclaved Aerated Concrete | Automatic: | Yes |
Capacity: | 50000-300000CBM/year | Place of Origin: | Henan, China | Brand Name: | Yufeng |
Model Number: | Hollow Block Making Machine | Voltage: | 380V | Power: | 600-1400kw |
Dimension(L*W*H): | depends on customers' condition | Certification: | CE & ISO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Zhengzhou Yufeng Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deals with Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,dryer and rotary kiln, Lime and Cement production equipment and other equipments. We welcome all friends from home and abroad to visit our company to check the high quality products. Our service center sincerely hopes that we can have a successful cooperation. aac light sand brick making machine/automatic production line/fly ash brick making machine

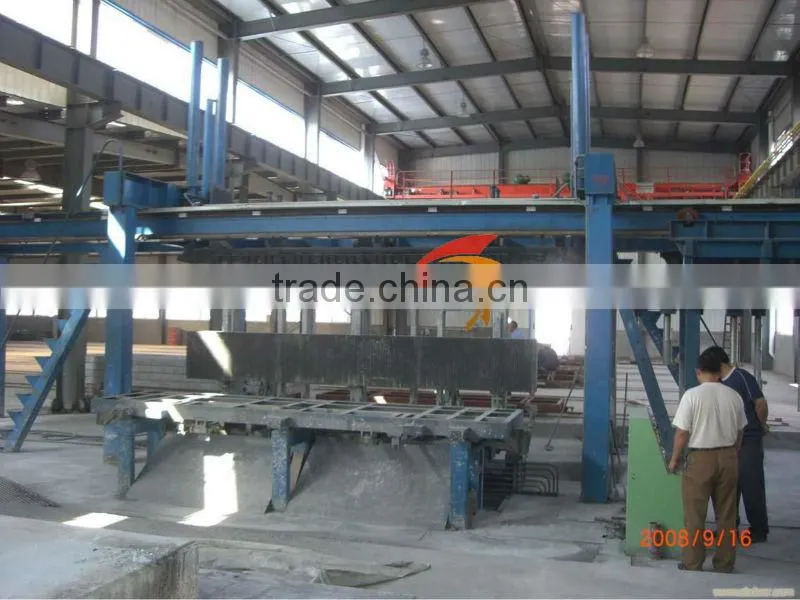

1. Production Line of AAC block making machine/ aac plant/aac production line
AAC Aerated concrete is the lightweight artificial stone, adopting the calcareous material and the siliceous material as components, forming the porous structures by the way of chemical gas generation, and obtaining the intensity after autoclaved curing. The calcareous material is mainly lime and cement, the siliceous material generally is industrial waste in China, such as fly-ash, tailings etc, or quartz sand. aac light sand brick making machine/automatic production line/fly ash brick making machine
2. AAC block making machine Main Process Flow:
1. Raw material: Store the sand (tailings etc), lime and gypsum after milling to the needed fineness (200 mesh)
2. Mixing the fly-ash, cement, lime, gypsum and water in the pot after batching.
3. Promote the slurry temperature to 40-50 degree by steam, and mill with aluminum powder for 1min.
4. Pour the slurry into the mould, and still in the curing room for frothing in 2-2.5h.
5. Cut it in to needed size by the cutter after the slurry approach the cutting intensity, and place the block on the trolley.
6. Autoclaved curing after the trolley enter into the autoclave (vacuum, rise the pressure, keep the pressure, reduce the pressure),keeping the constant pressure 1.2MPa. The whole process needs about 12h.
7. The products out of the autoclave are placed in a stack. We can recycle the scrap and the waste water from the whole production. aac light sand brick making machine/automatic production line/fly ash brick making machine
3. Raw material for AAC block making machine/ aac plant/aac production line
AAC Aerated concrete is the lightweight artificial stone, adopting the calcareous material and the siliceous material as components, forming the porous structures by the way of chemical gas generation, and obtaining the intensity after autoclaved curing. The calcareous material is mainly lime and cement, the siliceous material generally is industrial waste in China, such as fly-ash, tailings etc, or quartz sand. aac light sand brick making machine/automatic production line/fly ash brick making machine

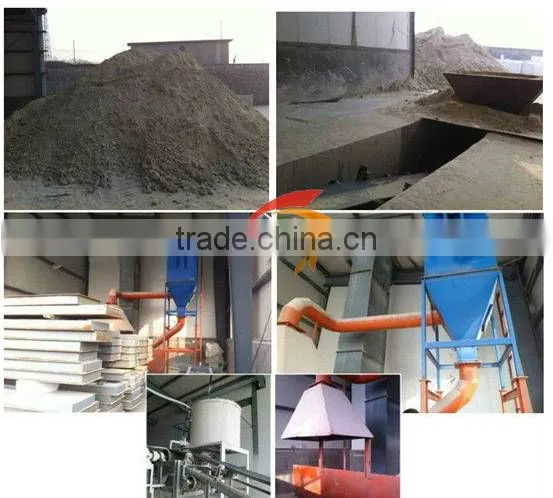

1) Storage and Process of Raw materials of AAC block making machine
(1)fly ash(sand)and gypsum
During process, proportioned fly ash(sand)and gypsum are put into Slurrying tank and made into mixing slurry. Then it is pumped into the slurry storage tank by slurry pump as standby.
(2)Quick lime
The bulk quick lime is conveyed to the lime storage by bucket elevator after being crushed by swing jaw crusher(Or: The bulk quick lime is conveyed to ball mill by belt conveyed after being crushed by swing jaw crusher),then the lime powder after being grinded fine by ball mill is conveyed to the lime powder storage in ingredient building as standby.
(3)Cement
The cement adopts bulk cement(ordinary portland cement (325#) or portland cement (425t)),and it is pumped into the cement powder storage in ingredient building as standby
(4) Aluminum powder
Aluminum power is poured into aluminum mixing machine to mix into 5% slurry as standby after being metered by workers
4. Dosing & mixing & pouring of AAC
The metered slurry pours into the pouring & mixing machine according to order, and at same time, the dumping device of electronic scale discharges the metered lime and cement powder to pouring and mixing machine. Then the slurry in Slurrying tank after being mixed will be poured into mold box below the Slurrying tank. aac light sand brick making machine/automatic production line/fly ash brick making machine

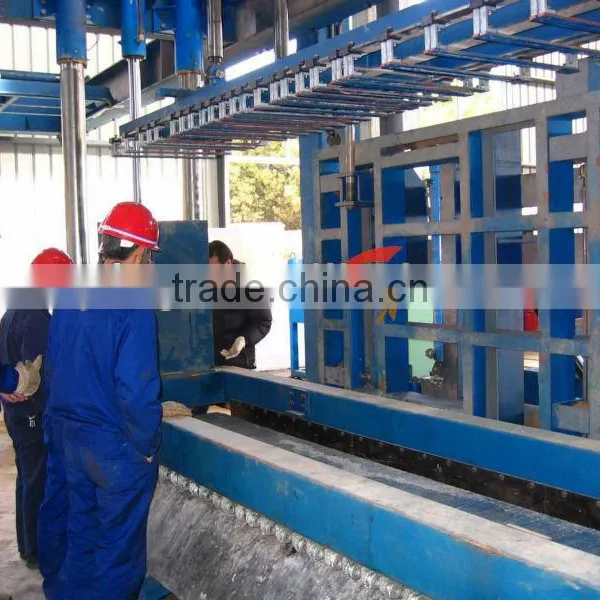

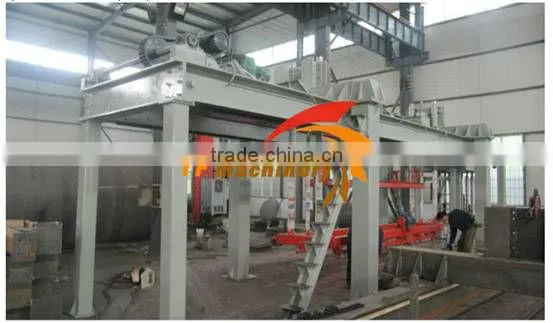

5. Cutting &marshalling of AAC
After the base reaches to certain hardness for cutting through static stop curing, the overturning crane on cutting and overturning vehicle (10t) hoists and overturns the base to the cutting dolly and demoulds, which overturns the base 90 degrees. Cutting dolly moves to finish transverse and vertical cutting.
The cut base with side plate will be conveyed by marshalling crane to the steam curing dolly and then pulled into autoclaves to steam curing. aac light sand brick making machine/automatic production line/fly ash brick making machine

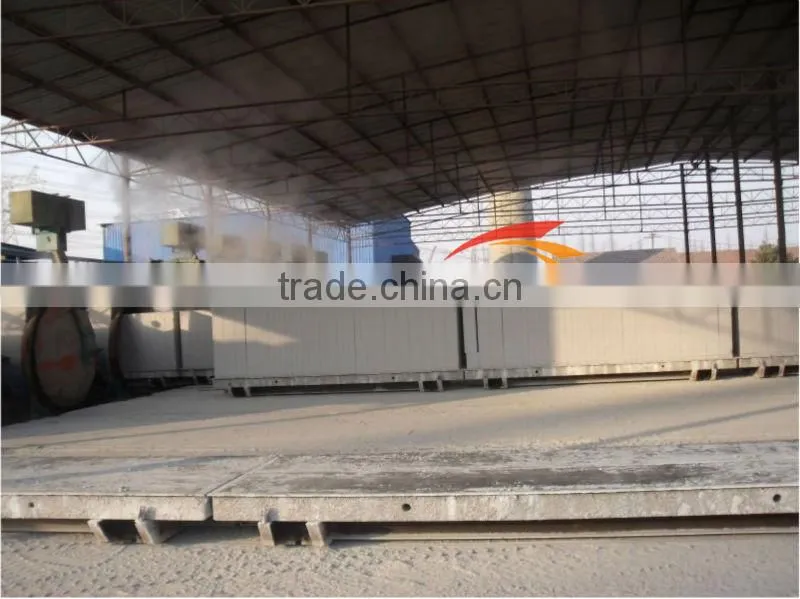

6. Steam curing & finished product of AAC
The steam curing time in constant pressure is 4 to 10 hours with the steam pressure 1.3Mpa and temperature around 190°C. Finished products after steam curing are dragged out from autoclave by slow moving hoist, and be lifted by crane to the transport vehicles. aac light sand brick making machine/automatic production line/fly ash brick making machine
7. Retuning, assembling and oiling on Base (side) plate
After conveying the finished products, the bottom (and side) plate on steam curing dolly with the dolly are lifted to lane for returning. annually 50000 m3 flyash aac production line/50000 m3 flyash aac plant
specification
name | unit | Cement lime fly ash |
flash | % | 65-70 |
cement | % | 6-15 |
lime | % | 18-25 |
gypsum | % | 3-5 |
Aluminum powder paste(600kg/m3) | 1/10000 | 8 |
Water & material rate |
| 0.60-0.65 |
Casting system | OC | 36-40 |
Aluminum mixing time | S | 30-40 |
Cement lime Sand style AAC aerated block raw material proportion
Name | Unit | Cement Lime Sand |
Sand | % | 55-65 |
Cement | % | 10-20 |
Lime | % | 20-30 |
Gypsum | % | 2-3 |
Aluminum powder paste(600kg/m3) | 1/10000 | 8 |
Water & material rate |
| 0.65-0.75 |
Casting system | OC | 35-38 |
Aluminum mixing time | S | 30-40 |
8. Features of the production processing
1) Fixed pouring, Automatic batching
According to the customers' requirements, the fixed pouring can help you to improve the production capacity, which is an automatic production line.
2) Cutting
Advanced Flip cutting machine, max production capacity 150,000 m3/Year. Cut it into needed size by the cutter after the slurry approach the cutting intensity.
9. Environmental protection
1) The production processing has no secondary pollution, which conform to the policy of environmental protection.
2) A little lime dust will be produced during grinding, and few dust will be produced in batching system. As for this question, dust collector can be used to improve the environment.
3) The measure of sound insulation can be taken in order to avoid the noise of ball mill.
4) Verdurization
Plant some trees, grass, etc around the new plant, so the working conditions will be improved.
What products does Yufeng company offer?
Yufeng company is a professional manufacturer of mining equipments, AAC plant, LECA plant, stone crushing plant, dryer machines, power grinding line, cement plant.
1) Stone Production Line
2) Beneficiation Production Line
3) Sand-making Production Line
4) Cement Production Line
5) Gypsum Production Line
6) Lime Production Line
7) Drying Production Line
8) AAC Production Line
9) LECA Production Line
We can offer mining equipments: magnetic separator, flotation separator, agitator, spiral classifier, mixer, vibrating screen, vibrating feeder, high frequency screen, shaking table, jig separator, spiral chute, hydro cyclone, thickener.
What does Yufeng company Warrantly?
1) Yufeng company can warrant 2 years guarantee(Excluding the damageable parts).
2) 100% new equipments when leaving the factory.
3) All products has ISO and CE certificate.
Why do you choose Yufeng Company?
We are a manufacturer in Zhengzhou, which serves as the largest base of Chinese industrial technology, and the busiest container port in the world. The competition in this city is severe, only companies with ending technology, stable workforce, and effective cost management could survive. With 10 years of efforts and innovation, Yufeng is now a leading brand in China. Our highly competitive price relies upon our ability to minimize our costs.
Our service:
Pre-sale
Depending on customer's requirement, we insist on "making profit at lowest investment" and gives best solution as per the customer's special demand.
During-sale
Manufacturing products strictly on contract while customer constructing.
Production progress report each week with detailed description and photos, including with raw materials tables, process and deep process record, testing data sheet, etc.
Testing all the equipment by witness of the customer ex-work, delivery, customer acceptance.
After-sale
Regularly return visit to the customers.
Within 1 year warranty period, we take charge of every ting if any quality problems. After the warranty period, we still focus on the plant running and services.
Response customer's questions within 1 working day, give effective solutions within 3 working days, go into action with 5 working day.
That's our promise, as we know quickly and service both important for long-terms development and cooperation.
If you have any inquiries or want to learn more about the AAC blcok making production line, please contact Linda: phone:+0086-15890678137 or Skype: yfchinamachine, your questions can be solved as soon as possible.
....
