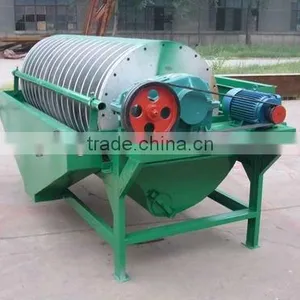

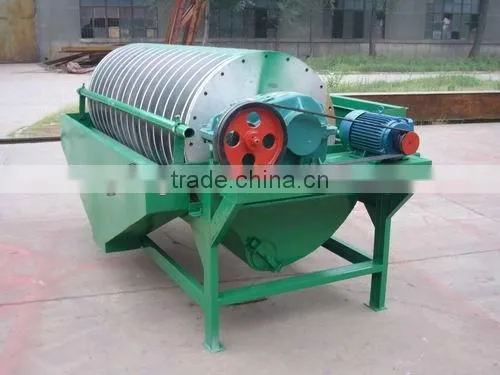

Automatic Magnetic Separator/disk Magnetic Separator
US$ 1,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Magnetic Separator
Production Capacity:
95%
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spriral Classifier/gravel Classifier /gold Classifier MachineUS$ 5,000 - 56,000MOQ: 1 Set -
2013 Spriral Classifier/ Fine Classifier for SaleUS$ 5,000 - 65,000MOQ: 1 Set
-
2013 Spriral Classifier MachineryUS$ 5,000 - 700,000MOQ: 1 Set
-
Spriral Classifier ,wet Sand ClassifierUS$ 5,000 - 56,000MOQ: 1 Set
-
South America Best Selling Copper and Gold Used Flotation Separating MachineUS$ 3,200 - 78,000MOQ: 1 Set
Condition
New
Type
Magnetic Separator
Production Capacity
95%
Place of Origin
Henan, China
Brand Name
Yufeng
Model Number
CT/CTB
Voltage
380v
Power(W)
2.2/3/4/5.5/7.5
Weight
1200/1500/1800/2100/2500/3200/4200/4500
Certification
ISO9001:2008
Warranty
2 years(except the easy damaged parts))
After-sales Service Provided
Engineers available to service machinery overseas
3000 gauss magnetic separator application:Magnetic Ore Separator is applicable for wet magnetic separation of materials such as magnetite, pyrrhotite, roasted ore and ilmenite whose size is less than 3 mm and also used for iron removal operation of materials such as coal, nonmetalliferous ore and construction material and so on.
Characteristics:
Magnetic system of Magnetic Ore Separator adopts high quality ferrite material or is compounded with rare earth and magnetic steel. Average magnetic intensity on the surface of cylinder is 100 to 600 mT. According to the user’s need, magnetic system with many different kinds of surface intensity such as fair current, half reverse flow and counterflow can be provided. This magnetic separator has the characteristics of single structure, large capacity, easy operation and maintenance. Zhengzhou Mining Machinery
Working principle:
The mineral slurry flows into the cell through box feeder, the mineral particle is loose under the function of water flow of feeder water pipe when they flow into the cell. Affected by magnetic field, the magnetic particle swarm together and form magnetic cluster or chain. With the magnetism of mineral slurry, the magnetic cluster or chain moves toward the magnetic pole, and is absorbed to the cylinder. Because of the polarity of magnetic pole, the revolving directions alternate constantly, and remain fixed when it is working. When the magnetic cluster and chain go round and round along with the cylinder, the mingled gangue and other non-magnetic ore fall down due to the mixing phenomena produced by alternation of magnetic poles, and it is concentrate that is absorbed to the cylinder surface. The concentrate moves to the end of magnetic system where the magnetism is weakest along with the revolving cylinder, and is discharged into concentrate tank by the current ejected by the discharging-ore pipe. The non-magnetic or weak magnetic remained are discharged along with the mineral slurry, and they are gangue.
Model |
Cylinder |
Capacity (t/h) |
Rpm (r/min) |
Power (kw) |
Weight (kg) |
|
D(mm) |
L (mm) |
|||||
CTB618 |
600 |
1800 |
18-35 |
40 |
2.2 |
1655 |
CTB712 |
750 |
1200 |
12-30 |
35 |
3 |
1682 |
CTB718 |
750 |
1800 |
20-45 |
35 |
3 |
1992 |
CTB918 |
900 |
1800 |
28-60 |
27 |
4 |
3162 |
CTB924 |
900 |
2400 |
38-80 |
27 |
4 |
3887 |
CTB1018 |
1050 |
1800 |
36-72 |
22 |
4 |
3801 |
CTB1024 |
1050 |
2400 |
52-100 |
22 |
5.5 |
4319 |
CTB1030 |
1050 |
3000 |
64-125 |
22 |
7.5 |
4976 |
CTB1218 |
1200 |
1800 |
55-95 |
19 |
7.5 |
5263 |
CTB1224 |
1200 |
2400 |
65-110 |
19 |
7.5 |
5927 |
CTB1230 |
1200 |
3000 |
85-120 |
19 |
7.5 |
6325 |
CTB1530 |
1500 |
3000 |
95-160 |
16 |
11 |
8665 |
CTB1540 |
1500 |
4000 |
120-190 |
16 |
11 |
9871 |
...
