Manufacture organic fertilizer mixer

Specifications

1,Output: 2-10 t/h
2,Power: 5.5-15 kw
3, easy operation
4, low power consumption and high output

  Animal feed mill/poultry waste grinder/fertilizer mixer:

Animal feed mill/poultry waste grinder/fertilizer mixer is our new generation hybrid devices. High mixing rate, less residual suitable for feed, concentrated feed, premix additives mixing. The material is fully mixed. To improve the mixing uniformity; using new rotor structure, the minimum gap of the rotor and shell can be adjusted to zero, Effective reducing the material residues; machine inside is with oil added channels, the overall structure is more reasonable, beautiful appearance, operation and maintenance.

Main feature of Mixer:

1.The  Horizontal Fertilizer mixer degree of homogeneity is high CV<5-7%

2. Horizontal Fertilizer mixer Mixing time :2-3minutes

3. Horizontal Fertilizer mixer's Discharge structure :manual ,electric or pneumatic .

4. Horizontal Fertilizer mixer is applicable to industries such as energy environment protection ,chemical ,feed food and medicine plants ,and organic fertilizer industry etc .

Parameters of Mixer:

Type(m3)	Power(kw)	Rotate Speed(R/min)	(kg)(m3)/Batch	Dimension(mm)	Weight
JCM-1	11	85	<600	3170×1530×1300	1800
JCM-2	18	63	<1200	4500×1720×1500	2530
JCM-3	30	56	<2400	4900×1820×1900	5000
JCM-4	37	41	<3600	5230×1950×2020	7800
JCM-5	45	22	<4800	6600×1980×2120	9300
JCM-6	55	22	<6000	7500×2100×2320	10500

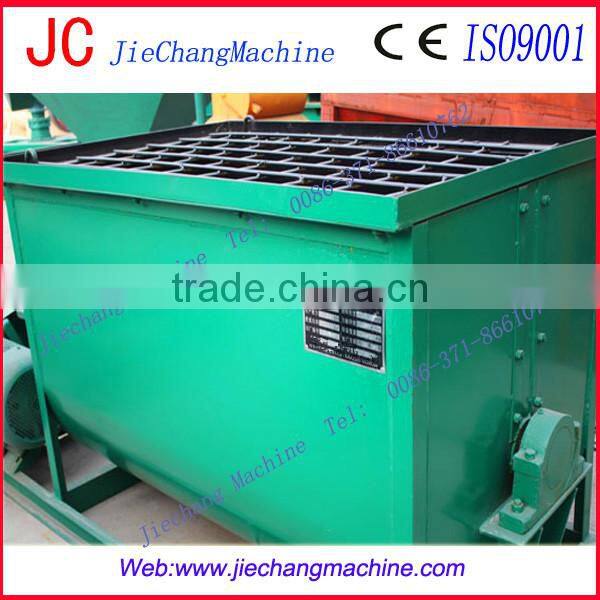

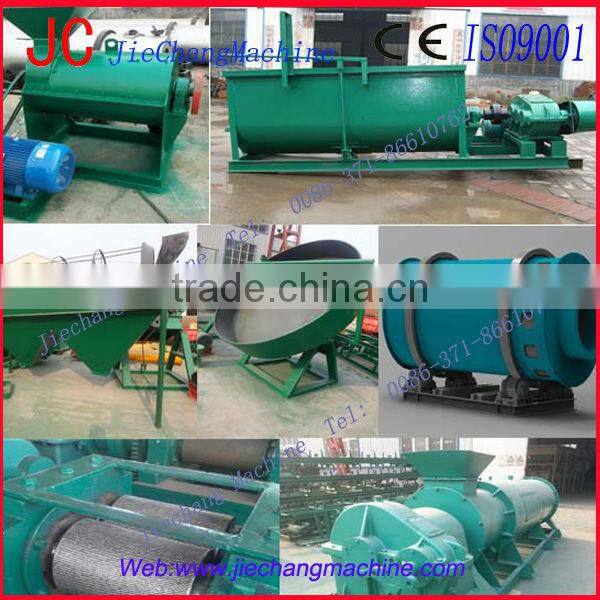

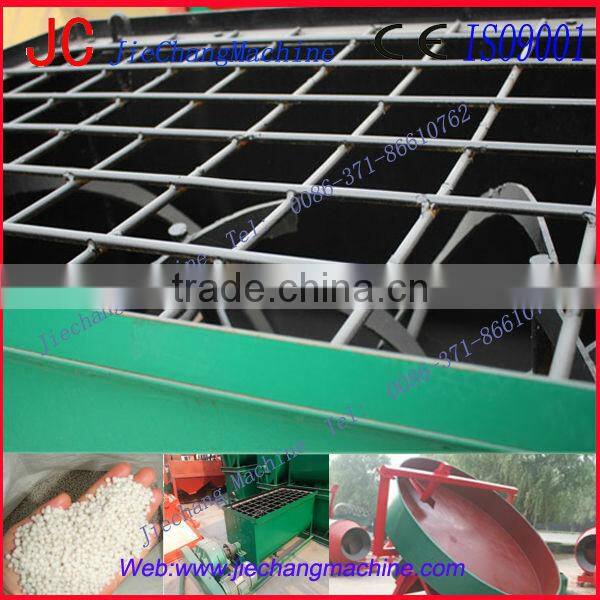

Related images of Mixer:
