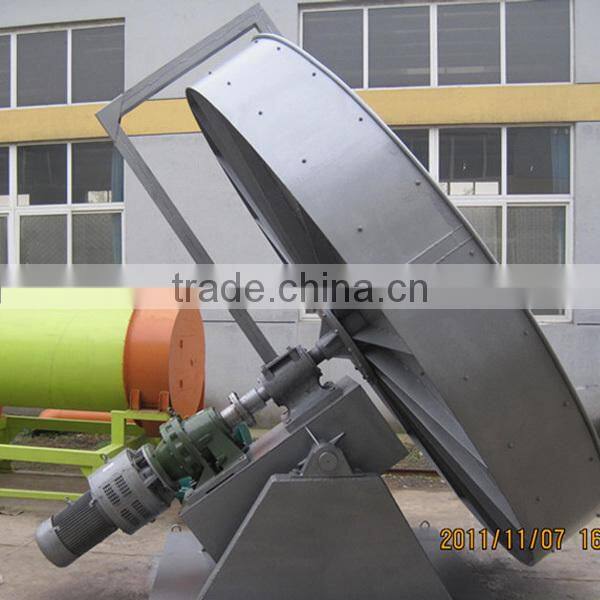

Disc Fertilizer Making Machine

1. Introdction of  Granulating Fertilizer Machine

1) The disc of the plate disc adopts overallcircular structure and its granulation rate may reach above 93%.

2) The design of granulationplate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.

3) The reduction gears and the electrical machine adopt flexible belt. The equipment start is steady. It can slow down the impulse and enhance the working life.

4) The plate bottom adopts multiple steel plates which are firm, durable, not deforming.

5) The design of plate bottom is thicker, heavier and more stable, not need to be fixed by anchor bolts.

6) Granulator adopts high temperature quenching, doubling the working life.

7) The granulator velum line with the high strength glass steel which is antiseptic and durable.

8) This machine has high crushing power with good results, high granulator rate, smooth operation, durable and long working life, etc.

9) It is the ideal equipment for the majority of users.

2.Specification of  Granulating Fertilizer Machine

3.Working Principle of disc fertilizer granulator

 The pan revolves at a certain angle with the horizontal plane driven by the motor through reducer.. The powder will rise along with the revolving pan under the friction between the powder and the pan, on the other hand, the powder will fall down under the function of its gravity. At the same time, the powder is to the pan edge because of the centrifugal force. The powder material rolls in a certain trace under the function of these three forces. It gradually becomes the required size, then overflows by the pan edge. It has the advantages of high granulating rate, homogeneous grain, high strength, easy to operate, convenient maintenance.

4.Products:

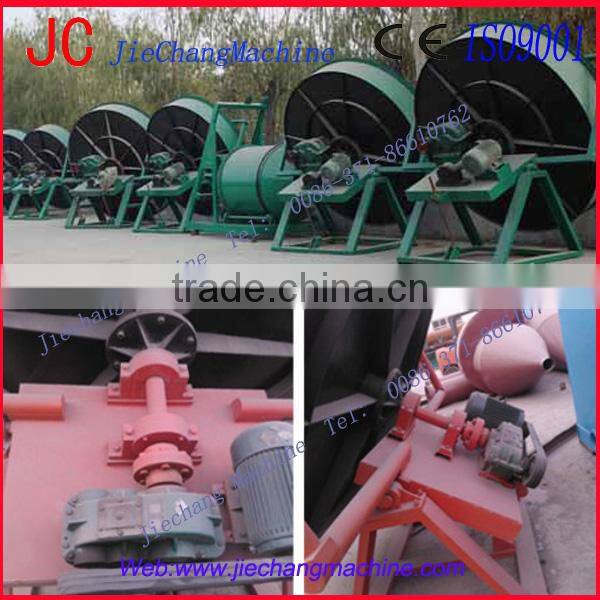

 dis Pan granulator c Granulator disc Granulator disc Granulator
