304 Teller Rosette Ring

Pingxiang Zhongying Packing Co., Ltd.
304 Teller Rosette Ring thumbnail-1
304 Teller Rosette Ring photo-1
US$ 1,520 - 2,020 MOQ: 2 Cubic Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
ZY
Model Number:
metal rosette001
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai and any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name ZY
Model Number metal rosette001
Application Packing tower
Shape Rosette003
Material Iron, 304,304L,316,316L,410
Dimensions 25in 47in 51in 59in 59in 73in 95in 145in
Chemical Composition Fe

Specifications

1)20 years professional manufacture
2)304 Teller Rosette Ring
3)Ontime delivery
4)One-stop service
5)ISO9001:2008

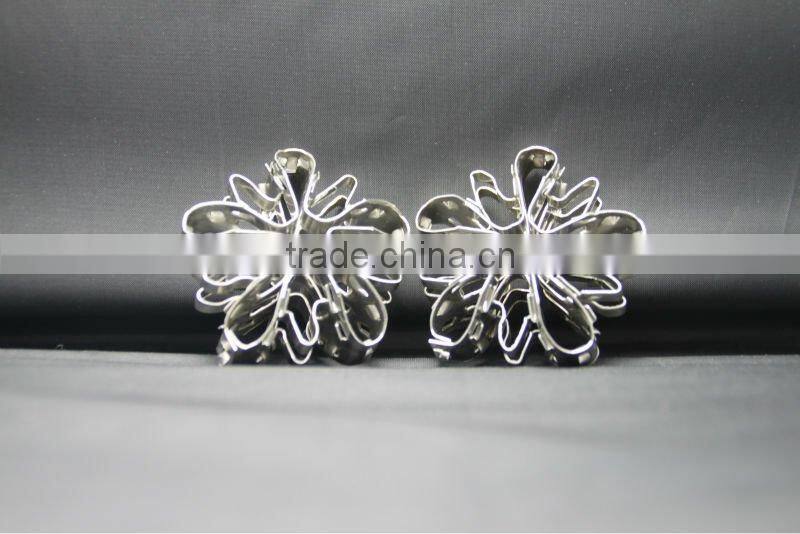

Metal Teller Rosette Ring





Materials Available:





Carbon steel, SS304, SS316, SS304L, SS316L





Metal Teller Rosette Ring Feature:



1)High free volume, large void space;



2)low pressure drop;



3)Top mass transfer performance



4)High floating point;



5)Excellent corrosion and heat resistance





Metal Teller Rosette Ring Application:



It is mainly used in washing towers, cooling towers, desulphurization towers, deaerator, drying towers and de-carbon towers,as well as facilities for sewage treatment.





Metal Teller Rosette Ring Technical Data:



Name

type

Dimension

Surface area

Void rate

Bulk quantity

Bulk density

Dry packing factor

Φ

D×H×THK

α

ε%

n

γp

α/ε3

mm

mm

m2/m3

m3/m3

pcs/ m3

kg/m3

m-1

Teller Rosette

Φ100

108×45×1.2

128.6

97.3

1760

75.6

216.6

Φ75

80×35×1.0

117.8

97.3

4700

73.2

209.7

Φ50

55×25×0.8

136.5

36.2

19180

105.5

302.3

Note: The data above is just for reference; they can be customized to meet clients' special needs.

  Metal Teller Rosette tower packing, stainless teller ring 304 Teller Rosette Ring

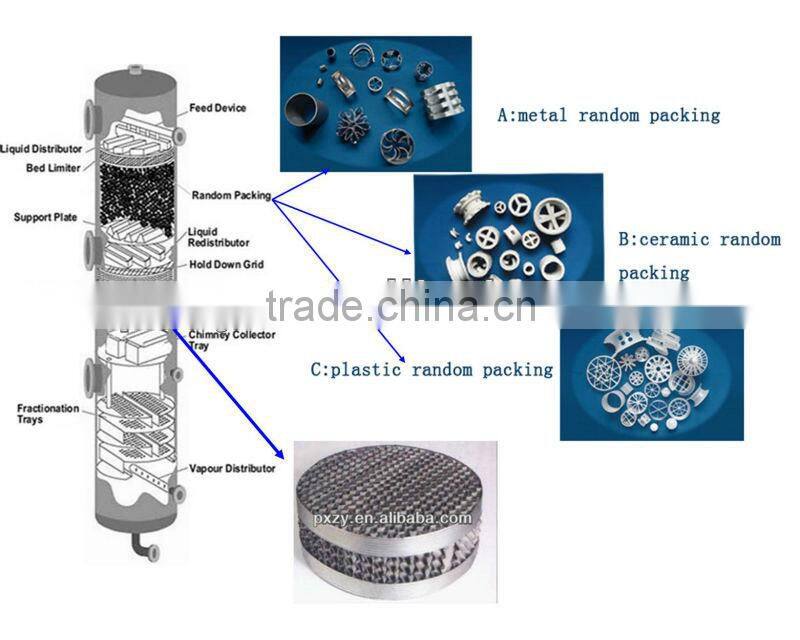

Random packing Products workflow:



304 Teller Rosette Ring

Product Picture:Metal filter media

304 Teller Rosette Ring


304 Teller Rosette Ring304 Teller Rosette Ring304 Teller Rosette Ring

304 Teller Rosette Ring

Welcome to inquiry!
