316L Pall Ring ,Metal packing.pall packing
- Shenzhen Shanghai and any port in China
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | ZY | |
| Model Number | X121 | Application | Tower Packing | |
| Shape | Roll | Material | Metal, 304,304L,410,316,316L | |
| Dimensions | 25mm | Chemical Composition | Fe |
Product Description
Specifications
1)20 years professional manufacture2)316L Pall Ring
3)4)One-stop service
5)ISO9001:2000
Metal Pall Ring Description:
Metal Pall Ring is a kind of tower packing.,In comparison with Rasching ring,the structure is improved. it is also widely used in the gas industry ,chemical industry ,rectifying tower and so on.
Metal Pall Ring Features/function:
1)High free volume, large void space;
2)low pressure drop;
3)Top mass transfer performance
4)High floating point;high separation efficiency.
5)Excellent corrosion and heat resistance
6)Easy to install or remove. Recyclable
Metal Pall Ring Application:
It's available for rectification towers, cokable systems, crude distillation unit, desulphurization system, gas liquid separator.And it is widely used in petrochemical industry, chemical industry and environmental protection, etc..
Metal pall ring Material:
carbon steel, stainless steel304 304l 410 316 316l or Aluminum alloy, etc.
Technical data
Model | Size mm | Number per volume N/m3 | Bulk density Kg/m3 | Surface area M2/m3 | Void volume % | Packing factor M-1 |
Dg16 | 16*16*0.4 | 214000 | 527 | 371 | 0.93 | 457 |
Dg25 | 25*25*0.6 | 56900 | 471 | 223 | 0.94 | 268 |
Dg38 | 38*38*0.8 | 15181 | 424 | 149 | 0.94 | 176 |
Dg50 | 50*50*1 | 6500 | 395 | 110 | 0.95 | 128 |
Dg76 | 76*76*1.5 | 1830 | 384 | 72 | 0.95 | 84 |

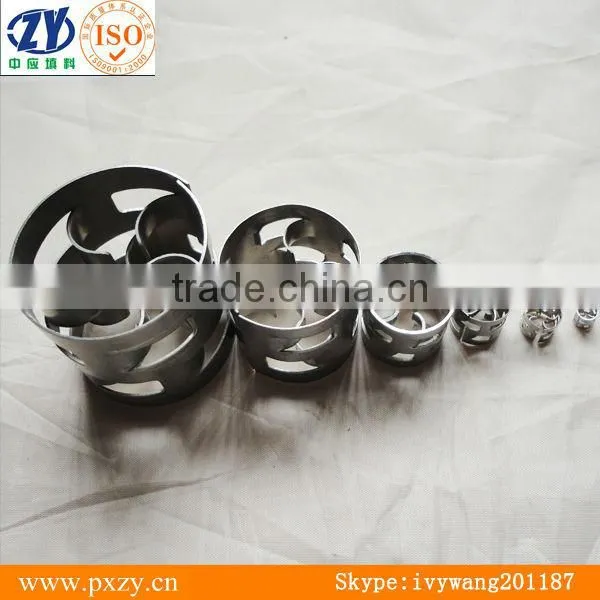

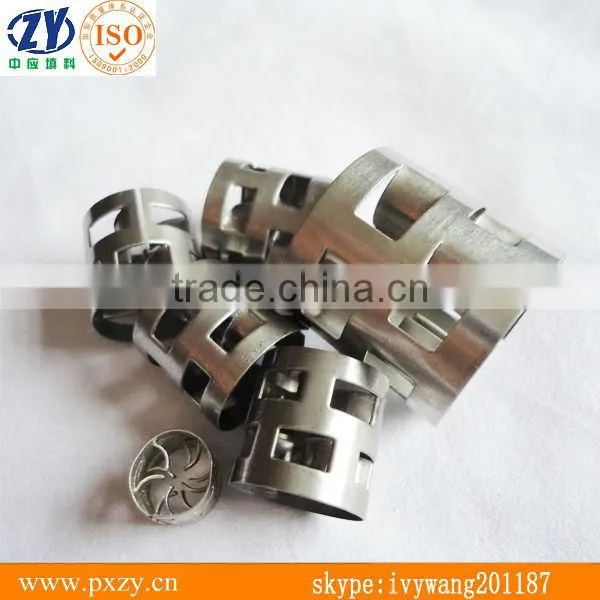

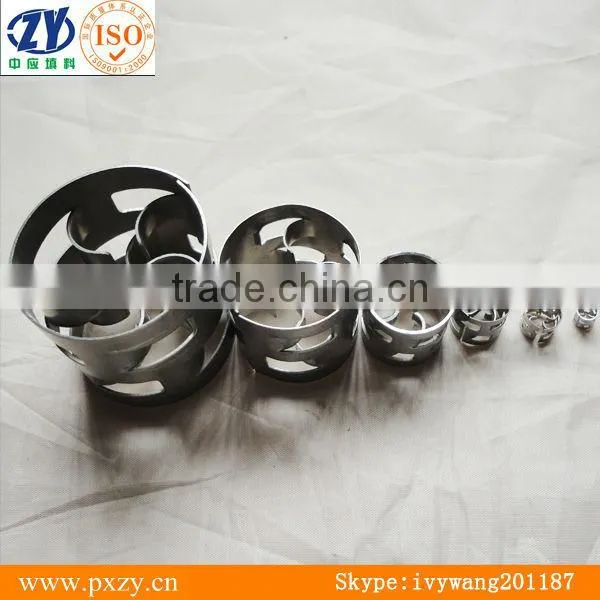

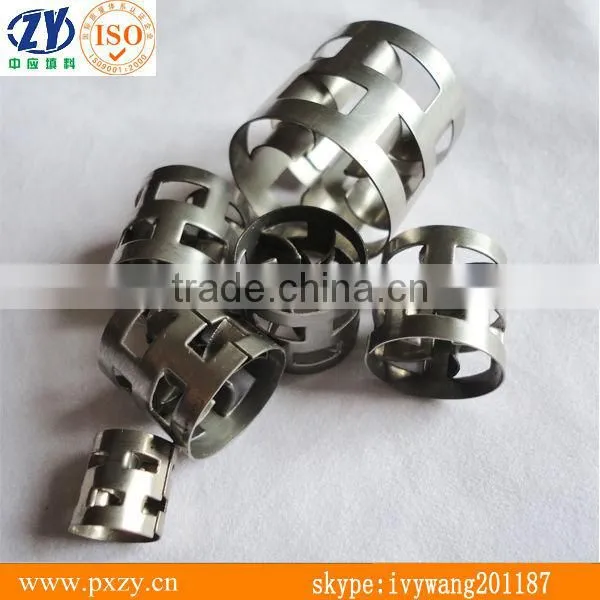

316L Pall Ring ,Metal Pall Ring
metal pall ring tower packing
Product pictures:
