Home > Products > metal tower packing > palll Ring metal ,Metal packing.pall packing,16mm,38mm,25mm,50mm,76mm

palll Ring metal ,Metal packing.pall packing,16mm,38mm,25mm,50mm,76mm

FOB Price

US$ 165 - 190 / Cubic Meter

1 Cubic Meter(Min. Order)

Port Shenzhen Shanghai and any port in China
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangxi, China	Brand Name	ZY
Model Number	X121	Application	Tower Packing
Shape	Roll	Material	Metal, 304,304L,410,316,316L
Dimensions	25mm	Chemical Composition	Fe

Product Description

Specifications

1)20 years professional manufacture
2 palll Ring metal
4)One-stop service
5)ISO9001:2000

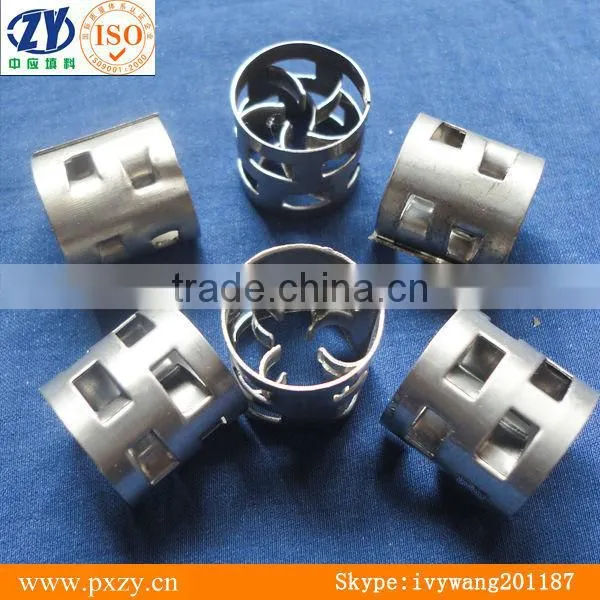

Metal Pall Ring Description:

Metal Pall Ring is a kind of tower packing.,In comparison with Rasching ring,the structure is improved. it is also widely used in the gas industry ,chemical industry ,rectifying tower and so on.

Metal Pall Ring Features/function:

1)High free volume, large void space;

2)low pressure drop;

3)Top mass transfer performance

4)High floating point;high separation efficiency

5)Excellent corrosion and heat resistance

6)Easy to install or remove. Recyclable

Metal Pall Ring Application:

It's available for rectification towers, cokable systems, crude distillation unit, desulphurization system, gas liquid separator.And it is widely used in petrochemical industry, chemical industry and environmental protection, etc..

Metal pall ring Material:

carbon steel, stainless steel304 304l 410 316 316l or Aluminum alloy, etc.

Technical data

*Model*	*Size* mm	*Number per volume* *N/m3*	*Bulk density Kg/m3*	*Surface area* *M2/m3*	*Void volume* %	*Packing factor M-1*
Dg16	16160.4	214000	527	371	0.93	457
Dg25	25250.6	56900	471	223	0.94	268
Dg38	38380.8	15181	424	149	0.94	176
Dg50	50501	6500	395	110	0.95	128
Dg76	76761.5	1830	384	72	0.95	84

Metal Pall Ring, SS palll Ring

PALL RING METAL

Product pictures:

Welcome to Inquire!
