Specifications
1)20 years professional manufacture2)metal intalox saddle ring
3)Ontime delivery
4)One-stop service
5)ISO9001

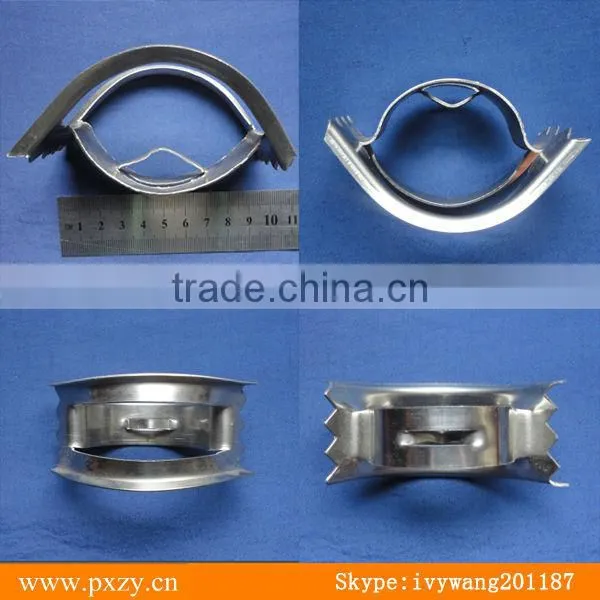

Metal Intalox Saddle Ring Features:
The shape of the Intalox Saddle Ring is a combination of the ring and the saddle,
which benefits the advantages of the two. This structure helps liquid distribution and enlarges the quantities of gas holes.
The Intalox Saddle Ring has less resistance, bigger flux and higher efficiency than the Pall Ring. It is one of the most widely
used packing with good hardness.
Metal Intalox Saddle Ring Feature:
It has low pressure, big flux and high efficiency of mass transfer, and it is easy to manipulate.
Metal Intalox Saddle Ring Application: Distillation, Gas absorption, Deabsorption system
Metal Intalox Saddle Ring Technical data
Model |
Size mm |
Number per volume N/m3 |
Bulk density Kg/m3 |
Surface area M2/m3 |
Void volume % |
Packing factor M-1 |
Dg25 |
25*20*0.5 |
87720 |
314 |
179 |
0.96 |
202 |
Dg38 |
38*24*0.6 |
38160 |
267 |
127 |
0.96 |
141 |
Dg50 |
50*28*0.8 |
11310 |
228 |
82 |
0.971 |
90 |
Dg76 |
76*48*1 |
4250 |
197 |
57 |
0.97 |
61 |
Random intalox saddle ring, metal packing for Gas absorption

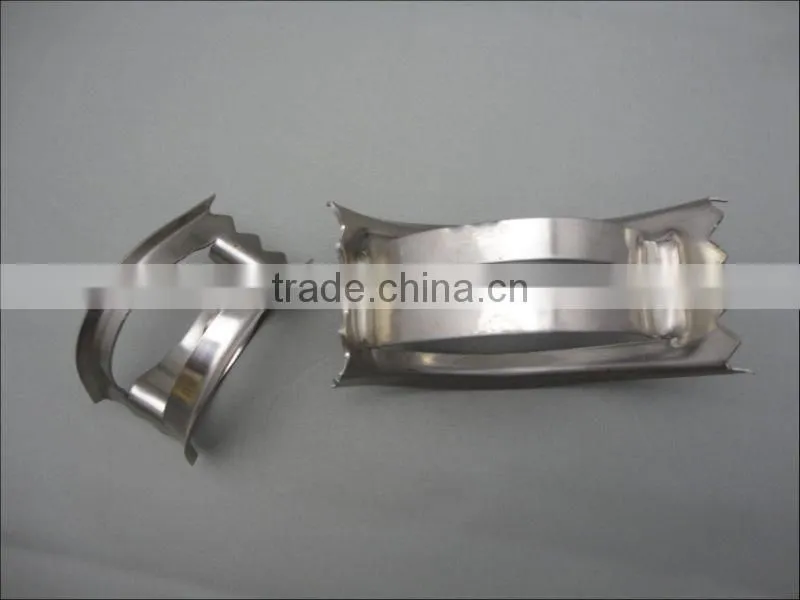

Metal intalox saddle ring
Certification:
welcome to inquiry!
