Ceramic Block for Heat Exchanger(Oven, Furnace)

Specifications

1.Size:100*100*100,150*150*75/150/300mm
2.Ceramic Honeycomb block material:Cordierite,Mullite,Alumina,Corundum
3.ISO9001:2008.

                  Ceramic Block for Heat Exchanger(Oven, Furnace) PRODUCT SHOW

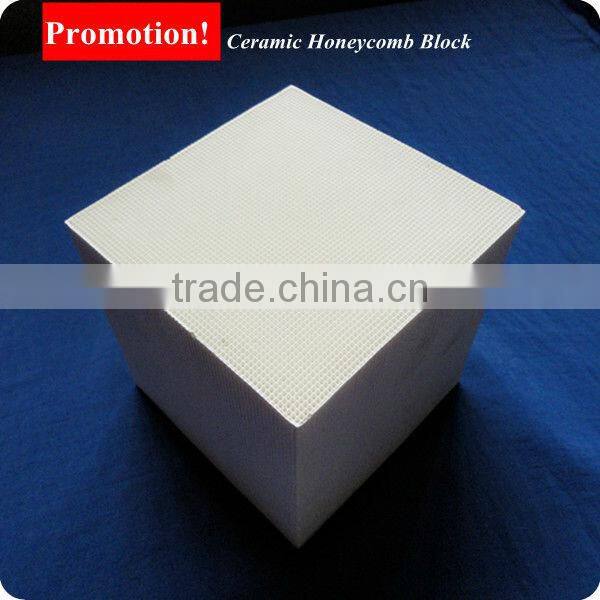

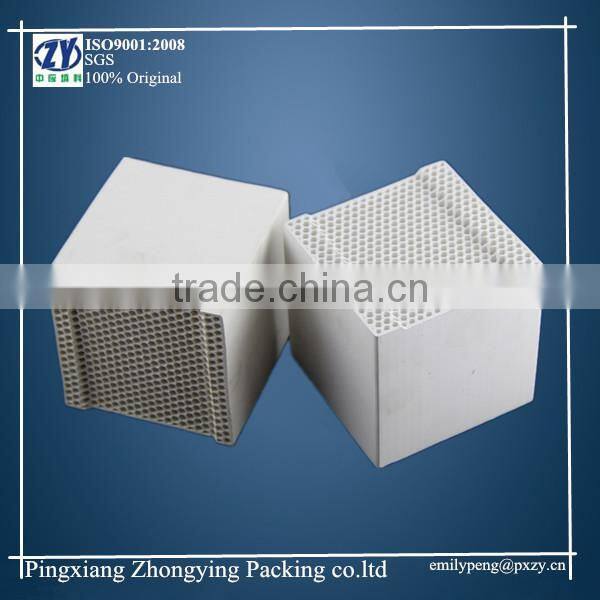

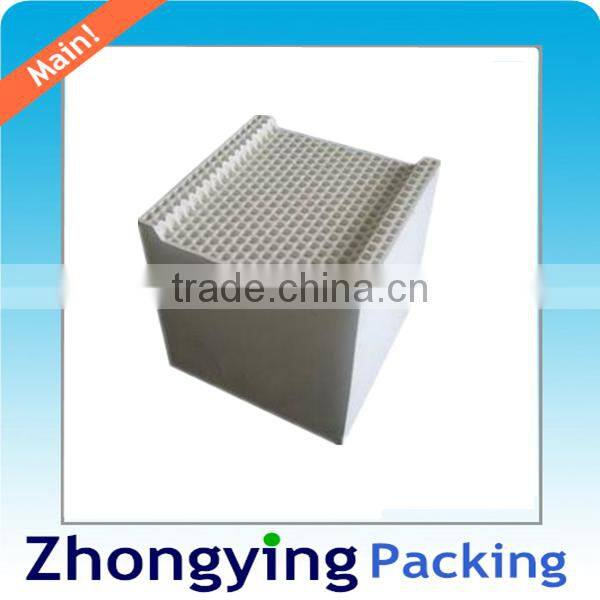

Ceramic Block for Heat Exchanger(Oven, Furnace)  Introduction:

• The honeycomb ceramic as heat exchange media is the key part for heat storage HTAC
• (High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, RTO (Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot blast stove in metallurgical machine building and all kinds of ceramic cellar stove, glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove, other industrial stove cellar, too.

Honeycomb ceramics as heat storage body, by the advantage of large specific surface area, small heat resistance, good thermal conductivity, excellent thermal shock resistance, realize quickly exchanging heat; reducing energy in the strict sense (up to 97% of true thermal energy can be recovery and also it can absorb NOx more than 40%).



Ceramic Block for Heat Exchanger(Oven, Furnace)  Technical Data



Dimension (mm)	Quantity of cells	Wall thickness (mm)	Width of cell (mm)	Surface area (m2/m3)	Void section (%)	Weight per piece (kg)
150*150*300	25*25	1	4.96	580	68	4.7
150*150*300	40*40	0.7	3.03	891	65	5.5
150*150*300	50*50	0.6	2.39	1090	63	6.1
150*150*300	60*60	0.5	1.99	1303	63	6.3
150*100*100	40*40	1	2.5	784	49	1.2
150*100*100	33*33	1.1	3	691	52	1.13
150*100*100	20*20	2	5	392	49	1.04
100*100*100	40*40	1	2.5	784	49	0.81
100*100*100	33*33	1.1	3	691	52	0.75
100*100*100	20*20	2	5	392	49	0.68



Ceramic Block for Heat Exchanger(Oven, Furnace)  specification index



Name		Alumina	Dense Cordierite	Porous Cordierite	Cordierite-Mullite	Dense Alumina	Mullite	Corundum mullite
Density(g/cm3)		2.0~2.3	2.1 ~2.5	1.5 ~1.9	1.8~2.3	2.4 ~2.7	2.0 ~2.5	2.3 ~2.7
Coefficient of heat expansion(×10-6K-1)(20~800°C)		≤5	≤3.5	≤3.0	≤3.5	≤5	≤5	≤6
Specific Heat (J/Kg.K)(20~1000°C)		900~1150	900~1100	900~1100	900~1150	1000~1150	1000~1150	1100 ~1300
Thermal Conductivity (W/m.k) (20~1000°C)		1.5~2.0	1.5~2.5	1.2~1.8	1.5~2.0	1.5~2.5	1.5~2.0	1.5~2.5
Impact Thermal Resistance(°C/min)		≥300	≥300	≥350	≥350	≥300	≥350	≥300
Max. Working Tem.(°C)		1350	1300	1300	1320	1350	1450	1550
Water absorption(%)		15-25	≤2	15~25	15 ~25	≤2	15~25	15 ~25
Compressive strength(MPa)		≥28	≥28	≥25	≥25	≥28	≥28	≥30
Chemical composition (%)	Al2O3	55 ~65	25 ~38	28 ~38	40~52	55 ~65	60 ~70	70 ~80
	SiO2	25~35	50 ~60	45 ~55	45 ~55	25 ~35	25 ~35	15 ~25
	MgO	1~3	5 ~10	11 ~14	7~9	3~5	0 ~1	0 ~2
	others	<5	<5	<5	<5	<5	<5	<5

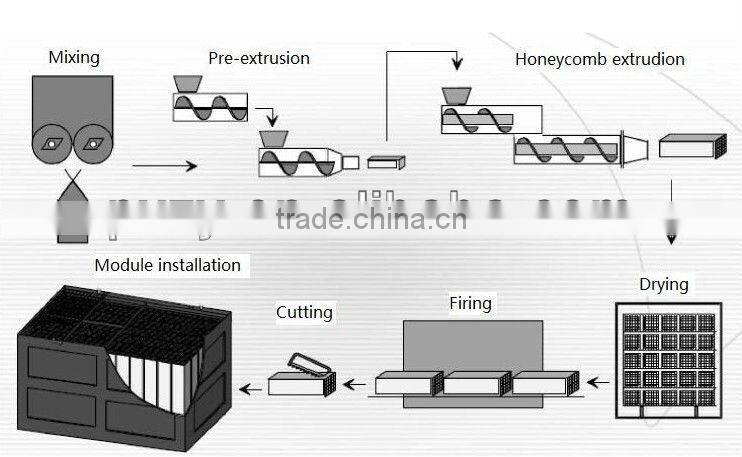

Ceramic Honeycomb Block Production and Sample Photo:
