Ceramic Tri-Y packing Rings with high quality
- 1000 Metric Ton / Metric Tons per Month
- Shenzhen Shanghai and any port in China
- T/T L/C D/P D/A Credit Card
You May Like
-
29*21 small size ceramic ring,unique ceramic ring for packing
-
Ceramic Raschig Ring, Ceramic Cylinder Rings
-
High Quality Ceramic intalox saddle ring tower packing
-
Ceramic Cross Partition Ring for absoring, cooling, washing and recovery
-
High Quality Ceramic Tri-Y Ring
-
Ceramic Cross Partition Ring for tower packing
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Rings | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | 25.38.50mm | Brand Name | ZY |
Product Description
Specifications
1)20 years professional manufacture2)unique ceramic ring
3)Ontime delivery
4)One-stop service
5)ISO9001:2000
Ceramic small size ceramic ring, unique ceramic ring is commonly used in the refinery, gas processing, chemical, and environmental process industries. It has high density and excellent heat and acid resistance and it withstands the corrosion of various inorganic acid, organic acid and organic solvents except for hydrofluoric acid.
It is widely used in drying towers, ab sorbing towers, cooling towes, washing towers, regenerative tower and desulfurization towers in chemical engineering, metallurgy, coal gas, acid and oxygen production, pharmacy and other industries.
Size available is: 25mm,38mm and 50mm.
Ceramic Tri-Y Ring be widely used in the tower of dry,absorbing,cooling,washing and recovery etc.in chemical,petrochemical and metallurgical industry.
Technical data of Ceramic Tri-pac Rings
Narmial size | Diameter×Height×Thickness | surface area m2/m3 | Void space % | Bulk density Kg/m3 | No.elements per/m3 | Packing factor m-1 |
Φ25 | 25×13×2 | 240 | 74 | 760 | 87000 | 390 |
Φ38 | 38×20×3 | 160 | 75 | 740 | 27600 | 260 |
Φ50 | 50×30×4 | 138 | 75 | 745 | 10100 | 233 |
Φ80 | 80×50×9 | 90 | 70 | 710 | 1910 | 262 |

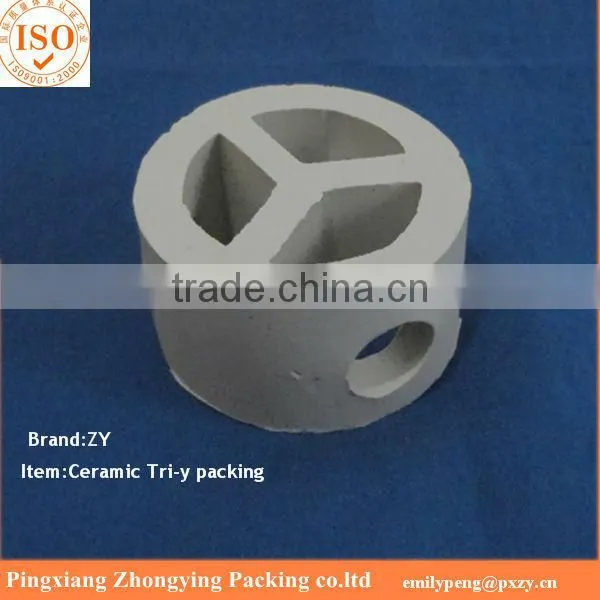

Ceramic Tri-pac Packing Sample Photo:
