Iron ore used jaw crusher price
Detailed Description of jaw crusher machine :
iron ore used jaw crusher price ,widly used jaw crusher machine for iron ore ,Jaw crusher (jaw-breaking for short, PE new jaw-breaking), widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industry and many other departments. Jaw crusher can crush different kinds of materials which the compressive strength is not more than 320MPa, is the first choice of primary crushing equipment.
The Main Features of Stone jaw crusher machine :
1)High capacity
2)High reliability
3)Adjustable for easy wear parts
4)Over-loading protection
5)Simple structure and easy to operate
6)Easy replacement of wear and spare parts
7)Energy-saving equipment: Stand-alone energy-saving 15% ~ 30%, the system energy-saving more than doubled
8)low noise and less dust

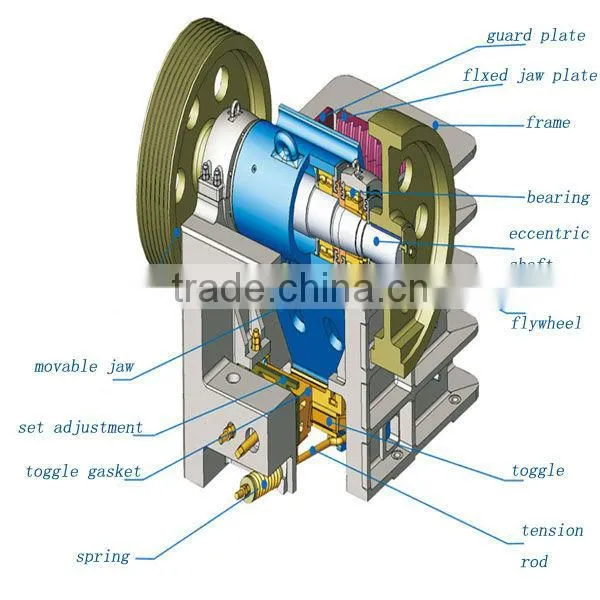

Working Principle and Structure of jaw crusher machine
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Technical Parameters of Stone jaw crusher machine :
Model |
Technical specification |
Power |
Overall Dimensions (mm) |
Weight |
|||
Max. Feeding |
Adjustment scopes |
Capacity |
Rotating speed of main shaft |
||||
PEF150×250 |
125 |
10-40 |
1-3 |
285 |
7.5 |
922×745×933 |
550 |
PEF200×300 |
165 |
20-70 |
2-8 |
265 |
11 |
1056×1100×1120 |
680 |
PEF250×400 |
210 |
20-80 |
5-20 |
310 |
18.5 |
1108×1142×1392 |
2600 |
PEF400×600 |
340 |
40-90 |
10-40 |
275 |
30 |
1700×1732×1392 |
6200 |
PEF350×750 |
290 |
30-55 |
20-50 |
300 |
37 |
1900×1806×1808 |
7900 |
PEF500×750 |
425 |
50-100 |
34-68 |
275 |
55 |
2050×1860×2145 |
10320 |
PEF600×900 |
480 |
75-200 |
40-120 |
255 |
75 |
2792×2168×2250 |
16600 |
PEF750×1060 |
630 |
80-200 |
80-160 |
250 |
90 |
4180×2560×3070 |
27530 |
PEF900×1200 |
750 |
100-200 |
110-200 |
250 |
110 |
5200×2900×3500 |
46000 |
PEF1200×1500 |
1020 |
150-300 |
220-400 |
180 |
160 |
4200×3300×3500 |
106000 |
PEX150×750 |
125 |
10-40 |
5-15 |
300 |
15 |
1220×1480×1180 |
2800 |
PEX250×1000 |
210 |
15-55 |
10-32 |
300 |
37 |
1580×1992×1380 |
6350 |
PEX250×1200 |
210 |
15-60 |
12-38 |
300 |
37 |
1530×2192×1380 |
7800 |
PEX300×1300 |
250 |
20-90 |
16-65 |
300 |
55 |
1930×2400×1747 |
10600 |
Our service to help you finish your production line :
Taking photos for the whole loading process each container,to make sure every parts loaded into container.
About US HENAN MACHINERY & EQUIPMENT COMPANY LIMITED :
In order to give you a responsible quotation, you can inform us the following information:
1). What's the material you are going to deal with?
2). What's the granularity of the material?
3). What's the granularity of the final products are you going to achive?
4). What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
...
