Durable Cast Jaw Plate Used In Granite Mining Machine
- 20 Set / Sets per Month
- China Main ports
- T/T L/C D/P D/A Credit Card PayPal
- Portable Stone Quarry Jaw Crusher Specifications On Sale
- Quarry Crusher Plant For Stone Crushing
- Glass Crusher Machine--pe Series Jaw Crusher
- Stone Crushing Machine/rock Crusher Used In Quarry
- 320tph New Design Rock jaw Crusher For Sale From Henan
- Hard Portable Small Stone Crusher Mahine Hot Sale In Africa
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | Sand Making Production |
Motor Type: | AC Motor | Power(W): | 7-60kw | Capacity(t/h): | 1-300 |
Place of Origin: | Henan, China | Brand Name: | MS | Model Number: | PEF1200*1500 |
Weight: | 0.7-12t | Certification: | ISO9001:2008/IQnet | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Nude packing or by wooden case in container,except too heavy and big,once exceed container limit should shipped by bulk carrier.
Product Description
Durable Cast Jaw Plate Used In Granite Mining Machine
Detailed Description :
Jaw crusher (jaw-breaking for short, PE new jaw-breaking), widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industry and many other departments. Jaw crusher can crush different kinds of materials which the compressive strength is not more than 320MPa, is the first choice of primary crushing equipment.
The Main Features&parts :
- High capacity
- High reliability
- Adjustable for easy wear parts
- Over-loading protection
- Simple structure and easy to operate
- Easy replacement of wear and spare parts
- Energy-saving equipment: Stand-alone energy-saving 15% ~ 30%, the system energy-saving more than doubled
- low noise and less dust

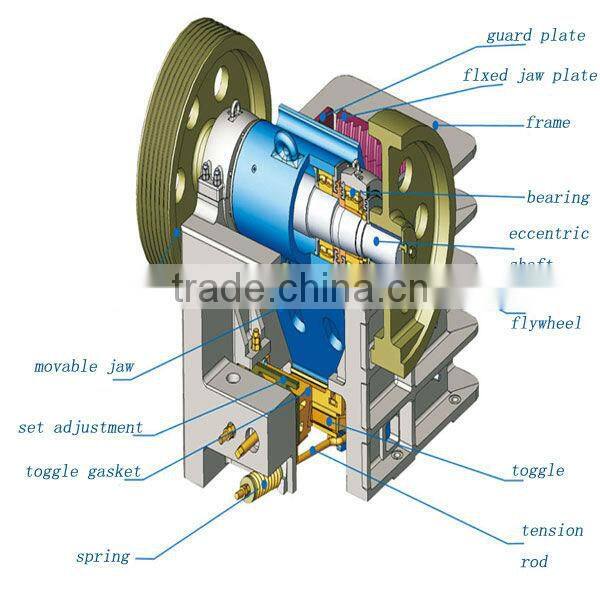

Working Principle and Structure :
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Technical Parameters :
Model | Technical specification |
Power | Overall Dimensions (mm) | Weight | |||
Max. Feeding | Adjustment scopes | Capacity | Rotating speed of main shaft | ||||
PEF150×250 | 125 | 10-40 | 1-3 | 285 | 7.5 | 922×745×933 | 550 |
PEF200×300 | 165 | 20-70 | 2-8 | 265 | 11 | 1056×1100×1120 | 680 |
PEF250×400 | 210 | 20-80 | 5-20 | 310 | 18.5 | 1108×1142×1392 | 2600 |
PEF400×600 | 340 | 40-90 | 10-40 | 275 | 30 | 1700×1732×1392 | 6200 |
PEF350×750 | 290 | 30-55 | 20-50 | 300 | 37 | 1900×1806×1808 | 7900 |
PEF500×750 | 425 | 50-100 | 34-68 | 275 | 55 | 2050×1860×2145 | 10320 |
PEF600×900 | 480 | 75-200 | 40-120 | 255 | 75 | 2792×2168×2250 | 16600 |
PEF750×1060 | 630 | 80-200 | 80-160 | 250 | 90 | 4180×2560×3070 | 27530 |
PEF900×1200 | 750 | 100-200 | 110-200 | 250 | 110 | 5200×2900×3500 | 46000 |
PEF1200×1500 | 1020 | 150-300 | 220-400 | 180 | 160 | 4200×3300×3500 | 106000 |
PEX150×750 | 125 | 10-40 | 5-15 | 300 | 15 | 1220×1480×1180 | 2800 |
PEX250×1000 | 210 | 15-55 | 10-32 | 300 | 37 | 1580×1992×1380 | 6350 |
PEX250×1200 | 210 | 15-60 | 12-38 | 300 | 37 | 1530×2192×1380 | 7800 |
PEX300×1300 | 250 | 20-90 | 16-65 | 300 | 55 | 1930×2400×1747 | 10600 |
Where jaw crusher used for:
Free to help finishing your production technology :
We assured fast delivery time:
We have fully confidence about our products:
Why choose us :
Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing th e most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
ECM,ISO,CE,QA Certificates for Stone Jaw Crusher:
What do we need:
In order to give you a responsible quotation, pleas inform us the following information:
1). What's the material you are going to deal with?
2). What's the granularity of the material?
3). What's the granularity of the final products are you going to achive?
4). What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
....
Company Profile
HENAN MACHINERY & EQUIPMENT COMPANY LIMITED is a manufacturer of machines with well-equipped testing equipment and strong technical force.We own import & export rights and mainly produces large and medium-sized mining machinery, refining equipment,briquetting machine and girder transporting vehicle. There are 6 branches company and a research institute,Now, We integrate the research, development, production, and sale together.
Our office is located at No. 1202, Floor 12, Unit 1, Bldg. No. 24, Shangwu Neihuan Road, Zhengdong New District.Our headquarters, covering 65,000 square meters,owning more than 60 sets of heavy processing equipment There are more than 800 workers including 48 administrators with secondary and senior occupational titles and engineering technicians in our head office.
We lay much emphasis on the quality and clients. We serve clients
with the quality guideline of being responsible for every working procedure,product and client. All of the products have passed the authentication of ISO9001.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in machinery and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs,sales to Iran, Pakistan, India, Vietnam, Singapore, Russia,Australia and have long-term customers to cooperate with us.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
