The thermal dryer description
clay rotary dryer is special designed for sticky material, such as clay, fertilizer, Kaolin and so on. the special designed in the lifting blade, which is prevent matreial from sticking to the dryer wall, and make the material drying well and quick
The thermal rotary dryer is consist of rotary body, lifting blade, driving device, supporting device and sealing ring.
The thermal dryer features
1) simple and reasonable structure, it's easy to operate and maintain
2) high efficiency, it can reduce raw material moisture from 50-60% to 10-15%
3) various fuels can be used, such as coal, natural gas,
4) widely usages, different blades can be changed to meet different requirements and raw material.
thermal rotary dryer technical data
Model |
Inner diameter |
length |
obliquity |
Motor power (kw) |
speed |
evaporation capacity |
MS-12120 |
1.2 |
12 |
3-5% |
≥11 |
3-8 |
0.5-1 |
MS-15140 |
1.5 |
14 |
≥15 |
1.5-2.5 |
||
15 | ||||||
16 | ||||||
MS-18150 |
1.8 |
15 |
≥18.5 |
2.5-4 |
||
16 | ||||||
18 | ||||||
MS-20180 |
2.0 |
18 |
≥22 |
4-6 |
||
20 | ||||||
22 | ||||||
MS-22180 |
2.2 |
18 |
≥30 |
5-8 |
||
20 | ||||||
MS-25180 |
2.5 |
18 |
≥40 |
3-5 |
7-10 |
|
20 | ||||||
22 | ||||||
MS-26180 |
2.6 |
18 |
≥45 |
8-11 |
||
20 | ||||||
22 |

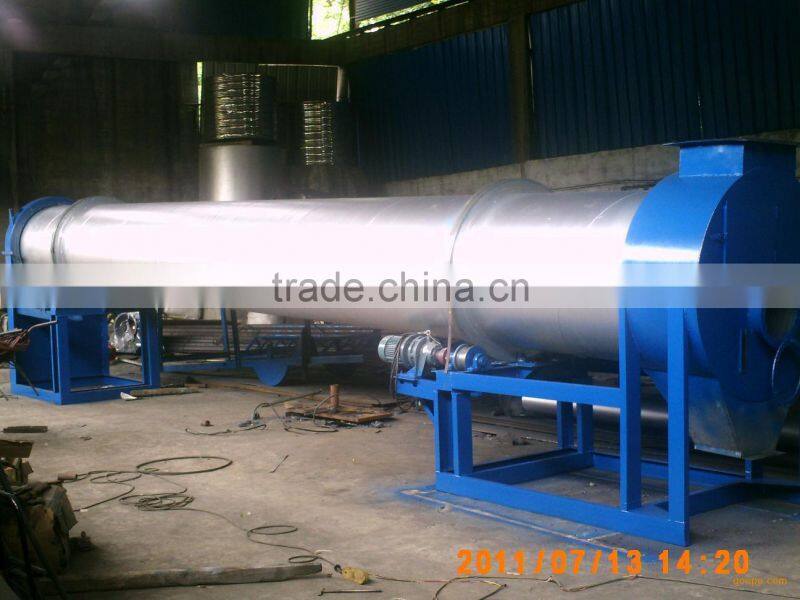

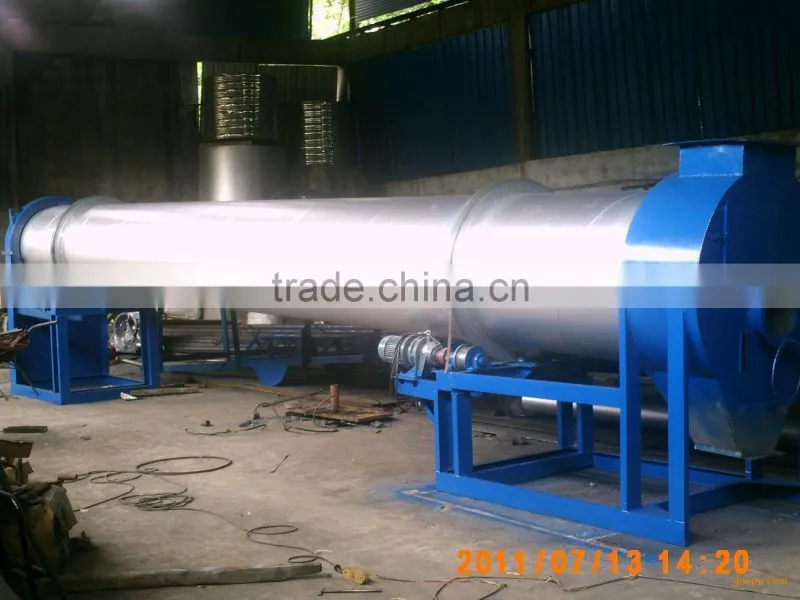

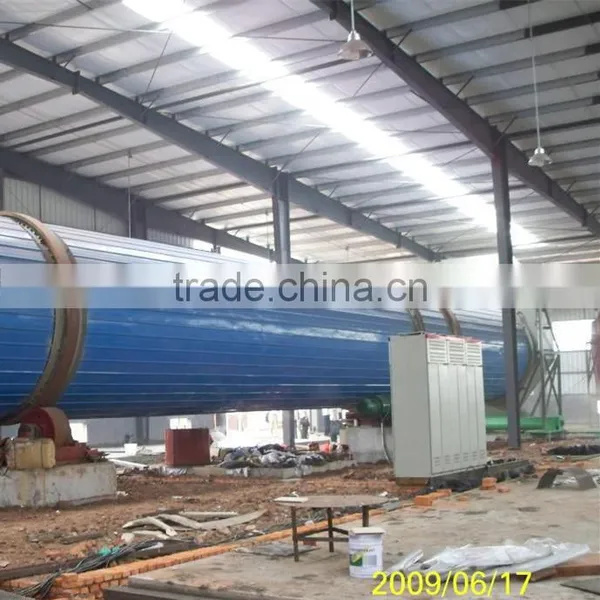

More pictures of the clay dryer
....
