Copper Ore Lead Zinc Flotation Machine Separator In Upgrading Unit

Nude & Bulk,Or as your requested

Copper Ore Lead Zinc Flotation Machine Separator In Upgrading Unit

Our Flotation Machine's Advantages:

1.With a light structure,it's easy to install the bearing body with a good perpendicularity.

2.Wear resistance,long service life and powerful agitating force.

3.U-shaped tank reduces the ore accumulated at the bottom of the tank.

4.With light main shaft parts and the stator installed at the bottom of the tank,it's easy to install them.

 The Flow Chart for Beneficiation Production Line:

1. Application of Sf Series Mining Copper Ore Flotation Machine:

Lead zinc froth Flotation machine is widely used for roughing, concentrating and counter-flotation of nonferrous metal that includes copper, lead, zinc, nickel and molybdenum, ferrous metal and nonmetallic mineral.

2. Working principle of  Sf Series Mining Copper Ore Flotation Machine:

(1) After intensively mixed, the pulp and medicaments are fed to the groove bottom of the first tank.

(2) When the impeller of the flotation machine begins to rotate, negative pressure is formed, making the air and pulps at the bottom and middle part of the tank enter the mixing zone. The pulp, air and medicaments are then mixed in the mixing zone.

(3) As a result of the cenrifugal force, the blended pulps are lead to the mineralization area. The air is in full contact with the coal particle and forms mineralized discharged by the scraping tool. Finally, clean coal foam is produced by this flotation machine.

(4) Coal particles that are not mineralized will be remixed, re-mineralized and re-separate through the recycle hole and the upper intake.

(5) The left pulp that are not sucked by the impeller enters intor the third tank after going through the process of the first tank, thus, flotation machine runs in cycle and discharges ore pulp through the tailing box of the flotation machine.

 The flow chart of molybdemum for reference :

3. Advantages of  Sf Series Mining Copper Ore Flotation Machine:

It increase concentrate grade by 4-6%.

It increase cycling rate by 8%.

It increase production by 12%.

 The main parts of  Flotation Machine:

4. Technical parameters of  Sf Series Mining Copper Ore Flotation Machine:

Technical parameters of XJK Series Mining Copper Ore Flotation Machine:

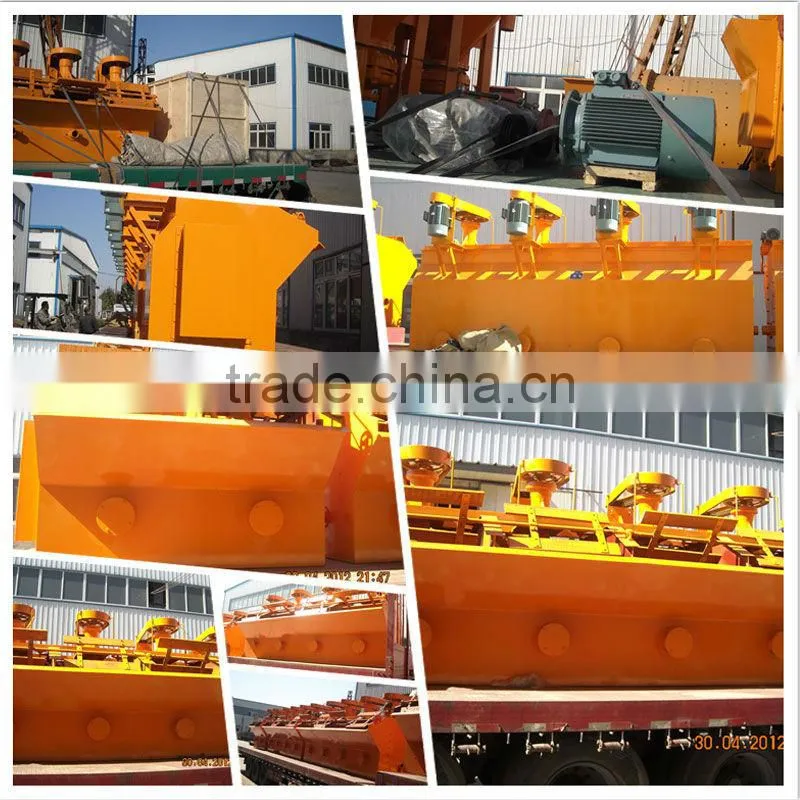

 More Photos about flotation machine:

We have comparable advantages on shipping :

Whole machines in the whole Beneficiation production line :

What do we do :

What we care:

 1. Good Corporate reputation

 2. Product Quality

 3. Professional Technical support

 4. Mutual benefit and win-win result business partner

Our certificate :

Why choose us ?

 Pre-sales Service
   Offering comprehensive technical and business consultation services;
   Proposing th e most suitable scheme and equipment for our clients

   Designing and fabricating targeted products according to the special requirements of clients;
   Training periodically high qualified service technician.

After-sales Service
  Highly inspecting equipments in every working procedure, quality comes first;
  Fast & Safe Delivery;
  Assisting our clients for foundation construction of equipments;
  Dispatching engineers to install and debug equipments;
  Training the first-line operators on site;
  Regularly visit clients to solve production problems;
  Providing life-long maintenance service;
  Providing technical exchanging;

....
