Experimental Furnace 1200℃ China Industrial Furnace

Experimental Furnace 1200℃ China Industrial Furnace thumbnail-1
Experimental Furnace 1200℃ China Industrial Furnace thumbnail-2
Experimental Furnace 1200℃ China Industrial Furnace thumbnail-3
Experimental Furnace 1200℃ China Industrial Furnace photo-1
Experimental Furnace 1200℃ China Industrial Furnace photo-2
Experimental Furnace 1200℃ China Industrial Furnace photo-3
US$ 2000 - 2500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
xing qiang
Place of Origin:
China
Model Number:
XQ-8-12
Contact Supplier Request Quote Chat Now
Yixing City Xing Qiang Furnace Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shang hai
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name xing qiang
Place of Origin China
Model Number XQ-8-12
Certification 9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 18 months
Weight 200kg
Dimension(L*W*H) 500 * 250 * 250mm
Voltage 380v
Condition New
Power(W) 8kw

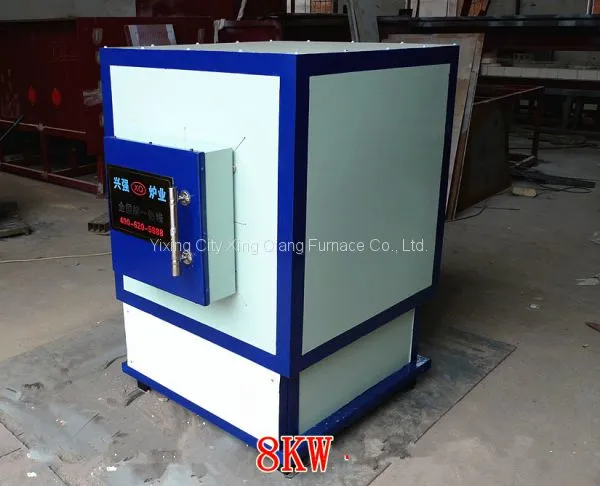

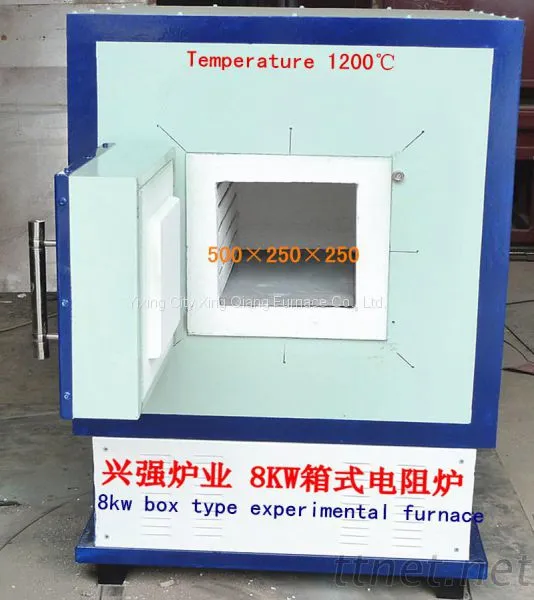

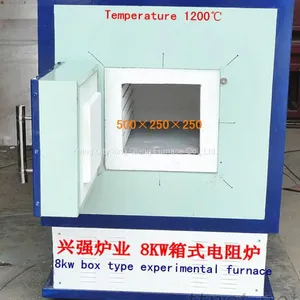

Hing qiang furnace company is now offers 8KW 1200ºC box type resistance furnace, the equipment for the whole fiber structure, the use of advanced technology carefully designed, beautiful appearance, energy saving 30%-50%
1: hearth dimension: 500 * 250 * 250mm
2 :design temperature: 1200ºC
3 :working temperature: 1100ºC
4: the temperature control accuracy of less than 1 DEG c;
5: the temperature less than 2 DEG C:
6: temperature control group: 1 groups
7 :Dimension: 1100 * 800 * 1200 (L * W * H *) mm
8 :heating time: 1.5 hours
9: heating time and heat preservation time can be arbitrarily set, design can be adjusted to 50 stages of     programming, according to the specific product process settings
10: heating mode: electric heating 3 surface heating
11: high temperature electric heating wire heating element
12: rated power: 8 KW
13: heat insulation power: 4 KW

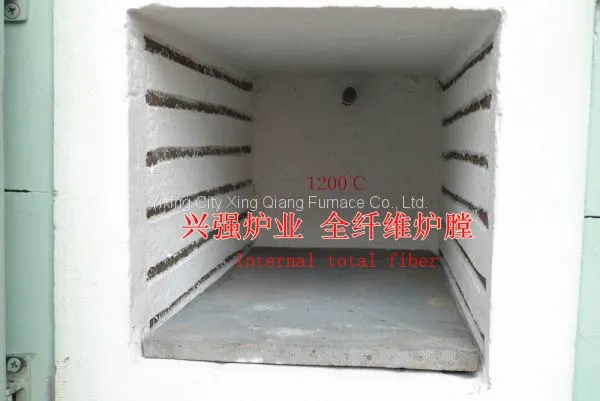

14: hearth structure: whole fiber furnace, lining below made of bricks, furnace placed beneath a silicon carbide board, convenient stacking of sintered products,
When used, it is not easy to damage the furnace.
15: insulation material: all fiber cotton
16: control methods: the use of sophisticated modules, PID regulation
17: equipment structure: steel welding in cotton fiber insulation, door door for manual side
18: of the total weight: 200 kg
19: warranty period; 18 months
     Enterprises through the 9001: ISO quality system certification
Welcome to inquire the national unified free hotline straight line+86 18961550888

E-mail：web@yxxqly.com

Q Q:   564483410


Product Tags: Experimental furnace , Electric heating furnace , China industrial furnace
