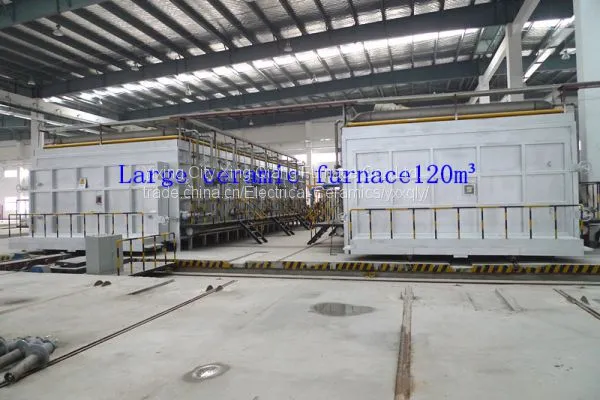

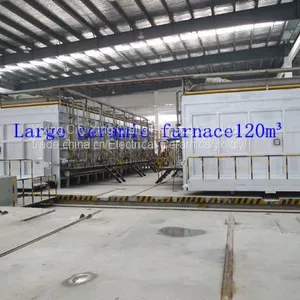

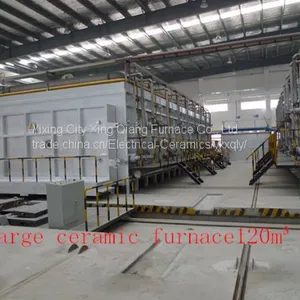

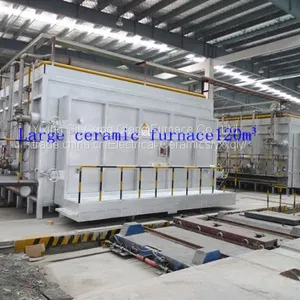

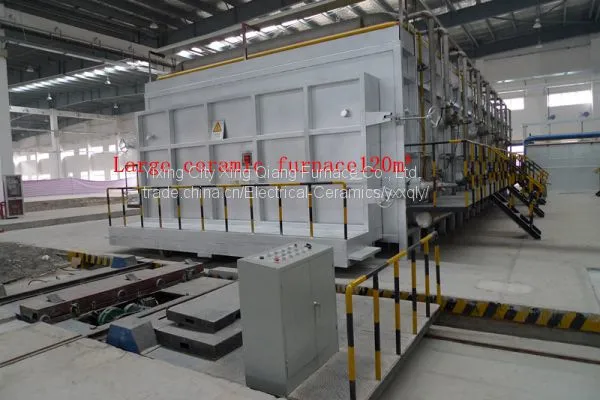

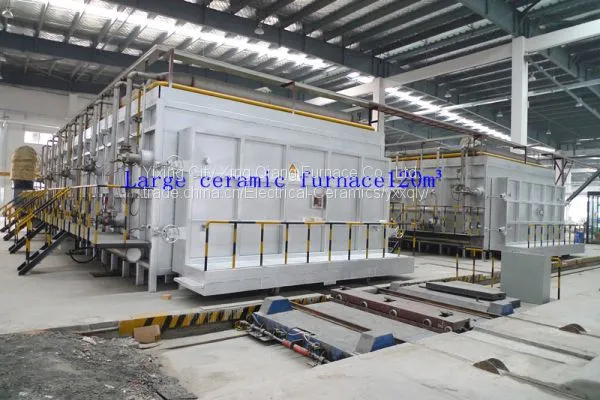

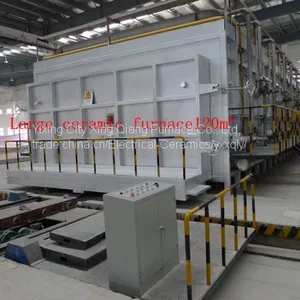

Xing qiang furnace industry Co. Ltd. 120m fand preferential supply of large ceramic furnace
1: furnace volume: 113m3,
2: charging size: 15000 x 4500 x 1650
3: size: 16000 x 5600 x 2800.

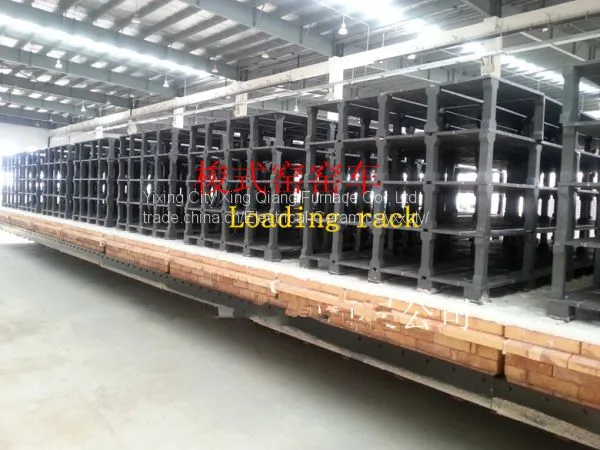

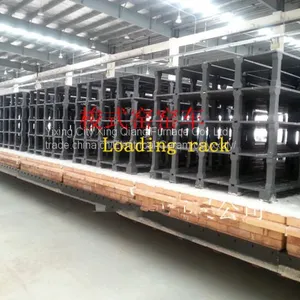

4: the contents of the furnace car: 8 spare 8 outside
5: furnace car size: 4270 x 800 x 1844
6: burning nozzle number: 18; (high speed energy saving)
7: rated temperature: 1500;
8: working temperature: 1300
9: baked products: custom;
10: heating method: natural gas or liquefied gas
11: control mode: automatic
12: firing atmosphere: oxidizing atmosphere, reducing atmosphere;
13: heating speed: 200 degrees C /h,
14: the kiln door form: and the kiln car body
15: smoke exhaust mode: under the smoke
16: the furnace wall structure: mullite brick and high pure cotton fiber
17: the same: flat roof structure and kiln wall structure.
18: door structure: the fiber module, the external use of fixed metal frame.
19: the number of furnace vehicles: a total of 16 kiln car
20: equipment cost: 3 million 500 thousand
21: surface temperature: the top is not more than 50 degrees, the side is not more than 40 degrees Celsius, in line with the requirements of the national standard;
Enterprises through the 9001:2008 ISO quality system certification
