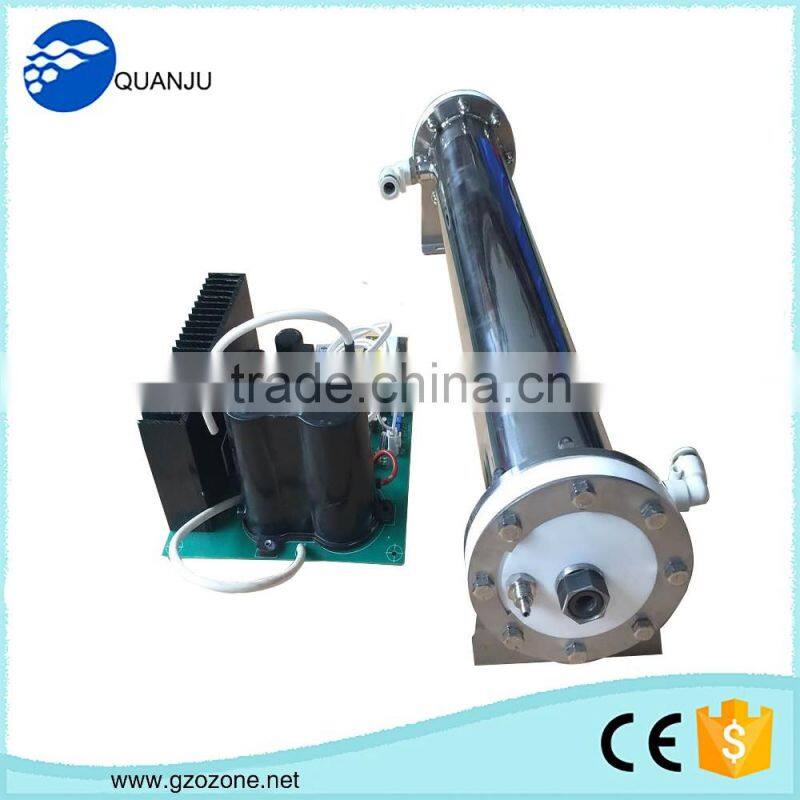

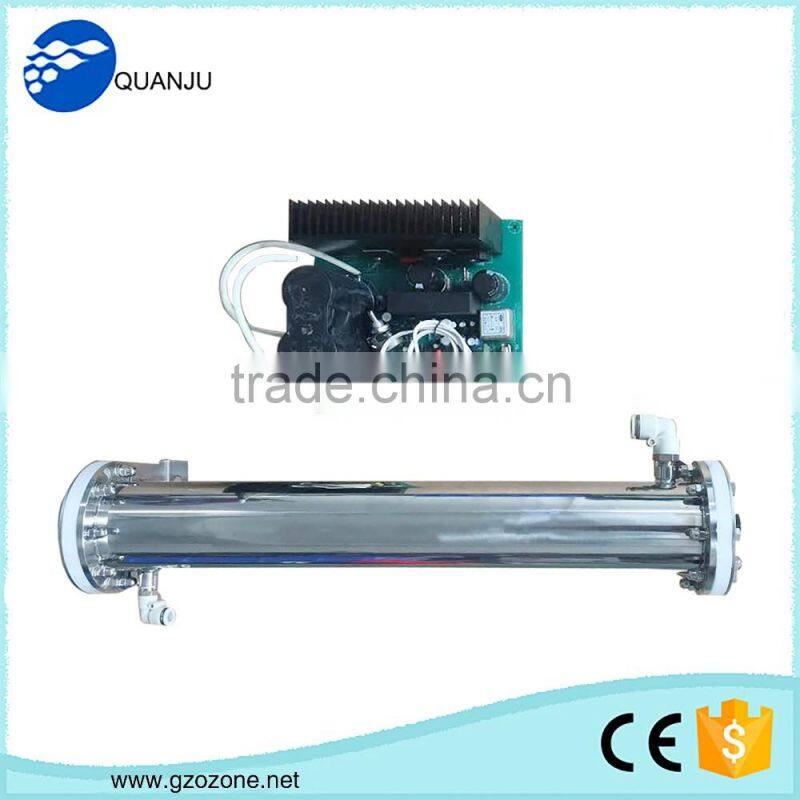

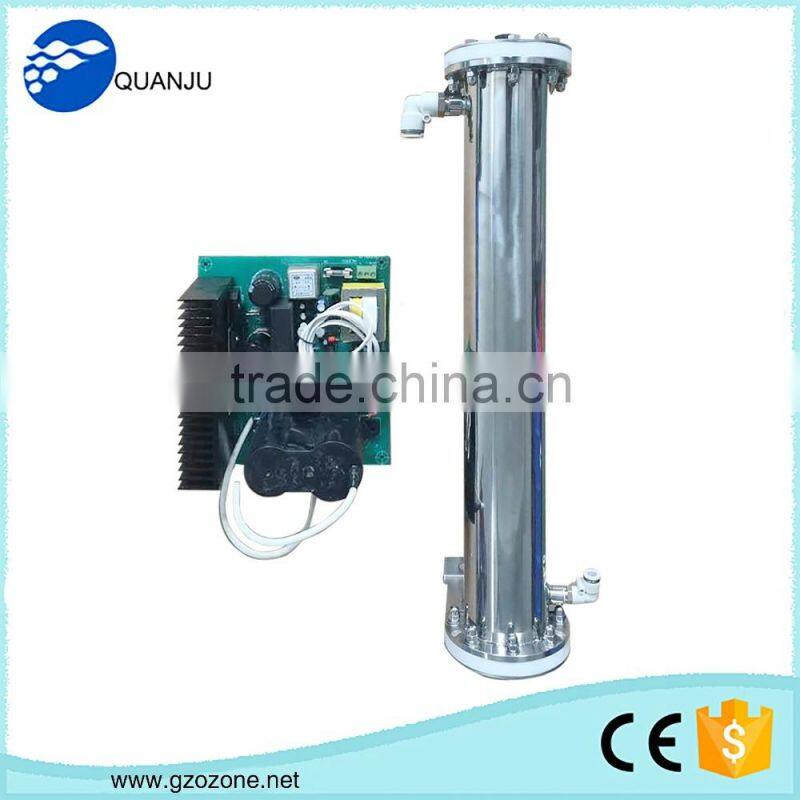

High quality enamel ozone generator tube / ozone enamel tube

       High quality enamel ozone generator tube / ozone enamel tube

 Welcome to Guangzhou Quanju Ozone Technology Company!

Features:
1. Double cold enamel ozone tube medium, choose 99 porcelain, high dielectric constant in good performance, can not be breakdown.

2. The inner water-cooling electrodes all are make from high quality 316 stainless steel refined but become, the outside electrode with the additional of aluminum radiator for forced air cooling.

3. On both ends of the head is made of high quality PVDF material refined from high pressure, fitting for high temperature, high pressure resistance, corrosion resistance, oxidation resistance.

4. Special design, high pressure resistant, no leakage, safe, reliable, small electrical gap, high efficiency of the discharge.

5. Ozone concentration up to 100-120mg / l, stable and continuous production, accurate and adjustable.

6. Optional AC 220V or AC 110V,working continuously.

Advantages/Performance:
1.The discharge gap of the Internal electrode enamel coating and external electrode stainless steel are using insulating materials, in case of leakage.

2.316L stainless steel inner electrode, to ensure that anti-oxidation and corrosion resistance.

3.The working breakdown voltage of the ozone tube is lower than similar products, high dielectric constant, low loss.

4.Use high frequency inverter power supply, the ozone output can be adjusted in 20-100%.

5.Double water cooling, cooling rapidly, to ensure that ozone production stably.

6.The temperature of the circulating water cooling water must not lower than the environment temperature 8 ℃. (water cooled type)

7.Working conditions: ambient temperature 200C; oxygen purity> 93%; gas dew point> -450C

Guangzhou Quanju ozone Technology company,specialize in ozone generator for over 12 years.Air treatment ozone generator,water treatment ozone generator,PSA oxygen generator and car air purifier is the leading product.

We has been in the industry for more than 12 years and engaged in ozone equipment mechanism,design and manufacturing, ozone application project design.

As the leading technology enterprise in Chinese ozone industry,we could provide installation,operation,debugging and other professional services.

Our company is a high tech company based on advanced ozone technology and core engaged in ozone equipment mechanism,ozone equipment design and manufacturing,ozone application project design.

There were 100 staff in our factory and the export business cover America,Canada,UK,Austrailia,Iran,Turkey etc.All of our product withCE certification and will be tested ,adjusted before senting out and offering 1 year warranty.The MOQ of our factory is 1 and 1-3 working days after payment for delivery with carton case or wooden case.The payment by Paypal,L/C, D/A, D/D, T/T,Western Union,MoneyGram was accepted.You could surf our website to know the product and The Trade Assurance of our company on Alibaba is $50000.

The machine will be tested and checked before shipping.

Ozone generator packing:factory original package by wooden case or carton case.

Shipping:1-10 units,only 1-3 working days only after payment

Express/Air transport etc

Q:What's Ozone?
A:Ozone is one of the most powerful oxidants available, destroying bacteria,viruses, mold,formaldehyde,and mildew in air, water and diverse applications almost instantly and more efficiently than any other technology. Ozone’s molecular structure is three oxygen atoms (O3).

Q:Why ozone is a green technology?
A:Ozone is a green technology with many environmental benefits. It reduces our dependence on traditionally used, harmful chemicals such as chlorine and eliminates their hazardous disinfectant by-products (DBPs). The only by-product created by ozone applications is oxygen which is reabsorbed into the atmosphere. Ozone’s ability to disinfect in cold water also saves energy.

Q:How about your company?
A:We are the manufacturer and our factory located in Guangzhou Baiyu district.Our product export to United State,Canada,United Kingdom,Australia,Brasil,Turkey etc.

Product services:
We manufacture Home ozone generator,Wall-mounted ozone generator,Movable ozone sterilizer,Air source ozone generator,Oxygen source ozone generator,The external air source ozone generator,High concentration water machine,PSA oxygen generator,Ozone disfinfection cabinet,Efficient air treatment machine,Car air purifier and sterilizer machine and Accessory.

Sales services:
We depend on the situations of client to offer professional knowledge,solve the problem and choose the reasonable product.The product will be test and regulate before senting out.All of our product with a safety package by wooden case or carton case.

After sales services:
All of our product offer 12 months warranty,and we have the professional people control the trouble.while the machine get into trouble,professional knowledge and advice will be offer.We offer 12 months warranty for our product.
