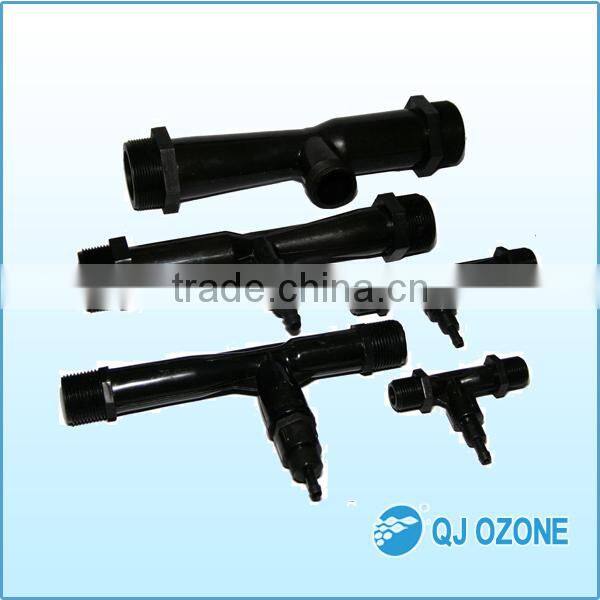

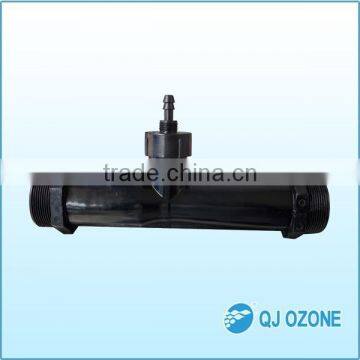

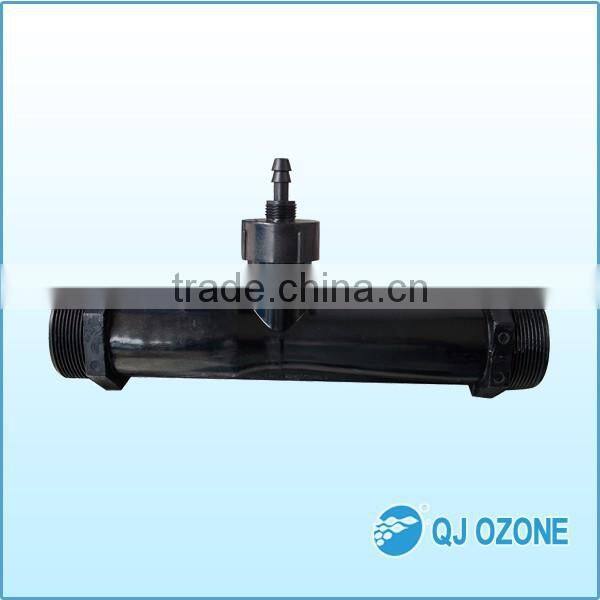

ozone generator parts, ozone venturi injector , ozone water mixing device

Description:

Ozone is now known to be natures most powerful disinfectant and oxidant and can even kill microbial contaminates like E-coli, Candida, Listeria, Staph, Salmonella, Giardia and Cryptosporidium more effectively than dangerous conventional disinfectants like chlorine or bleach. In fact, ozone kills E-coli more than 3,000 times faster than chlorine.

The ozone will be broken down into oxygen without any residual contamination. It can promptly kill bacteria propagule, spore, fungus all-pathogenic micro-organisms.
For Swimming pool,hospotal,food processing and packing workshop, it can obtain a very good effect for disinfection, sterilization, purification, improvement of hygienic quality of food, extending the shelf life of food. It can reach the national requirement for food hygienic processing and food without any residual contamination. It also can reduce pesticides and fertilizers residues on raw fruits and vegetables.

Specifications:

 Gas flow: 1-50T/Hr

 length of spout : G inch

 Type :Ozone generator ,oxygen generator

Fuction   :

1.Technical parameter

The check valve: be included in the air entry.

2. Description of products:

1). The injector is composed by pressure inlet, suction chamber, and nozzle; it is a gas water mixed mode according to the jet negative pressure principle

2). High-speed flow produces negative pressure in mixing tube's throat, which causes vacuum condition in inhaled indoor.

3). The intake tube gas is inhaled in the mixing tube automatically through the suction tube under the function of the pressure difference.

4). Water flow is mixed stired violently, the gas is shattered into tiny bubbles and becomes a mist of gas water emulsion, it spreads out of the mouth of the mixing tube. The gas continues to produce an eddy current mixing effection in the next tube, which makes the gas dissolves into water fully.

3. Features:

1). The gas water mixing tube (injector) with low flow and small volume was specially designed for small water treatment products.

2). The unique mixed air chamber design and the strong mixed injection of water and air make the mixing well-distributed, complete, and make the bubbles exquisite, mixed with high efficiency, low energy consumption and long service life.

4. Advantage:

1). Compact structure, simple maintenance, fast installation, reliable operation, be ready to start or stop at any time and automatic operation.

2). Durable PVDF construction

3). Check valve included in injection port

5. Notices:

1). The water temperature must be 0°C~60°C;

2). The water PH value should be 5~11;

3). The mixed liquids is not flammable liquids, the length of zonal impurities is not longer than 25 cm, the diameter of granule impurities is less than 4 mm in water.

6. Scope of application:

1). Small ozone generator support equipments.

2). All kinds of small water treatment gas-water mixing loop
