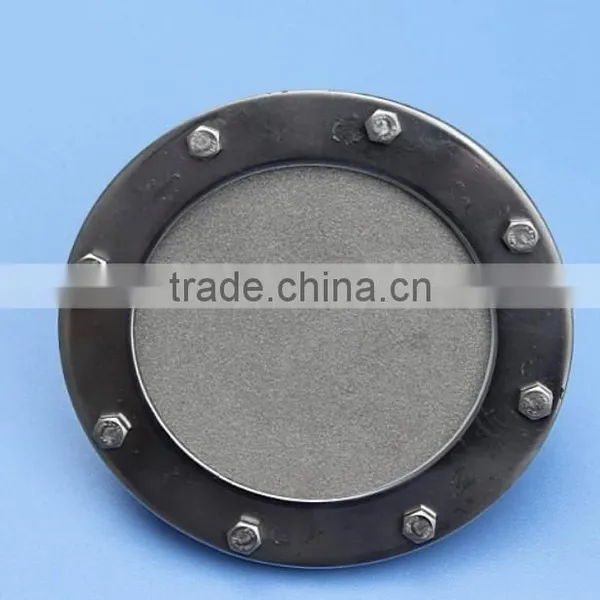

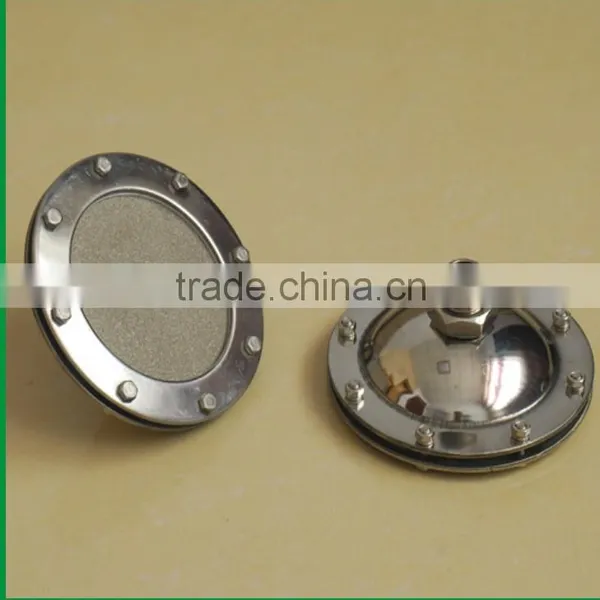

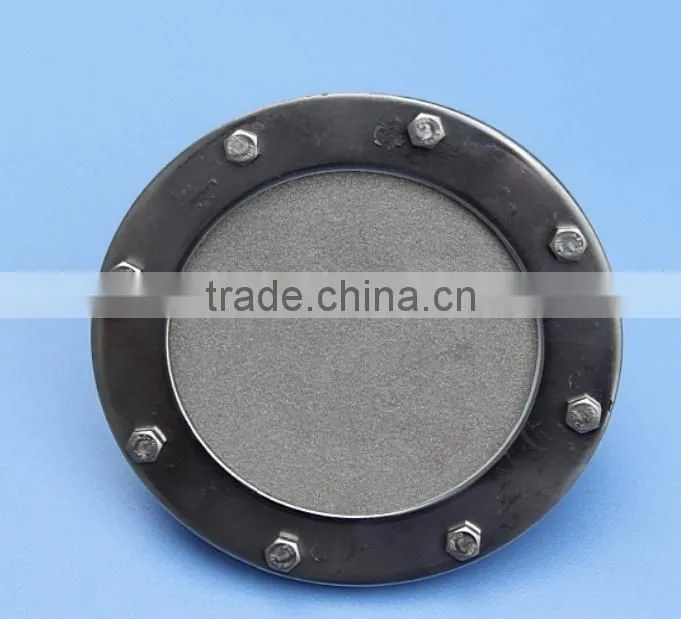

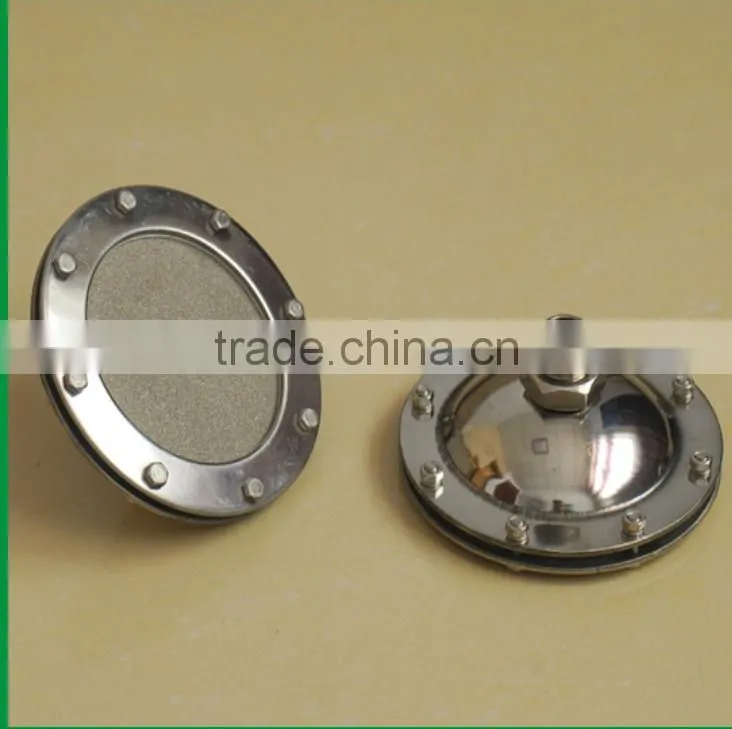

Oxygen aeration head
First, the product introduction
Microporous titanium aeration head to industrial pure titanium powder (purity ≥ 99.6899%) as the main raw material, the high temperature and high vacuum sintering. Its structure is uniform, pore diameter 0.22-100μm, porosity 35-50%, filtration resistance is small, separation, purification efficiency, good mechanical properties, there are flat-type, spherical two, flat diameter 120mm, 180m, 245mm , Spherical bottom diameter of 100mm, 150mm, 180mm, thickness of 3 mm, aeration bubble 5-10um, and aeration resistance is small, gas-liquid interface area, uniform bubble diffusion, will not produce clogging, corrosion resistance than conventional Aerator energy consumption reduced by 40%, an increase of sewage treatment capacity nearly doubled. long lasting. Especially for urban sewage, large-scale water plant expansion and renovation of the old aeration tank, and water treatment industry in the ozone aeration, chemical industry, such as catalytic gas aeration.
Second, product characteristics
1, uniform pore size, high porosity, pore shape and stability;
2, uniform bubble diffusion, aeration bubble diameter is small, gas-liquid interface area;
3, high temperature, can be used in the following normal 280 ℃;
4, filtration resistance, separation, purification efficiency, good mechanical properties;
5, will not produce clogging, chemical stability, acid corrosion;
6, with antioxidant properties, than conventional aerator energy consumption reduced by 40%;
7, non-magnetic, non-toxic, non-shedding, pollution-free, good biological compatibility
8, anti-microbial ability, not with the role of micro-organisms;
9, good airtight, compact structure, not easy to damage, suitable for harsh working conditions;
10, can be online regeneration, easy to clean, long service life.

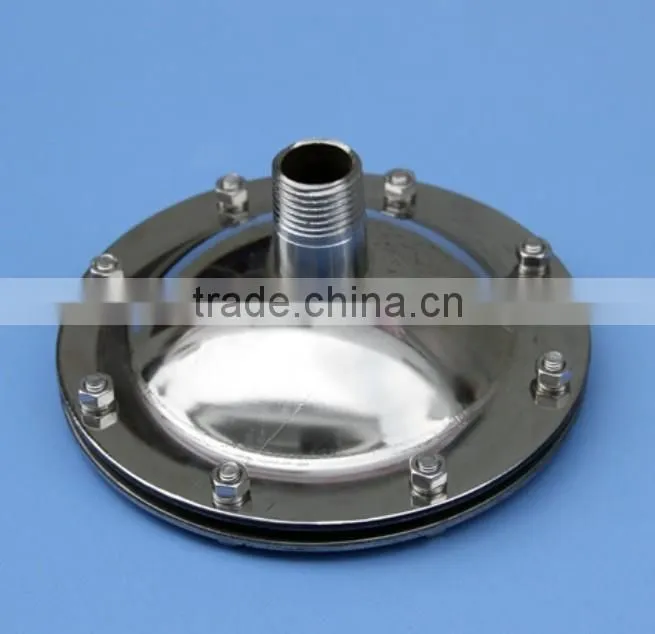

Pipe interface
Screw connection
Third, flat stainless steel titanium plate aeration head technical parameters
| Specifications and models | Bubble diameter | Porosity (%) | Supply volume (m3 / h) | Connection method | Related technical parameters |
| DN100mm Dimensions DN125mm |
5um | 0.1 | 10-16 | Welded or threaded connections |
Compressive strength of 0.5-1.5Mpa Wall thickness: 3 mm Temperature resistance of 280 degrees |
| DN150mm Dimensions DN185mm |
5um | 0.1 | 25-30 | Welded or threaded connections |
Compressive strength of 0.5-1.5Mpa Wall thickness: 3 mm Temperature resistance of 280 degrees |
| DN180mm Dimensions DN200mm |
5um | 0.1 | 35-40 | Welded or threaded connections |
Compressive strength of 0.5-1.5Mpa Wall thickness: 3 mm |
