Strontium Aluminate Glow in the Dark Pigment for Road Sign

Strontium Aluminate Glow in the Dark Pigment for Road Sign thumbnail-1
Strontium Aluminate Glow in the Dark Pigment for Road Sign thumbnail-2
Strontium Aluminate Glow in the Dark Pigment for Road Sign thumbnail-3
Strontium Aluminate Glow in the Dark Pigment for Road Sign photo-1
Strontium Aluminate Glow in the Dark Pigment for Road Sign photo-2
Strontium Aluminate Glow in the Dark Pigment for Road Sign photo-3
US$ 43.5 - 65.5 MOQ: 1 Kilogram
Key Specifications
Get Latest Price
CAS No.:
12004-37-4
Other Names:
Luminous Pigment
MF:
Sr4Al14O25:Eu+2,Dy+3
Contact Supplier Request Quote Chat Now
Anhui I-Sourcing International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port of strontium aluminate glow in the dark pigment for road sign
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
CAS No. 12004-37-4
Other Names Luminous Pigment
MF Sr4Al14O25:Eu+2,Dy+3
EINECS No. 215-168-2
Place of Origin Anhui, China
Usage Ceramic Pigments, Coating Pigment, Cosmetic Pigment, Ink Pigments, Other, Other, Ceramic Pigments, Coating Pigment, Cosmetic Pigment, Ink Pigments, Plastic & Rubber Pigment, Other, brushing and roll coating, coaing, injection, coating, painting
Brand Name OEM
Model Number ASG-4B, ASG-4D
Type Other, strontium aluminate pigment

strontium aluminate glow in the dark pigment for road sign



 Made by activating alkaline earth aluminate with rare earth element . This material is characterized by performances such as light absorption, light storage and light radiation and can glow in darkness for 12 hours continuously after it has absorbed various visible lights for 10-20 minutes. Its luminance brightness and duration is at least 30 times of traditional luminescent materials such as Zns:Cu, and can be used repeatly.



The test result issued by National Institute of Metrology (NIM) demostrate that the product is nontoxic, radioactive free, and has stable chemical performance.

strontium aluminate glow in the dark pigment for road signstrontium aluminate glow in the dark pigment for road sign



Product Specifications:



1. AS Series Luminous Pigment:



Grade

   Particle Size

      (X50)um



Brightness(mcd/m2)





Emitting Color





Apparent Color

10 min

60 min

Glow time

ASG-6B

65~85

725

120







    >12 hour















Yellow- green



















Light- yellow

ASG-6C

45~55

480

85

ASG-6D

25~35

380

55

ASG-6E

5~15

280

39

ASG-4B

65~85

640

105

ASG-4C

45~55

450

70

ASG-4D

25~35

320

42

ASG-4E

5~15

350

29

ASG-2C

55~75

350

40

ASG-2D

15~45

250

32

ASG-1C

55~75

260

35

10 hour

ASG-1D

15~40

200

25

ASB-5B

65~85

700

120





>12 hour



Blue- green







Light-white

ASB-5C

45~55

480

85

ASB-5D

25~35

360

58

ASB-5E

5~15

260

38

ASB-4B

65~85

630

110









Blue- green











Light-white

ASB-4C

45~55

440

75

ASB-4D

15~35

320

50

ASB-3C

55~75

400

55

ASB-3D

15~45

280

35

ASB-1C

55~75

260

38

10 hour

ASB-1D

15~40

200

23

ASP-6C

45~75

28

5

3 hour

purple

White

ASP-6D

15~45

19

3.5

       ASSB-8D

15~50

150

13

6 hour

Blue

white



 2. AS Series Coarse Particle Luminous Powder:



 3.AS Sulfide Series Luminous Pigment:





 4. DT Color Series  Luminous Pigment:





 Product Applications:

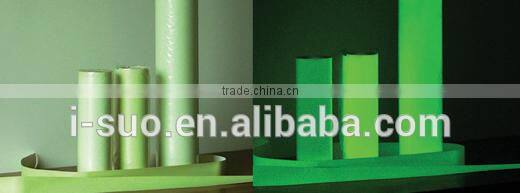

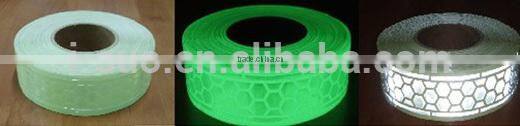

 1. Photoluminescent Vinyl Film:

strontium aluminate glow in the dark pigment for road sign

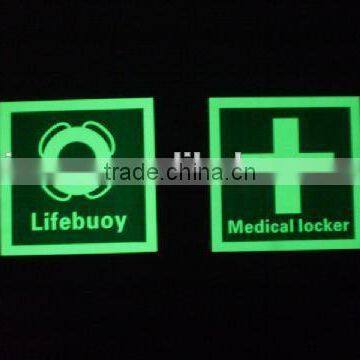

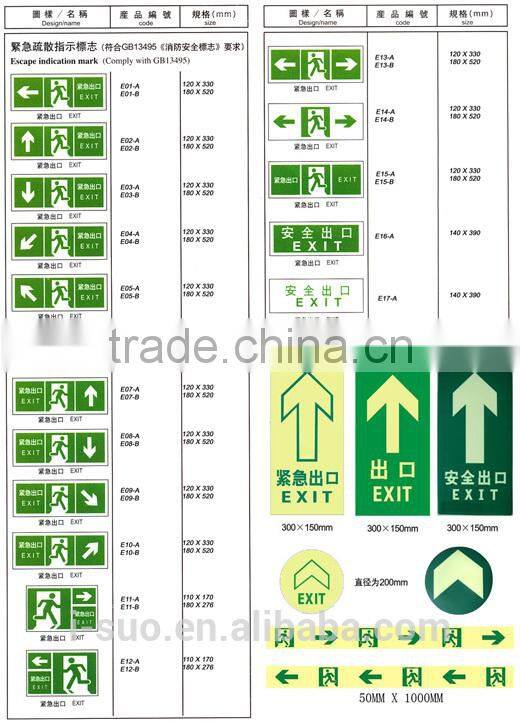

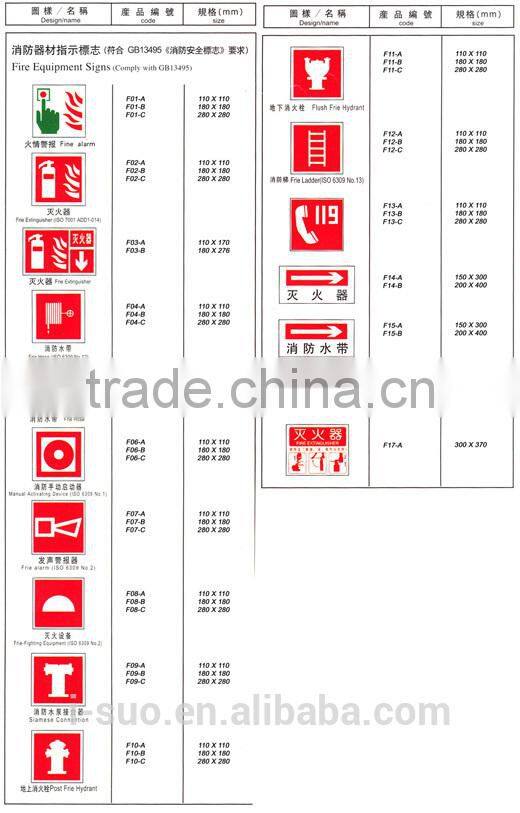

 2. Luminous Emergency Evacuation Products:

strontium aluminate glow in the dark pigment for road signstrontium aluminate glow in the dark pigment for road sign

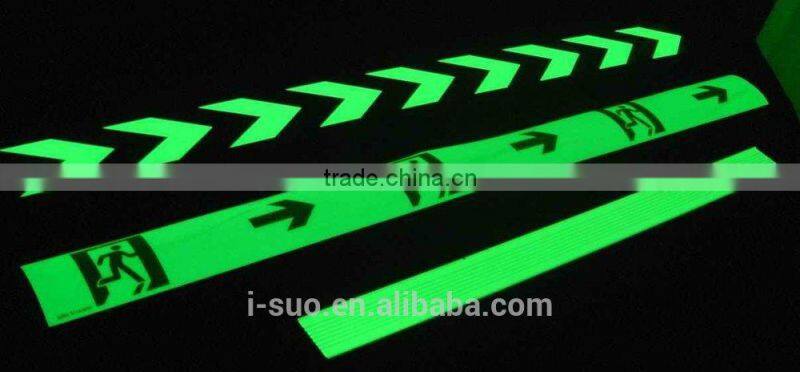

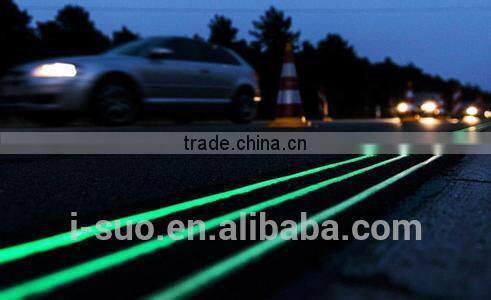

 3. Road Signs:

strontium aluminate glow in the dark pigment for road sign

 strontium aluminate glow in the dark pigment for road sign



 Product Performance and Characteristics:

1. No toxin or radioactive element, harmless to humans and the environment;

2. Less restriction on excitation light source, as long as the light intensity reach 25LX, it can be used as an excitation light source, and in general building the light intensity is up to 500LX. Sunlight, general lighting, surrounding stray light can be used as excitation source.

3. Excellent stable physical and chemical properties, can be used on outdoor or in extreme environment, temperature range -20 to 500C.

4. Multiple colors: red, yellow-green, blue-green, blue, and purple

5. Long service life, over 15 years.





Other Products available:

1.  Luminous self-adhesive vinyls

2.  Luminous PVC rigid sheet

3.  Luminous Aluminium sheet

4.  Luminous Indication for Emergency Evacuation

5.  Luminous Indicators for Fire Facilities

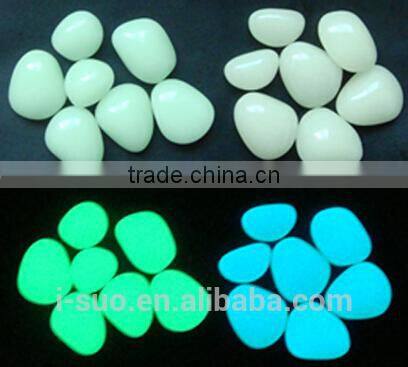

6.  Photoluminescent Pebble

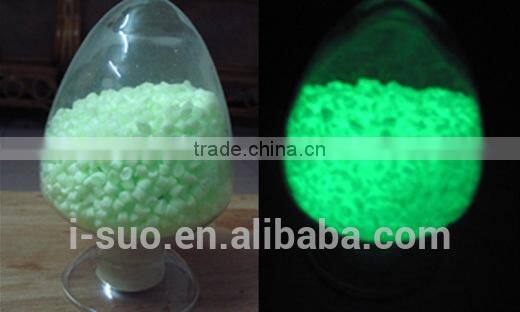

7.  Photoluminescent master batch

8.  Photoluminescent Reflective tape

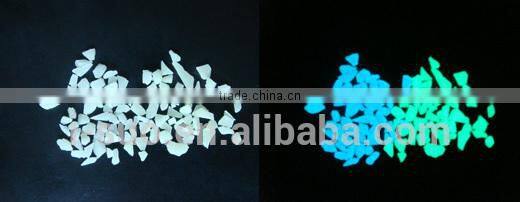

9.  Photoluminescent Rubble





More Products Pictures:



 strontium aluminate glow in the dark pigment for road sign

strontium aluminate glow in the dark pigment for road sign

strontium aluminate glow in the dark pigment for road sign

strontium aluminate glow in the dark pigment for road sign





 For more details, please feel free to email me or make an inquiry!
