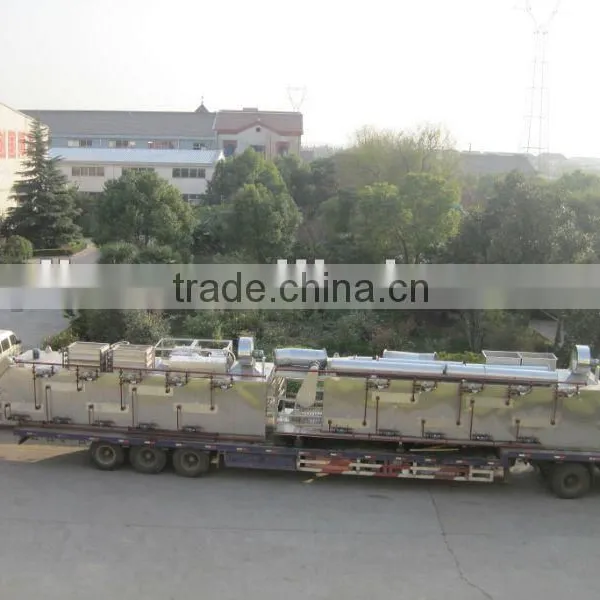

DW Series Mesh-Belt Dryer

Specifications

1. With certificate IS09001&ISO14001
2. Drying time: 30-60MIN(different material for different time)
3. Low temperature

Descriptions:This machine is a continuous penetrating flow drying equipment applied
for drying pieces strip and particles state materials with good ventilation.

The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents
are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality.
The dewatered and filtered cake state paste material should be made into particles
or strips before drying process.

Principles:The materials are uniformly distributed on the mesh-belt by the material
feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it
is drawn by a transmission device and move inside the dryer . The dryer is composed
of several sections. For each section, the hot air is circulated separately.
Part of exhausted gas is exhausted by a special moisture elimination blower. The
waste gas is controlled by an adjustment valve. The hot air passes through the
mesh-belt covered with bring water material away. The mesh-belt moves slowly,
running speed can be freely adjusted according to the material collector continuously.
The top and low circulation units can be freely equipped according to the
users requirements. The number of section might be selected according to the production demands.
