Marine Bronze Electric Water Valve for Pipe

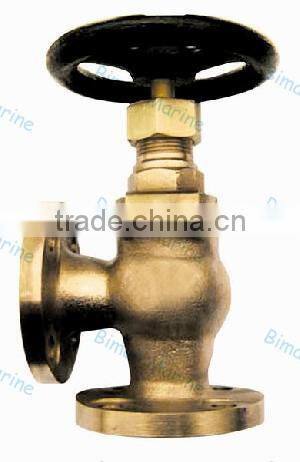

Marine Bronze Angle Globe Valve/ Electric Valve for Pipe
Features:
1. A compact structure, flexible opening and closing, corrosion resistance strong, short stroke (usually nominal diameter 1/4), widely used in petroleum, chemical and other piping systems do cut off media.
2. valve stem design with an integrated structure to prevent the line pressure fluctuations caused by the possibility of internal body parts out, compact, safe to use.
Material
| NO. | Coponent | Material | No. | Coponent | Material |
| 1 | Body | BC6 | 10 | Hexagon nut | C3604 BD |
| 2 | Bonnet | BC6 or C3771 BD | 11 | Split pin | C2600 W |
| 3 | Disc | 12 | Locj plate | C2600 P | |
| 4 | Valve disc nut | 13 | Disc lock washer | ||
| 5 | Packing gland | 14 | Stud | C3771 BD (50A OR MORE) | |
| 6 | Gland nut | 15 | Hexagon nut | C3604 BD (50A OR MORE) | |
| 7 | Stem | C3771 BD | 16 | Packing | NON ASBESTOS |
| 8 | Cross recessed pan Head machine screw | C2700W | 17 | Gasket | |
| 9 | Handwheel | FC200 | 18 | Name plate | C2801 P |
Standard:ISO,JIS,DIN,ATSM,CB/T,GB,BG/T,CBM Certificate:CCS,ABS,BV,DNV,GL,LR
The main performance specifications:
| DN | L | D2 | H | Flanged Size | Weight(kg) | |||
| D | C | n | h | |||||
| 15 | 55 | 80 | 120 | 80 | 60 | 4 | 12 | 1.98 |
| 20 | 60 | 100 | 130 | 85 | 65 | 4 | 12 | 2.73 |
| 25 | 65 | 125 | 145 | 95 | 75 | 4 | 12 | 3.44 |
| 32 | 80 | 125 | 150 | 115 | 90 | 4 | 15 | 4.77 |
| 40 | 85 | 140 | 165 | 120 | 95 | 4 | 15 | 5.99 |
| 50 | 100 | 140 | 200 | 130 | 105 | 4 | 15 | 10.1 |
| 65 | 115 | 160 | 220 | 155 | 130 | 4 | 15 | 15.6 |
Marine Bronze Angle Globe Valve/ Electric Water Valve for Pipe
