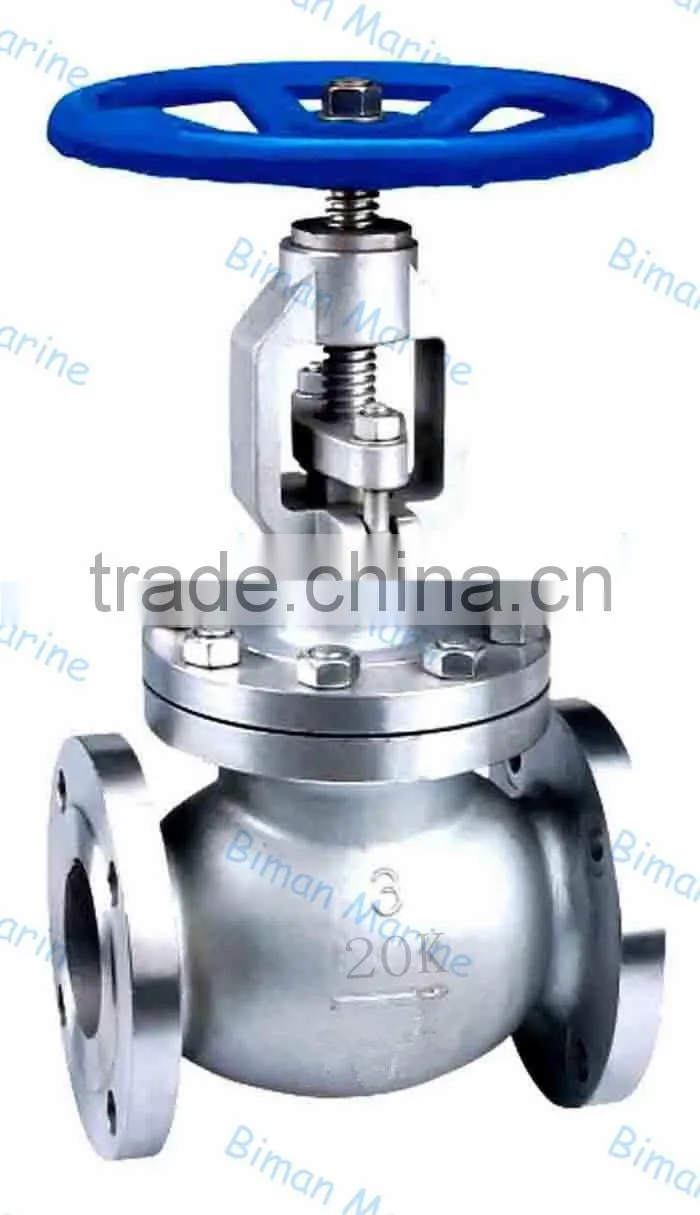

Marine Flanged Globe Valve Drawing

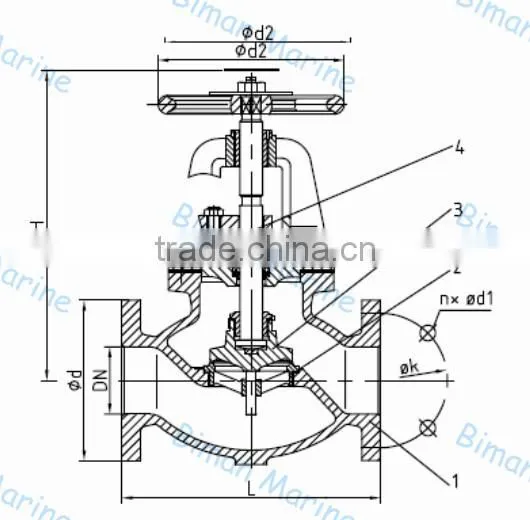

Marine Flanged Globe Valve Dimensions/ Globe Valve Drawing
The stem axis and the seat sealing surface is vertical, and it is a very reliable valve to cut off and control.
1. Globe valve's structure is more simple than gate valve's, and it is more convenient in manufacturing and maintenance.
2. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life.
3. When opening and closing, disc's route is small, so the height of globe valve is lower than gate valve, but the length of structure is longer than gate valve's.
Specifications about Marine Flanged Globe Valve
carbon steel globe valve,cast steel globe valve Standard | |||||
|
Design & Manufacture |
Structural Length |
Flange Dimension |
Welding Dimension |
Pressure & Temperature Level |
Test & Inspection |
API 600 |
ANSI B16.10 |
ANSI B16.5a |
ANSI B16.25 |
ANSI B16.34 |
API 598 |
Pressure Test | ||||||
Pressure (LB) |
Strength Test |
Water-sealing Test |
Stream-sealing Test |
|||
MPa |
Lbf/in2 |
MPa |
Lbf/in2 |
MPa |
Lbf/in2 |
|
150 |
3.1 |
450 |
2.2 |
315 |
0.50.7 |
60100 |
300 |
7.8 |
1125 |
5.6 |
815 |
||
600 |
15.3 |
2225 |
11.2 |
1630 |
||
900 |
23.1 |
3350 |
16.8 |
2440 |
||
1500 |
38.4 |
5575 |
28.1 |
4080 |
||
2500 |
64.6 |
9367 |
47.4 |
6873 |
||
MARINE CAST STEEL GLOBE VALVES | |||||||||
SIZE (mm) |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
d (mm) |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
L1 (mm) |
210 |
250 |
280 |
340 |
410 |
480 |
570 |
740 |
840 |
a (mm) |
8 |
9 |
9 |
10 |
11 |
12 |
15 |
17 |
18 |
H (mm) |
270 |
300 |
310 |
360 |
390 |
445 |
530 |
795 |
93 |
W (mm) |
160 |
180 |
180 |
224 |
250 |
280 |
315 |
355 |
400 |
€ 1 (mm) |
17 |
22 |
27 |
33 |
42 |
50 |
67 |
138 |
165 |
Weight (kg) |
16.2 |
23.4 |
30 |
45 |
63 |
88 |
153 |
230 |
309 |
Marine Flanged Globe Valve Dimensions/ Globe Valve Drawing
