Marine Stainless Steel DN40 Check Valve
Marine Stainless Steel DN40 Check Valve
1. The flow path is simple, small dead zone and vortex area, scouring action by means of the media itself, which can effectively prevent the media from clogging. And has good self-cleaning properties.
2.Small flow resistance, flow coefficient smaller than the single seat valve, equivalent with the flow coefficient of double-seat valve.
It's suitable for the case of high viscosity fluid containing suspended particulate matter,or to request a place at right angles to the pipe. Its flow is generally bottom into the side.
Technical Specifications:
Design and manufacture: API 6D
Face to face: ASME B16.10
Flange ends: ASME B16.5
Pressure/Temperature: ASME B16.34
Testing and checking: API 598
Main Parts and Material:
Part Name |
Material |
||||
Body |
ASTM A216 WCB |
ASTM A351 Cf8 |
|||
Disc and Yoke |
WCB |
Cf8 |
CF8M |
Monel |
|
Hinge pin |
F6a |
F304 |
F316 |
Monel |
F304 |
Disc face |
13Cr 13Cr STL |
304 STL |
316 STL |
Monel |
304 304 STL |
Seat ring face |
13Cr 13Cr STL |
304 STL |
316 STL |
Monel |
304 STL STL |
Part Name |
Material |
||
Body |
ASTM A351 Cf3 |
ASTM A351 CF8M |
ASTM A351 Cf8 |
Disc and Yoke |
ASTM A351 Cf3 |
ASTM A351 CF8M |
ASTM A351 Cf8 |
Hinge pin |
F304L |
F316L |
F316L |
Disc face |
304L 304L STL |
316 316 STL |
316L 316L STL |
Seat ring face |
304L STL STL |
316 STL STL |
316L STL STL |

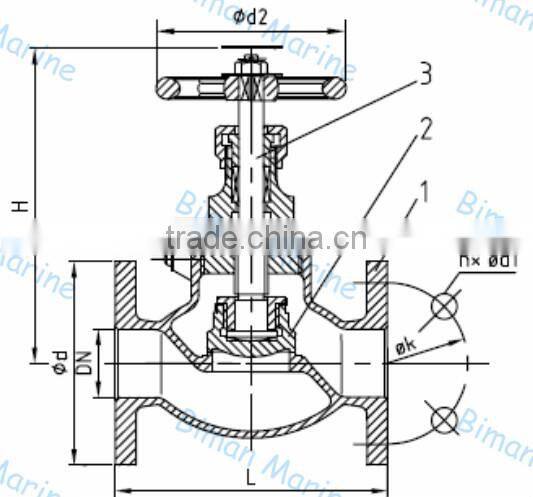

Specifications about Marine Check Valve/ SDNR Valve
SIZE |
FACE TO FACE |
FLANGE (mm) |
HEIGHT |
||
mm |
mm |
DIA |
PCD |
BOLT HOLE |
mm |
15 |
60 |
90 |
70 |
4-15 |
76 |
20 |
70 |
100 |
75 |
4-15 |
93 |
25 |
80 |
125 |
90 |
1-19 |
104 |
32 |
100 |
135 |
100 |
4-19 |
130 |
40 |
100 |
140 |
105 |
4-19 |
130 |
50 |
120 |
155 |
120 |
4-19 |
175 |
65 |
140 |
175 |
140 |
4-19 |
183 |
80 |
160 |
185 |
150 |
8-19 |
215 |
100 |
175 |
210 |
175 |
8-19 |
260 |
Marine Stainless Steel DN40 Check Valve
Other Related Valves:
Valves: Butterfly Valve ; Globe Valve ; Gate Valve ; Check Valve ; Angle Valve
Water Pump: Centrifugal Pump; Vortex Pump ; Jet Pump ; Bilge Pump
Sewage Pump: Submersible Sewage Pump; Sewage Crushing Pump
Fire Pump: Portable Fire Pump; Fixed Fire Pump ; Diesel Emergency Fire Pump
Oil Pump: Gear Oil Pump; Hot Oil Pump; Self-priming centrifugal oil pump
Other Biman Valves
Why Choose BM
A. Excellent service before purchasing
B.M know what the best cost-effective products are. According to clients’ circumstances, we will offer most suitable products for them.
B. Guaranteed quality
Most products which B.M offered are with high quality and also provide warranty to security benefits.
C. Rich experience and Customized Products
B.M has enormous resources of various marine equipment. All of our products are customized.
We can offer products according to your detail equipment and drawings.
FAQ
How to order Valves from Biman?
- Please tell us the Size, Pressure and Quantity and other request you need.
- If you have the certificate requirements, please let me know.
- We'll make quotation for you. After your confirmation, PI will send to you.
- We'll arrange the order for you after receiving your payment
- After the goods finished, we send the goods to you and tell you the tracking number.
