Brief Introduction:

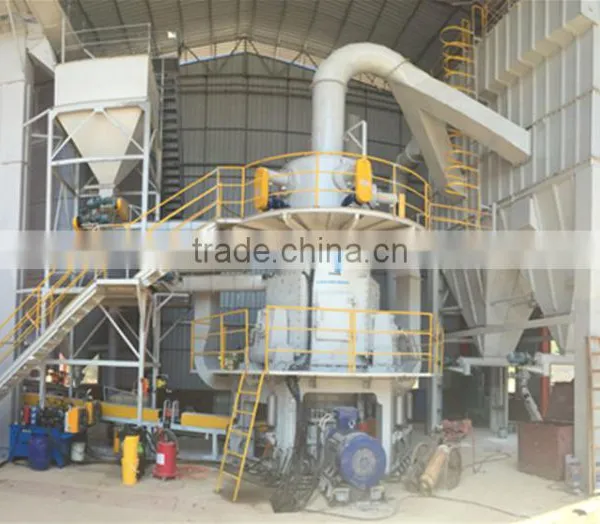

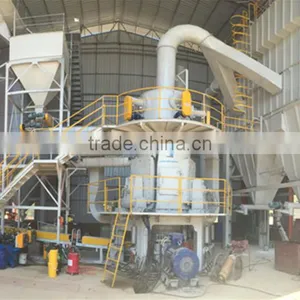

YFLM Series Vertical Mill is main including : Motor,Decelerator,Grinding Rollers,Pressure device,Classifier,Main unit and Oil station etc, it has realized that grinding powder,classifier and transmission can be finished together, the technical index of technology parameter,mechanical property and the powder quality are the same level of Taiwan’s machine.

Working principle

1.     Low cost of operation

Use the rollers to grind the material directly, low consumption, it can save 30%~40% than ball mill.

When the mill is operating, roller cannot touch the grinding plate directly, and the rollers and scaleboard are high quality, with long service life.

2.     Environmental protection

When the mill is operating, roller cannot touch the grinding plate directly, it don’t have the crash voice, small shaking, low noise, it’s lower 20-25db than the ball mill machine. The vertical rollers use the omniseal system. Negative-pressure production is adopted, being environment-friendly and without dust pollution.

3.Easy operation and operation stably

The machine has auto control system, remote control and easy operation.

It has the stop lock to prevent the cover of rollers touch the scaleboard of grinding plate directly and prevent the destroy impact and violent shake.

With the help of roll device, we can put the roller out of grinding plate to exam and change the cover of rollers and scaleboard.

4 .High efficiency of drying

Vertical mill use hot wind to transmit material, when grind the high moisture material, we can control the inlet air temperature to make product meet the standard, the mill can dry material of 15% moisture, it’s used widely. The ball mill only can dry material of 3%-4% moisture.

5.High quality of product

Materials only stay 2-3 minutes in the vertical mill, but stay 15-20 minutes in the ball mill, so we can measure and adjust the chemical element and fineness fast, the product quality is steady.

LYLM1200

LYLM1200 vertical mill specifications:
