Superfine Powder Grinding Mill with Air Classifier
1. Brief introduction:
YFM series Yifeng grinding mill is a new- type grinding mill, combing rolling, impacting and grinding to one, it is an idea micro-fine grinding mill for deeply processing Mohs hardness less than 5, moisture less than 5% non-metal minerals as calciun carbonate, colin clay, talc, graphite, barite etc.
2. Application
3. Feature
1) It has special grinding structure with many grinding grooves so that it has more than double grinding efficiency as Raymond Mill, jet Mill and Impact Mill.
2)The powder from it has good fineness (D97=3-35um), which can be adjusted as customer’s requirement as to improve the company's competitiveness.
3) It has perfect structure combing grinding and classifying to one, grinding and classifying at the same time, it runs under negative pressure so that the powder can’t go outside of it. Very clean.
4) High output, the capacity can be make 1-8T/H.
5) Low energy consumption, total power about 245kw
6) Long use life wearing parts, all parts be make by our own factory, each parts with special number to control the quality.
7) Convenient to install, no need large-scale construction, It covers only small area. It can be put into production as soon as we finish installing. It can run stably, continuously with good fineness of powder so that the quality can be assured.
4. Structure
YFM series Grinding Mill consists of feed, main unit, classifier, cyclone collector, deduster, muffler, air blower, motors, pipe, control cabinet etc.
5.Technical Data

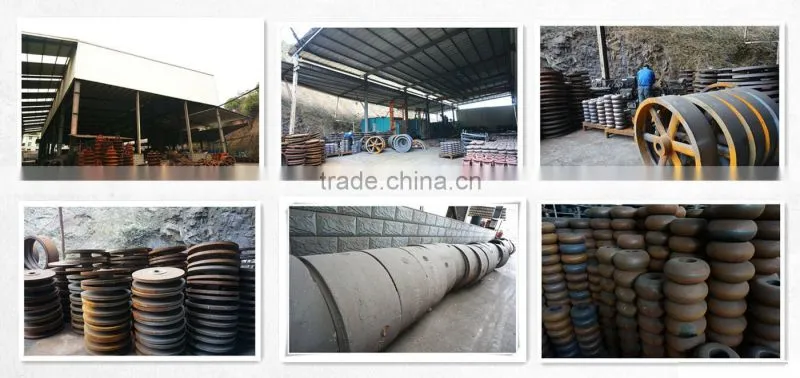

6. Wearing Parts

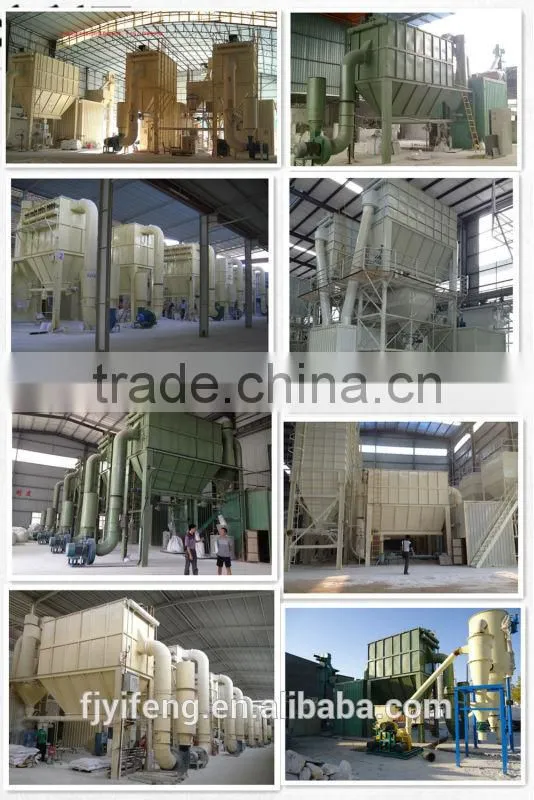

7. Workshop
8. About US
Longyan Yifeng Grinding Mill Co., Ltd was founded in 2002, it was founded based on the high technology and high starting point, specializing in producing all kinds of Super-Micro Grinding Machinery, Grinding Machinery and Wear Resisting Cast Pieces with large scale of experiment base, it has gained ISO9001 Certificate.
Yifeng produces YFM series Grinding Mill, YFLM Vertical Mill, ACM jet Grinding Mill, large-scale YFCM-900 Series Impact Grinding Mill and YFG series classifier are domestic initiative, By constantly , studying and developing ' while Yifeng updates the YFM series Grinding mill ceaselessly, the new type of grinding mill is regarded as a revolution of non-metal minerals processing industry history.
Our machine are being widely used in more than 20 provinces, municipalities and antonomous regions in China and such many countries in Southeast Asia, Africa and Middle East as Malaysia, Vietnam, Mali etc.

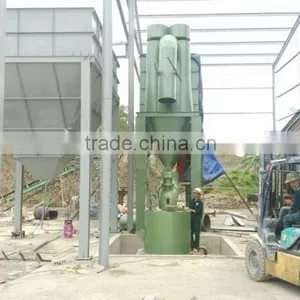

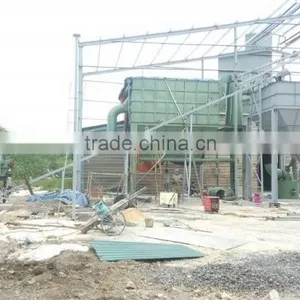

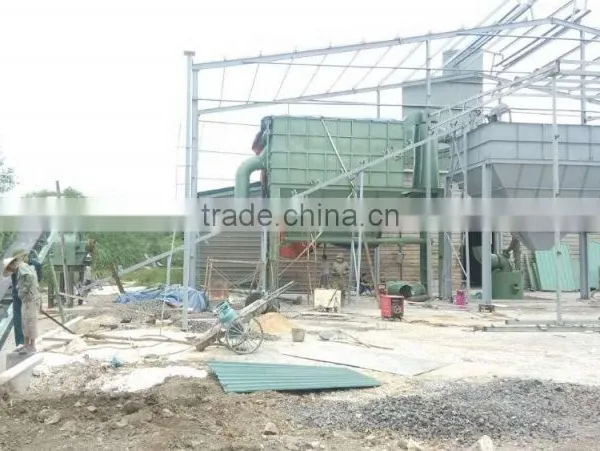

9. Customer's Sites
Our machine are being widly used in more than 20 Countries as Malaysia, Vietnam, India, Pakistan, Tanzania, Mali etc.
10. Packing
Strong wooden package
1 x 40HQ Container
Weight: 16T
