Specifications

1.high wave, high strength, high automation and low cost.
2.Fast delivery
3. Stard export package
4. One stop service

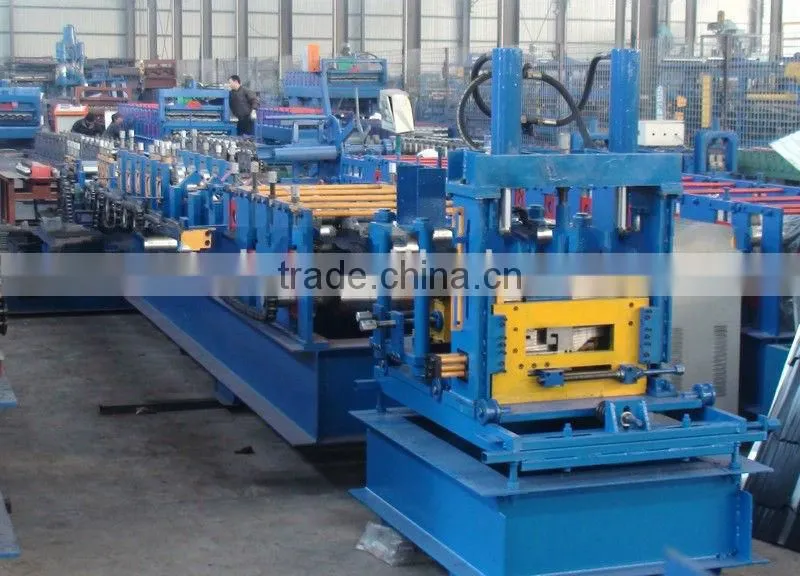

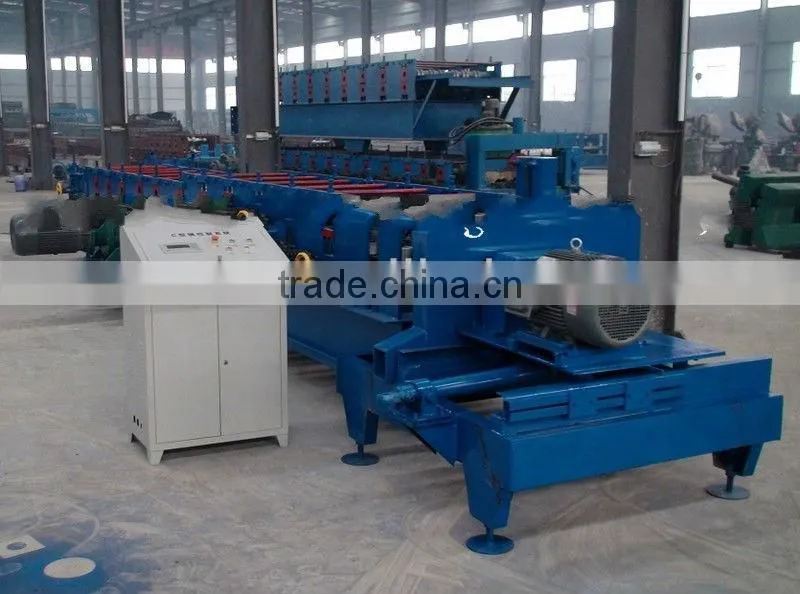

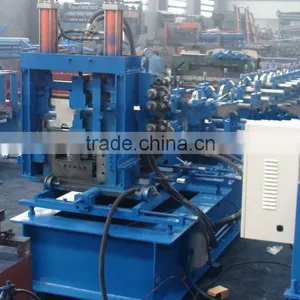

C/Z Purlin Machine



Introduction of C, Z purlin machine:
This metal rolling forming equipment is mainly composed of manual stacker, the pedestal of the stacker, the feed leading table, flattening device, the main forming machine, punching device, cutting device, hydraulic station, computer control device.
Product features of C, Z purlin machine:
1. The product of the machine offers high compressive strength and good straightness.
2. High automatization, like auto cutting and punching
3. Quick and convenient installation helps reduce labor force.
Product application of C, Z purlin machine:
Product of this metal forming machine is widely used in load bearing roof and buttree of large and medium-size industrial and civilian buildings, like workshop, warehouse, locomotive shed, hanger, exhibition building, theatre, stadium etc.

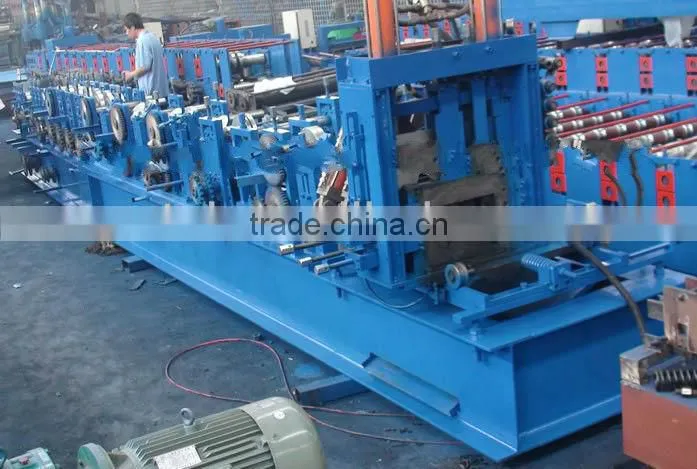

C-fast changing model

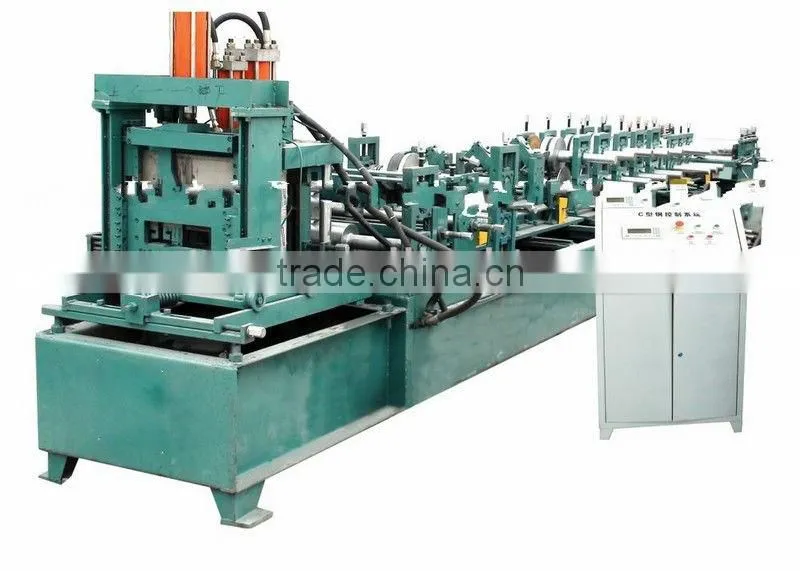

C Purlin Machine

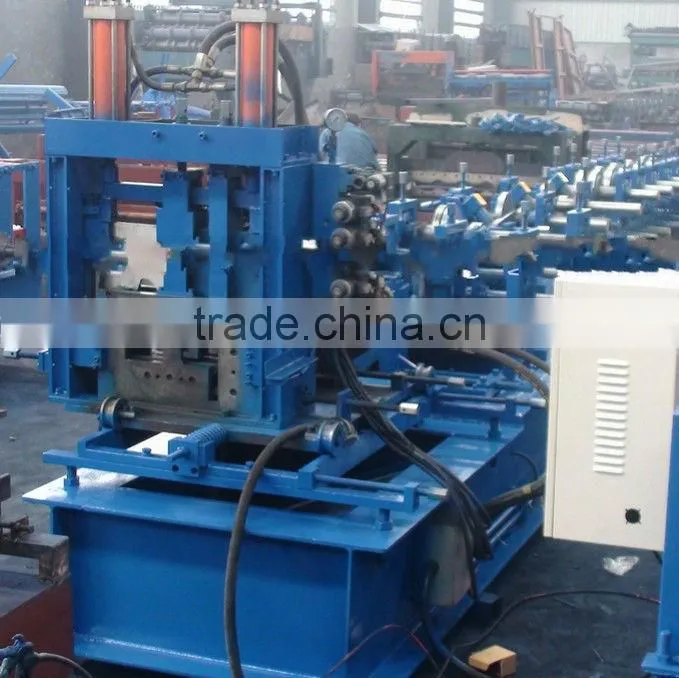

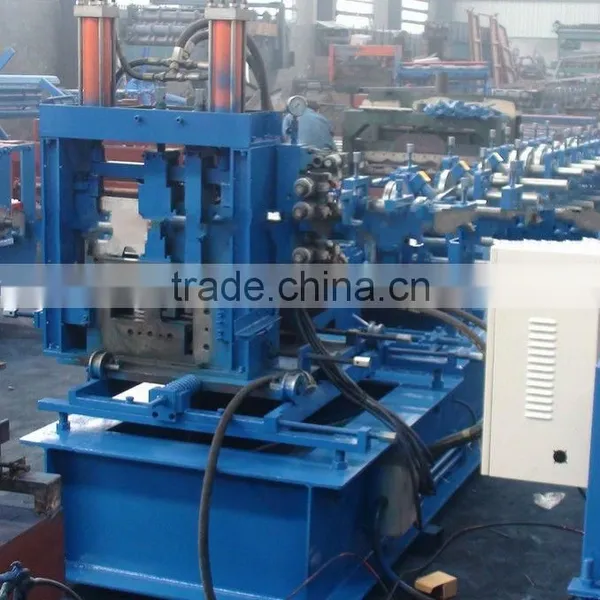

C-mould cutting





Technical Specification of C, Z purlin machine:
1 Installation size: 13500mm×2200mm×1500mm
2 Quantity of stands: 15
3 Roller material: Gcr15
4 Main motor power: 11KW
5 Hydraulic station power: 11KW
6 Hydraulic station pressure:18-20Mpa
7 Forming speed: 9-10m/min.
8 Material of blade: Cr12
9 Electrical system: PLC variable frequency control
10 Thickness of the plating chromium of roller surface: 0.05mm
11 Thickness range: 1.5-3.0mm
12 Rolling spec.: spec. of 80-300
13 Uncoil width: 1000mm
14 Precision of length: 10000mm±2mm
