Specifications
1.high wave, high strength, high automation and low cost.2.Fast delivery
3. Stard export package
4. One stop service
Description:

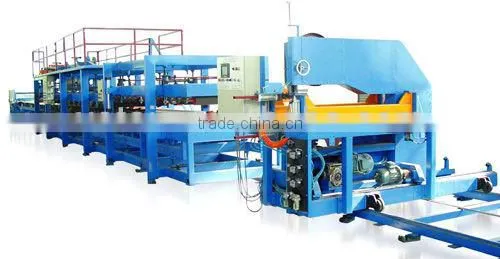

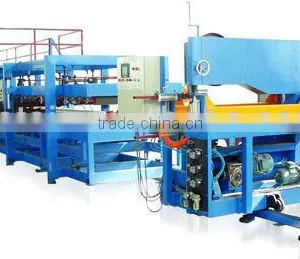

Sandwich Panel Line/ EPS Sandwich Panel Line is a traditional corrugated sandwich panels have to be laminated manually after the forming of corrugated sheet.
Moreover, both the roll forming machine and the laminating system can work independently. The roll forming machine of the line consists of feeding system, roll forming system and cutting system, while the laminating system is made up of such equipment as de-coiler, feeding, squeezing, heating, laminating, edge rolling, edge turn-over, groove-making, edge pruning, pneumatic device, automatic cutting and PLC. The whole machine possesses advanced working crafts.
The sandwich panels of this line are widely used as the roof and wall of factory, warehouse, garage, exhibition center, cinema, theatre, gymnasium, civil construction, stadium, cold storage, etc .
Parameter:
No. |
Model |
Width (mm) |
Thickness |
Cover width (mm) |
Size[L*W*H] |
Power[kw] |
1 |
TFVIC |
1000/1200 |
0.4-0.6 |
950-1150 |
19754*1600*2700 |
22 |
2 |
TFVI |
1000/1200 |
0.4-0.6 |
950-1150 |
20745*1600*2700 |
25 |
3 |
TFVII |
1000/1200 |
0.4-0.6 |
950-1150 |
20754*1600*2700 |
28 |
4 |
TFVIII |
1000/1200 |
0.4-0.6 |
950/1150 |
20745*1600*2700 |
28 |
5 |
TF-PU |
1000/1200 |
0.4-0.6 |
950/1100 |
