Energy Saving Mining Ball Mill Machine With Competitive Price

Energy Saving Mining Ball Mill Machine With Competitive Price thumbnail-1
Energy Saving Mining Ball Mill Machine With Competitive Price thumbnail-2
Energy Saving Mining Ball Mill Machine With Competitive Price photo-1
Energy Saving Mining Ball Mill Machine With Competitive Price photo-2
US$ 1,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
Other
Contact Supplier Request Quote Chat Now
Henan Light Industrial Products Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/ Shanghai/ Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type Other
Place of Origin Henan, China
Brand Name Yihao
Dimension(L*W*H) Depeng on models
Weight Depeng on models
Certification ISO
Warranty 1 year
After-sales Service Provided No overseas service provided
Product Description





   Energy saving ball mill by simplified, drive shaft, the end bearing, reducer, tooth profile such as uranium, and motor parts, cylinder body is equipped with a certain weight of steel ball.

   Energy-saving ball mill roller fixed supports at the bottom of the base, based on the location of discharge energy saving ball mill rotating drum with fine screen, drive is located in the external energy saving ball mill rotating drum.Gode in henan through the discharging mouth of energy-saving ball mill installation screen, shredded raw materials from the energy saving ball mill after discharging mouth out directly by fine sieve sieve, without artificial mesh to screen fine, not only save labor, and greatly improve work efficiency, economic benefit is improved obviously.
Energy saving mining ball mill machine with competitive priceEnergy saving mining ball mill machine with competitive price

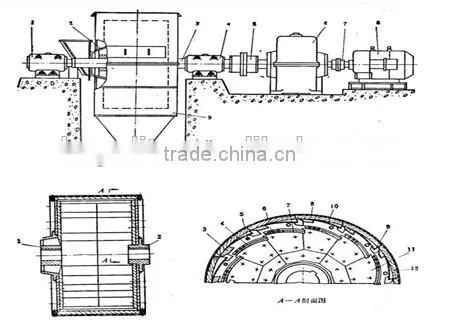

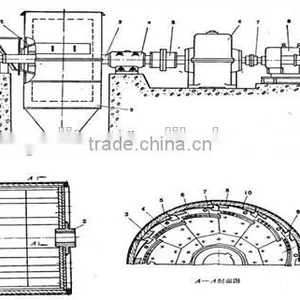

Structural composition



Energy saving mining ball mill machine with competitive price



Technical parameters





Specifications and models Drum speed Ball load Feed size Discharge size Production Power Weight
(r/min) (t) (mm) (mm) (t/h) (kw) (t)
Dia.900×1800 36~38 1.5 ≤20 0.075-0.89 0.65-2 18.5 4.6
Dia.900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 5.6
Dia.1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
Dia.1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
Dia.1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Dia.1500×3000 29.7 7.5 ≤25 0.074-0.4 2.0-5.0 75 15.6
Dia.1500×4500 27 11 ≤25 0.074-0.4 3.0-6.0 110 21
Dia.1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 24.7
Dia.1830×3000 25.4 11 ≤25 0.074-0.4 4.0-10.0 130 28
Dia.1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 32
Dia.1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 34
Dia.1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 36
Dia.2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34
Dia.2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 42
Dia.2100×7000 23.7 26 ≤25 0.074-0.4 8-48 280 50
Dia.2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 48.5
Dia.2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 52.8
Dia.2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 54
Dia.2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 56
Dia.2400×3000 21 23 ≤25 0.074-0.4 7-50 245 54
Dia.2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 65
Dia.2700×4000 20.7 40 ≤25 0.074-0.4 12-80 400 94
Dia.2700×4500 20.7 48 ≤25 0.074-0.4 12-90 430 102
Dia.3200×4500 18 65 ≤25 0.074-0.4 Depend on the process 800 137
