Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m

Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m thumbnail-1
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m thumbnail-2
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m thumbnail-3
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m thumbnail-4
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m thumbnail-5
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m thumbnail-6
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m photo-1
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m photo-2
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m photo-3
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m photo-4
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m photo-5
Nitto PTFE Tape 973UL-S T0.13mm*W25mm*L10m photo-6
US$ 8 - 26 MOQ: 1 Roll
Key Specifications
Get Latest Price
Material:
PTFE
Use:
Masking
Adhesive Side:
Single Sided
Contact Supplier Request Quote Chat Now
Shantou Wingtai Packing Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shantou / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material PTFE
Use Masking
Adhesive Side Single Sided
Adhesive Type Hot Melt, Pressure Sensitive
Design Printing No Printing
Place of Origin Japan
Brand Name NITTO DENKO
Model Number 973UL-S(0.13*25)



Nitto PTFE tape 973UL-S (T0.13mm*W25mm*L10m )



Product Description

Product Description

Specification



Nitto PTFE tape 973UL-S T0.13mm*W25mm*L10m

Color

Beige

Spec.

T0.13mm*W25mm*L10m

Short-term heat resistance

300℃

Continuous heat resistance

-60~260℃

Adhesive Strength

25℃

6.8  N/19mm

100℃

3.2  N/19mm

150℃

2.2  N/19mm

Tensile Strength

240  N/19mm

Unwinding Force

5.9   N/19mm



Features:



  1. Environmentally friendly products.
  2. Has a good off models and smoothness.
  3. Has good heat retention and dimensional stability.
  4. Nonadhesive surface with electrical characteristics, heat resistance, weather resistance,  chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and  other four non-fluorinated ethylene resin possess good properties.

Usage:



• For the heat-resistant masking
• For heat sealing
• For the heat-resistant electrical insulation.

Product Information

Product Information



Nitto PTFE tape 973UL-S T0.13mm*W25mm*L10m Nitto PTFE tape 973UL-S T0.13mm*W25mm*L10m

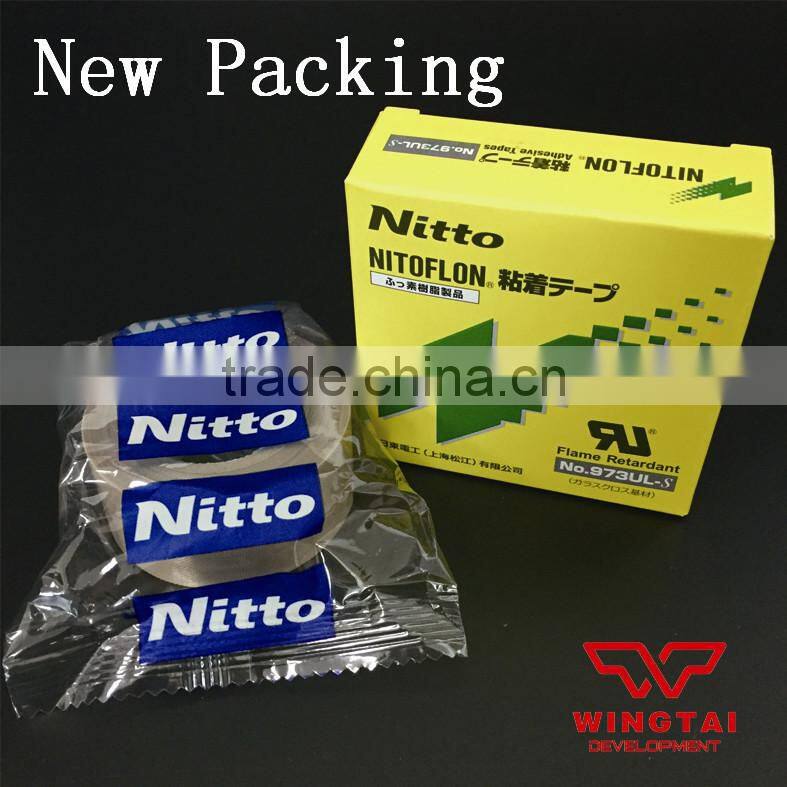

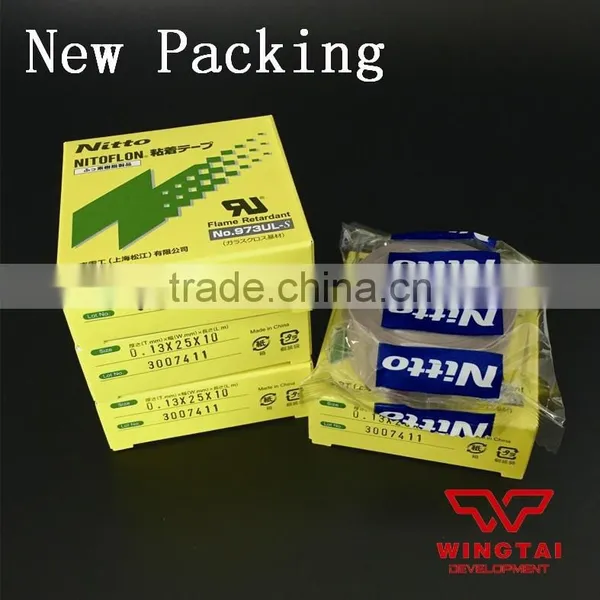

Note: Nitto tape has changed into new packing as it is showed above.



Overview:

Used in glass fiber brie infiltration tetra fluoride ethylene resin (PTFE) dispersion solution formed after the firing of the material substrate. The single-sided tape to the surface treatment, coated with silicone-based adhesive with excellent heat resistance and mechanical strength.

More Specification

More Specification

Model

Color

Substrate

Short-term

heat resistance(℃)

Continuous

use

temperature(℃)

Thickness(mm)

Width(mm)

Length(m)



No.973UL-S





Beige



0.13



10

10



300℃



-60~260℃



13

15

19

25

38

50

75

100

300

600



No.973UL





Beige



0.18

19

10

300℃

-60~260℃

25

50



Other Model Specs.:



Type

(Nitto Denko)

Spec.

923S

T0.10mm* W38/50mm* L33m

903UL

T0.08mm* W13/15/19/25/38/50/100/250/300/540mm* L10m

903UL

T0.18mm* W18/19/300mm* L10m

903UL

T0.13mm* W19mm* L10m

973UL-S

T0.13mm* W10/13/19/25/38/50/75/100/300/600mm* L10m

973UL

T0.18mm* W19/25/50mm* L10m

975

T0.12mm* W13/19/25/30/38/50/200/300mm* L10m

970-2UL

T0.07mm* W650mm* L10m
Technical Data

Technical Data



Item

No.973UL-S

No.973UL

Thickness (mm)

0.13

0.15

0.18

Tensile strength (N/19mm)

240

590

530

Adhesive strength (N/19mm)

25°C

6.8

9.0

9.7

100°C

3.2

3.9

4.7

150°C

2.2

2.6

3.0

Unwinding force(N/19mm)

5.9

5.9

7.5

Temperature range(℃)

-60~260

Test Method

Compatible with JIS C 2107
