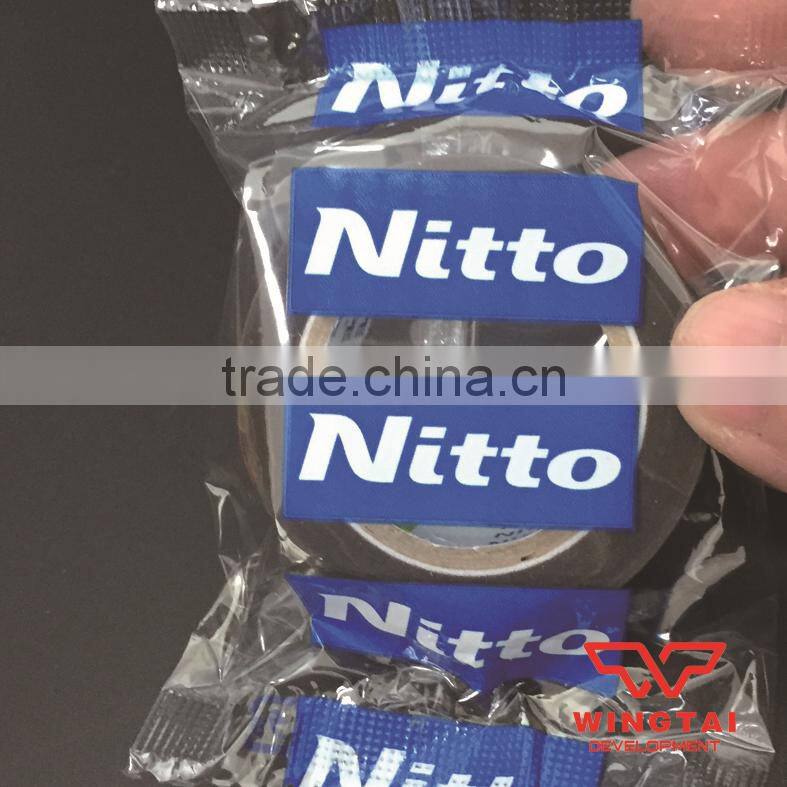

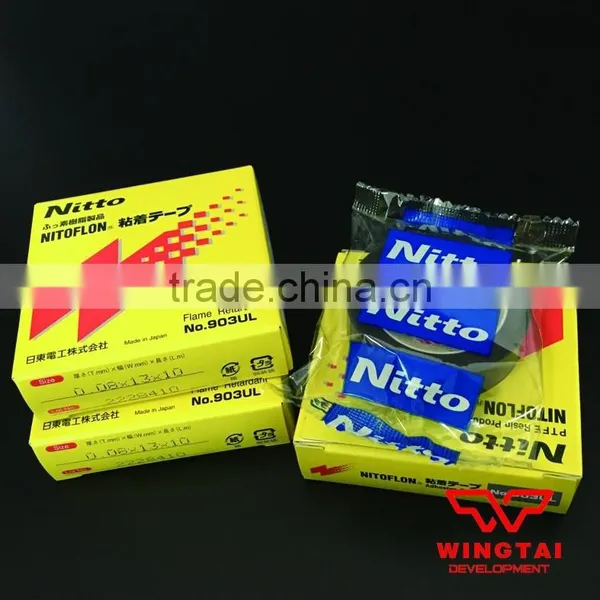

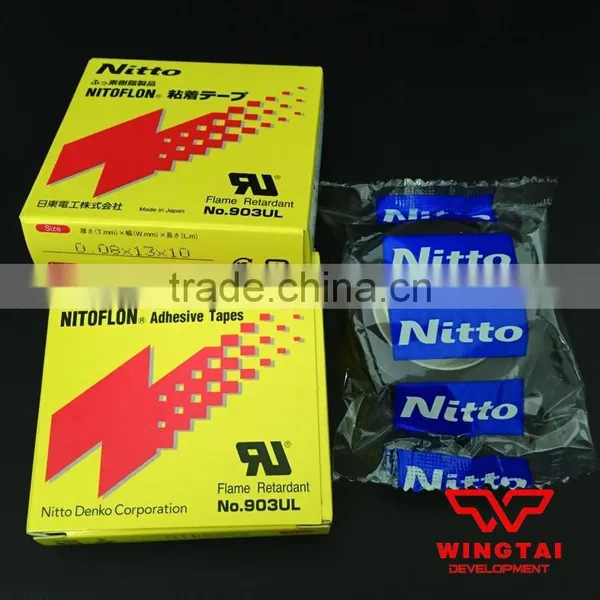

T0.08mm*W13mm*L10m Nitto Insulation Tapes 903UL
Class H electrical insulating adhesive tape using fluoroplastic film.
Single surface treated polytetrafluoroethylene (PTFE) filmbase tape coated with silicone adhesive with excellent heat resistance. Along with great electrical characteristics, the tape has a number of excellent features,such as heat resistance, chemical resistance, low friction coefficient and non-adhesiveness.

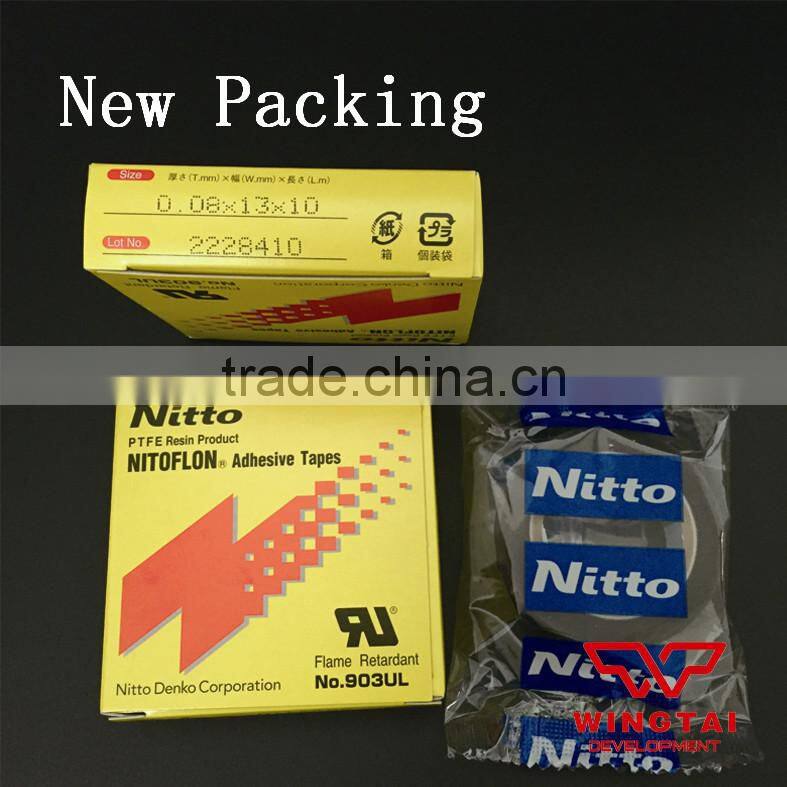

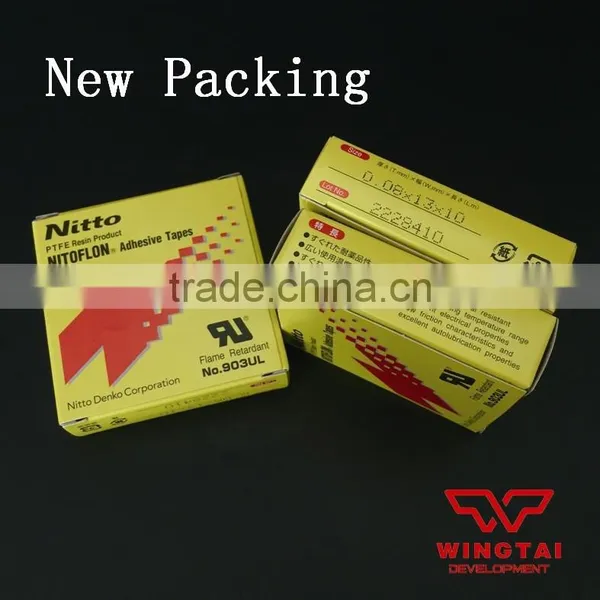

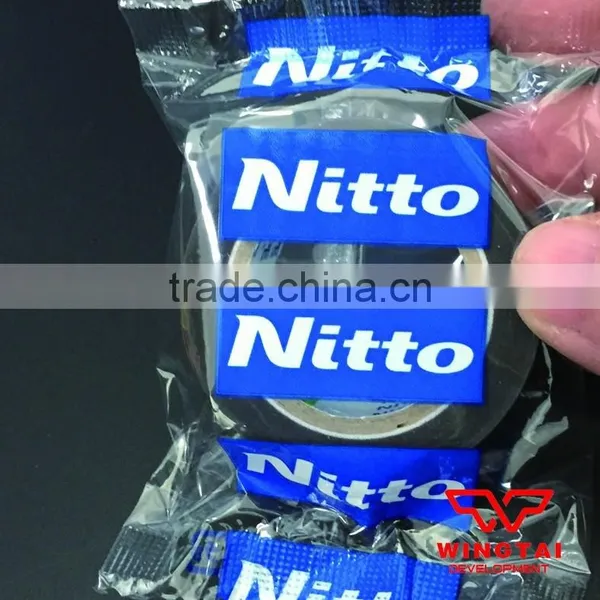

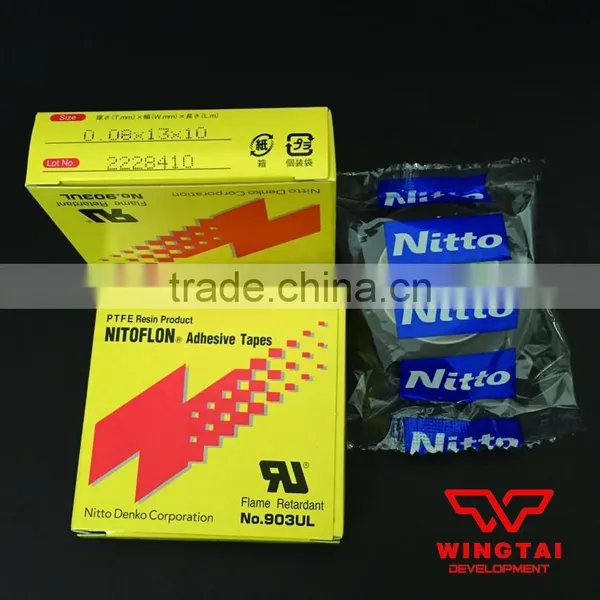

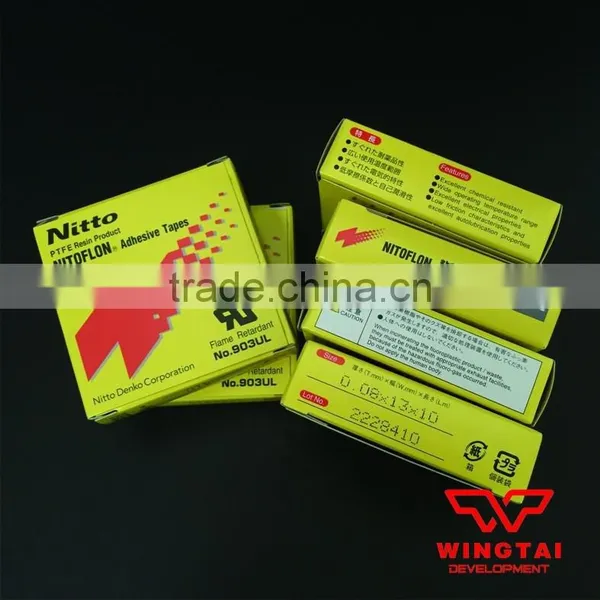

Note: Nitto tape has changed into new packing as it is showed above.
Features
1. UL510 certified.
2. Superior in mold-releasing and sliding property.
3. Uses the Class H insulating material.
4. Superior flame resistance.
5.Nonadhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as electrical property, resistance to heat, weather, chemical, and water (water -shedding), low friction coefficient and non-adhesiveness.
6. Can smoothly adhere, wind, band and seal, just like regular adhesive tapes.
Applications
- For heat-resistant masking.
- For heat-sealing.
- For heat-resistant electrical insulation.
Widely used in: The food industry, printing industry, industry, chemical industry, etc
Item |
Characteristic Value |
|||
No.903UL | ||||
Thickness (mm) |
0.08 |
0.13 |
0.18 |
0.23 |
Tensile strength (N/19mm) |
55 |
93 |
160 |
210 |
Adhesive strength*1 (N/19mm) |
5.6 |
7.1 |
7.4 |
8.7 |
Rewinding force(N/19mm) |
4.4 |
5.8 |
7.1 |
8.9 |
Breakdown Voltage (KV) |
8 |
11 |
14 |
15 |
Temperature range(℃) |
-60~280 |
|||
|
Type (Nitto Denko) |
Spec. |
923S |
T0.10mm* W38/50mm* L33m |
903UL |
T0.08mm* W13/15/19/25/38/50/100/250/300/540mm* L10m |
903UL |
T0.18mm* W18/19/25/50/300mm* L10m |
903UL |
T0.13mm* W19mm* L10m |

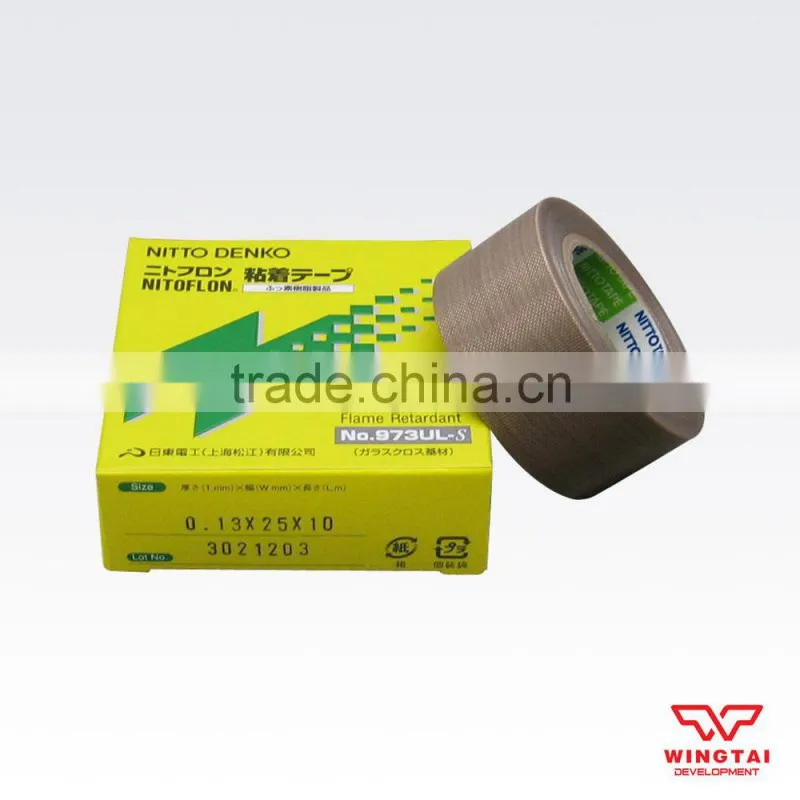

973UL-S |
T0.13mm* W10/13/19/25/38/50/75/100/300/600mm* L10m |
973UL |
T0.18mm* W19/25/50mm* L10m |
975 |
T0.12mm* W13/19/25/30/38/50/200/300mm* L10m |
970-2UL |
T0.07mm* W650mm* L10m |
Please Click the Headline to View More...
|
|
|
Nitto Denko Tape 973UL-S |
Nitto Denko Tape 923S |
Nitoflon non-adhesive cloth 970-2 UL |
|
|
|
Nitto Denko Tape 975 |
America 3M Heat resistance tape |
Korea Taconic Tape |
