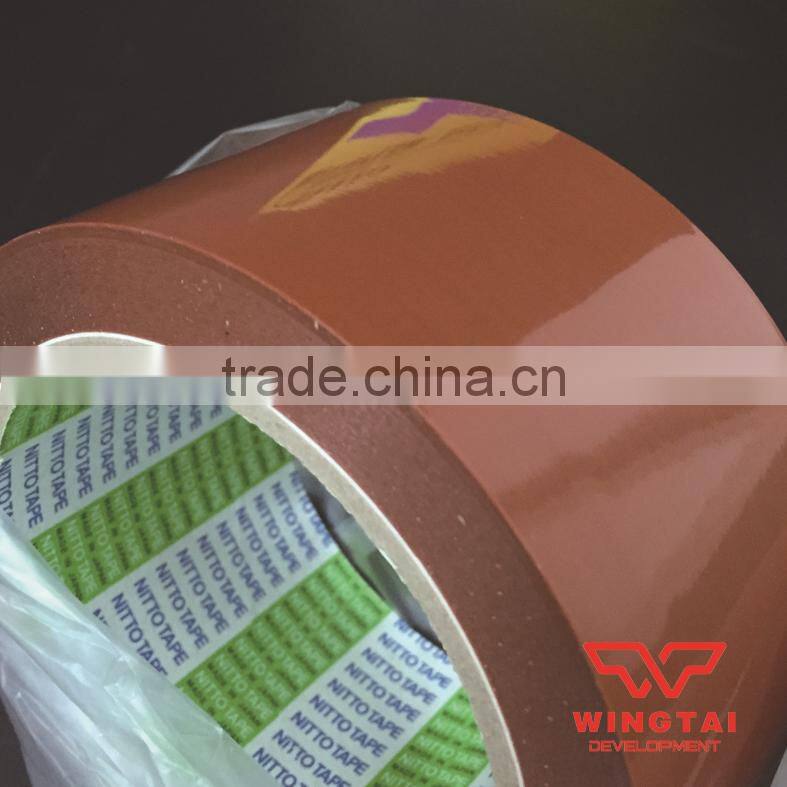

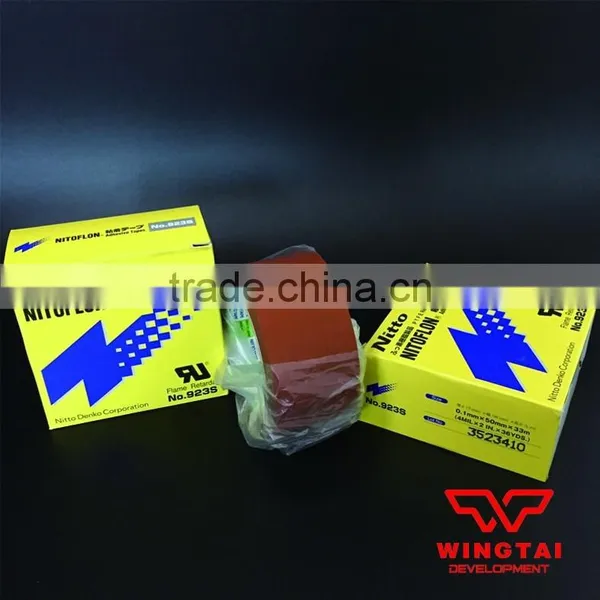

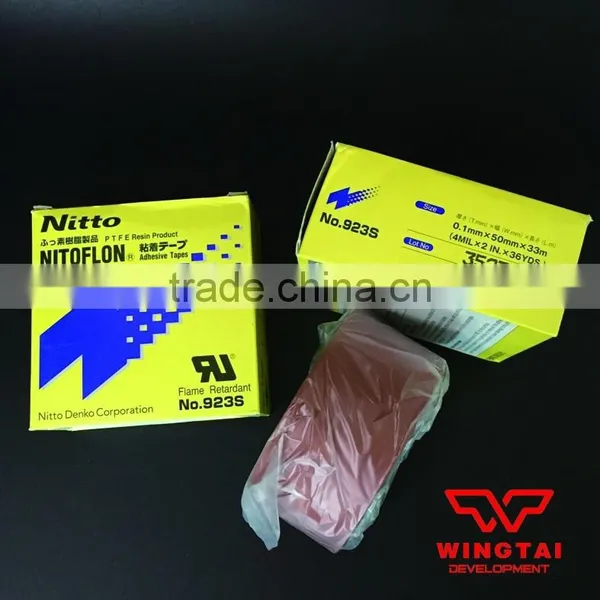

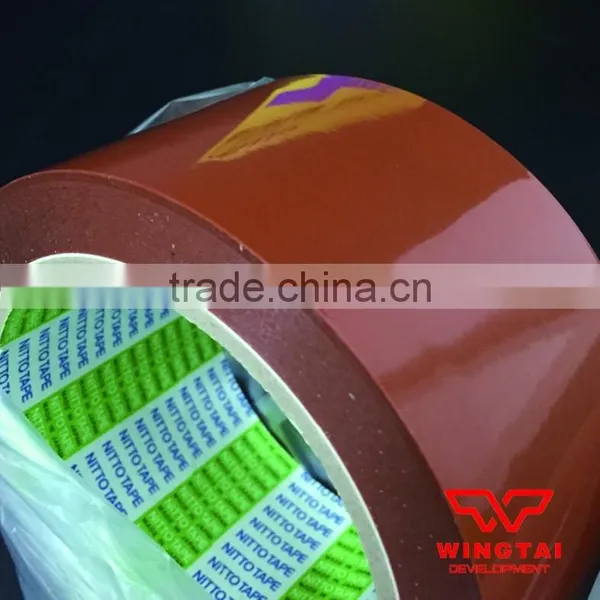

NITTO DENKO No. 923SNITOFLON PTFE Adhesive Tape
Product Description
Specification | ||
|
Color |
Orange |
Spec. |
T0.10mm*W50mm*L33m |
|
Backing Material |
PTFE film |
|
Adhesive |
Silicone |
|
Flammability Rating |
Passes UL-510 Flame Test |
|
Short-term heat resistance |
-50~300℃ |
|
Continuous heat resistance |
-50~250℃ |
|
NO. 923S is a orange PTFE tape and use oriented polytetrafluoroethylene (PTFE) film as a based material. Single surface treated and coated with a silicone adhesive can prevent with high heat and friction resistance.
Product Information

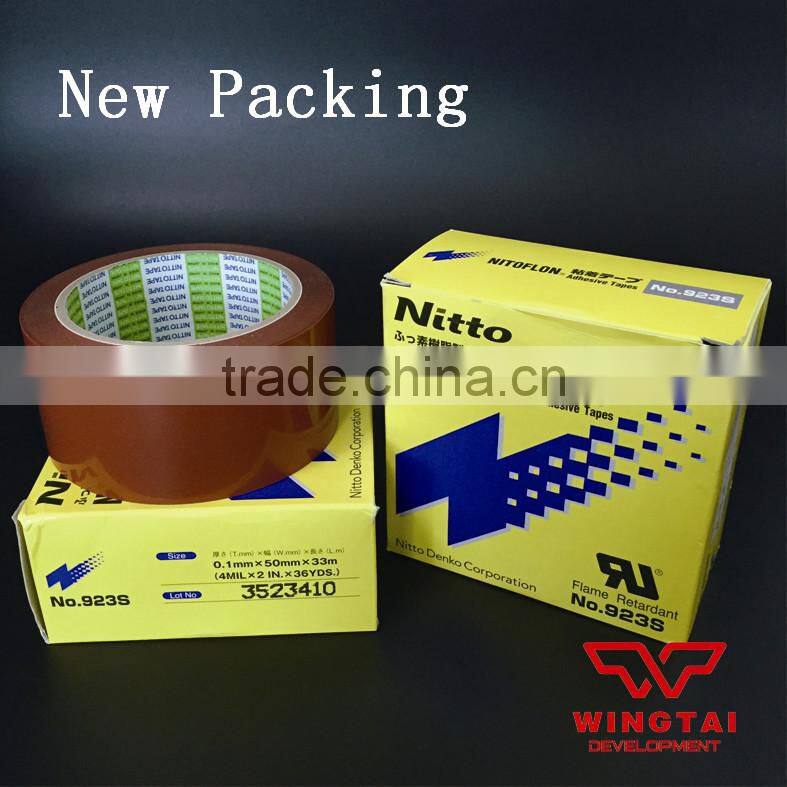

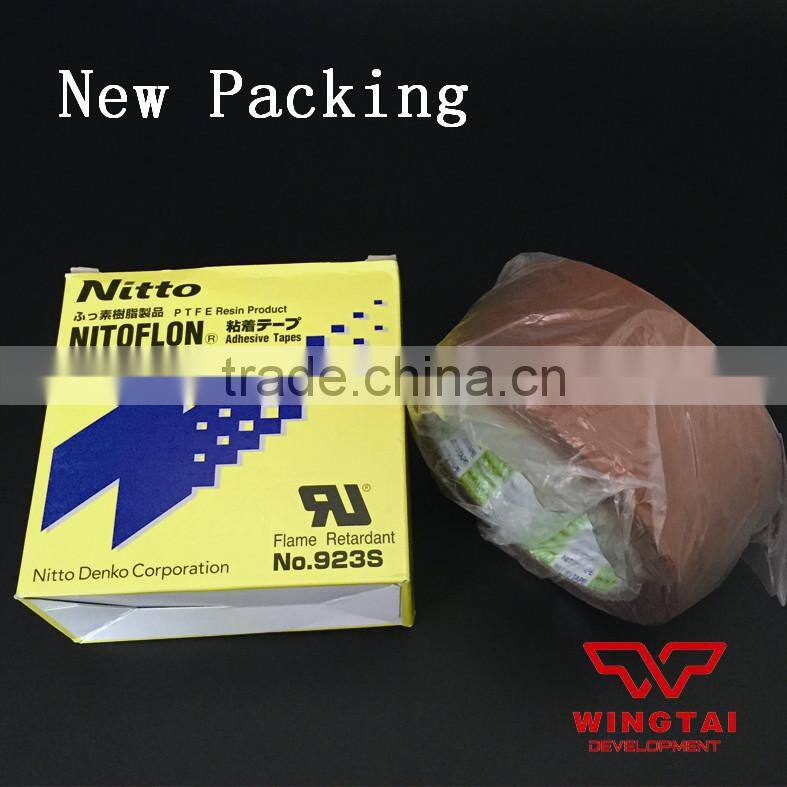

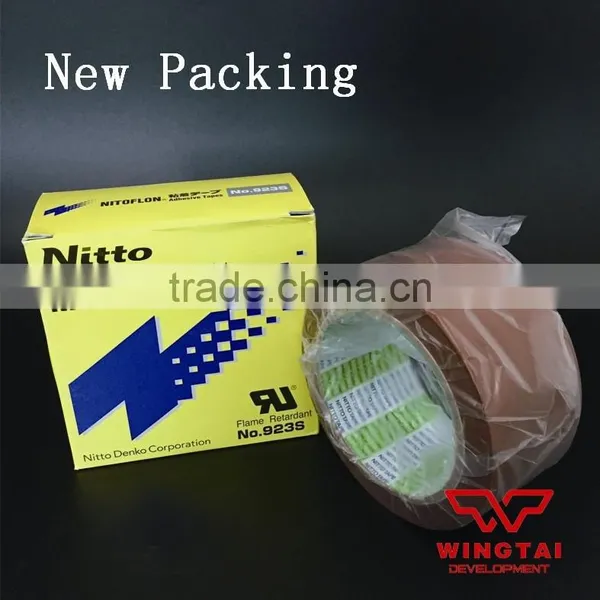

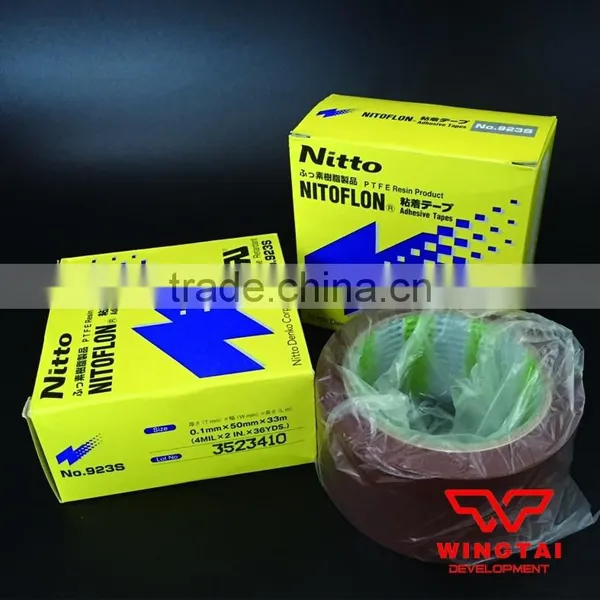

Note: Nitto tape has changed into new packing as it is showed above.
Features
1.The nonadhesive side exhibits excellent features such as desirable electrical properties, resistance to heat, weather, chemical, water (water-shedding), and anti-friction.
2. UL Rated.
3. Superior tensile strength.
4. Strong electrical properties.
Product Construction
Properties
BACKING MATERIAL |
|
PTFE Film |
||
ADHESIVE |
|
Silicone |
||
COLOR |
|
Brown |
||
Flammability Rating |
|
Passes UL-510 Flame Test |
||
|
|
Imperial |
|
Metric |
Total Tape Thickness |
|
3.9 mils |
|
0.10 mm |
Tensile Strength |
|
37.7 lbs/in |
|
128 N/19mm |
Elongation |
|
71% |
|
71% |
Dielectric Strength |
|
11,000 volts |
|
11.0 kV |
More Specification
Model |
Color |
Substrate |
Short-term heat resistance (℃) |
Continuous use temperature(℃) |
||
Thickness (mm) |
Width(mm) |
Length (m) |
||||
NO.923S |
Orange |
0.10 |
38 |
33 |
-50/300 |
-50/250 |
NO.923S |
Orange |
0.10 |
50 |
33 |
-50/300 |
-50/250 |
